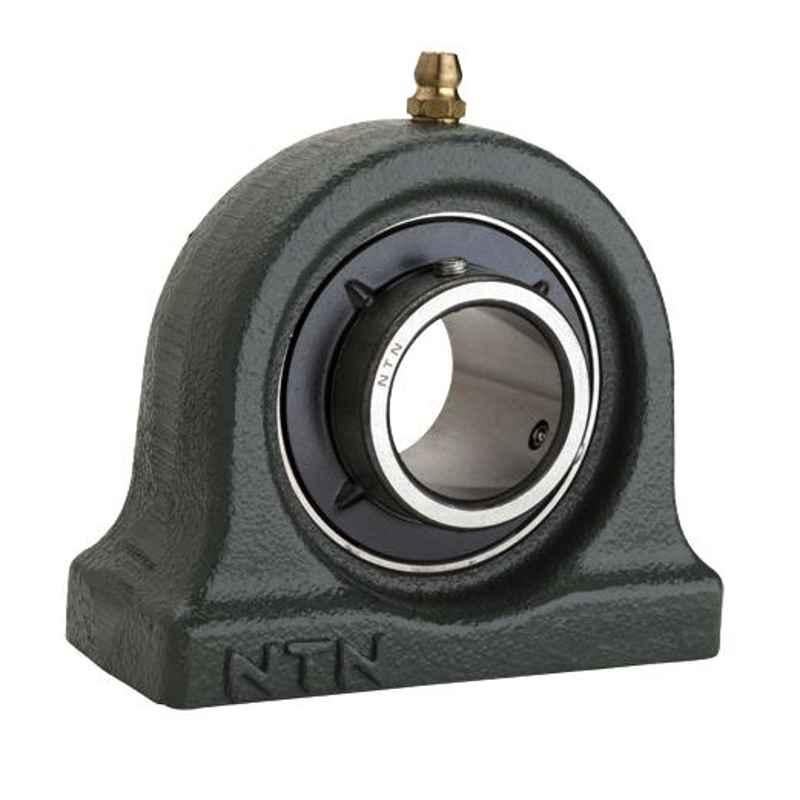

NTN 55mm Set Screw Type Cast Housing Pillow Block Unit UCP211D1

₹2,936 (Incl. of all taxes)

₹2,488 ₹448 GST

MRP ₹4,921 40% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	NTN
Base Width	60 mm
Bearing Number	UC211D1
Bearing Type	Ball Bearing
Bolt Size	M16
Centre Distance Between Bolt Holes	171 mm
Hole Diameter	20 mm
Housing Material	Cast Iron
Housing Number	P211D1
Locking Device	Set Screw
Overall Height	126 mm
Overall Length	219 mm
Shaft Diameter	55 mm
Shape	Pillow
Top Width	55.6 mm
Unit Number	UCP211D1
Weight	3.5 kg
Manufacturer Details	1-3-17, Kyomachibori, Nishi-ku, Osaka 550-0003, Japan
Packer Details	1-3-17, Kyomachibori, Nishi-ku, Osaka 550-0003, Japan
Importer Details	Shop No 104, Tip Top Plaza, Xlo Point, Ambad, Nashik, Maharashtra-422010, India
Common/Generic Name	Pillow Block Unit
Dimensions LxWxH	7x12.5x2.4 cm
Weight	0.3 kg

Show All Specifications

Product Details

The NTN 55mm Set Screw Type Cast Housing Pillow Block Unit, UCP211D1 is a reliable and durable solution for supporting heavy loads. This pillow block unit falls under the category of Pillow Block Units, known for their stability and versatility.

With a bolt size of M16, this unit ensures a secure and stable fit. The weight of 3.5 kg indicates its robustness and ability to handle demanding applications. The housing number, P211D1, further assures its compatibility and interchangeability with other components.

Featuring a hole diameter of 20 mm, this pillow block unit is designed to accommodate a wide range of shaft sizes. The unit number, UCP211D1, simplifies identification and facilitates easy replacement. The locking device, set screw, ensures a snug fit and prevents any unwanted movement or vibration.

Equipped with a ball bearing type, this unit provides smooth and efficient operation even under heavy loads. The NTN brand is synonymous with quality and reliability, making this pillow block unit a trusted choice for various industrial applications. In summary, the NTN 55mm Set Screw Type Cast Housing Pillow Block Unit, UCP211D1, is a high-performance product that guarantees durability and stability.
