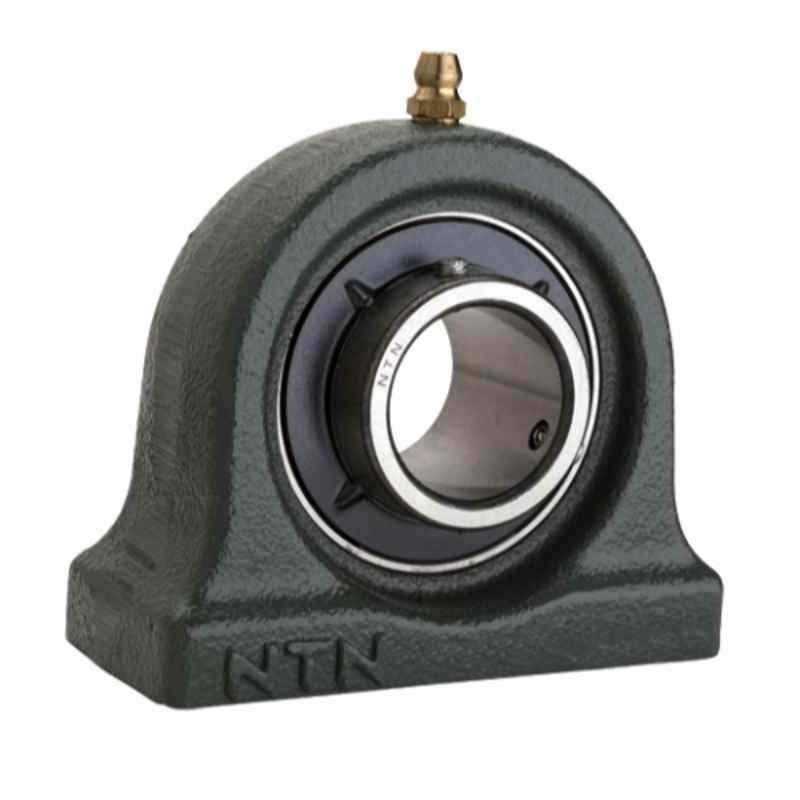

NTN 45x120x49.2mm Cast Iron Narrow Ball Bearing Pillow Block Unit, UCUP209D1

₹3,880 (Incl. of all taxes)

₹3,694 ₹186 GST

MRP ₹6,313 38% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	NTN
Bearing Number	UCUP209D1
Bearing Type	Ball Bearing
Bore Diameter	45 mm
Dynamic Load	32.50 kN
End Type	Open
Material	Cast Iron
Outer Diameter	120 mm
Seal Material	Nitrile Rubber
Seal Type	Contact
Static Load	20.40 kN
Style	Narrow
Temperature	-40 to 120 deg C
Type	Pillow Block Unit
Weight	2.1 kg
Manufacturer Details	1-3-17, Kyomachibori, Nishi-ku, Osaka 550-0003, Japan
Packer Details	1-3-17, Kyomachibori, Nishi-ku, Osaka 550-0003, Japan
Importer Details	Shop No 104, Tip Top Plaza, Xlo Point, Ambad, Nashik, Maharashtra-422010, India
Common/Generic Name	Pillow Block Unit
Dimensions LxWxH	7x12.5x2.4 cm
Weight	0.3 kg

Show All Specifications

Product Details

NTN 45x120x49.2mm Cast Iron Narrow Ball Bearing Pillow Block Unit, UCUP209D1 is a premium quality product from NTN . Moglix is a well-known ecommerce platform for qualitative range of Pillow Block Units. All NTN 45x120x49.2mm Cast Iron Narrow Ball Bearing Pillow Block Unit, UCUP209D1 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture NTN 45x120x49.2mm Cast Iron Narrow Ball Bearing Pillow Block Unit, UCUP209D1, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. NTN products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of NTN Pillow Block Units .
