Schneider Electric Modicon TM3 4 Analogue Input & 2 Output Screw Module, TM3AM6

Hover to Zoom

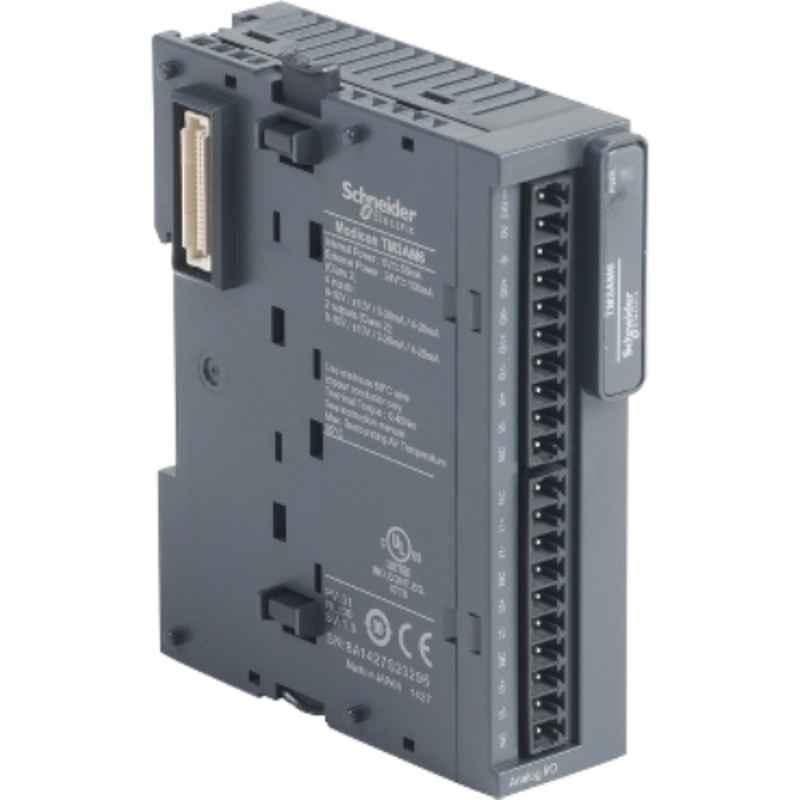

Schneider Electric Modicon TM3 4 Analogue Input & 2 Output Screw Module, TM3AM6

Name: Schneider Electric Modicon TM3 4 Analogue Input & 2 Output Screw Module, TM3AM6
Brand: Schneider Electric
SKU: MSNQ94PVXZJEK0
Price: 26525 INR
Availability: OutOfStock

₹26,525 (Incl. of all taxes)

₹22,478 + ₹4,047 GST

MRP ₹45,308 41% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Screw-terminal Connections Ensure Secure, Reliable Wiring.
Supports 4 Analogue Inputs & 2 Outputs for Versatile Signal Handling.
Compact Design Fits Neatly into TM3 System Racks for Streamlined Integration.

Product Specifications

Brand	Schneider Electric
Additional Details	Pollution Degree: 2
Ambient Temperature	For Operation: Horizontal Installation: -10 to 35 deg C, Vertical Installation: -10 to 55 deg C For Storage: -25 to 70 deg C
Certifications	CE, UKCA, RCM, EAC, cULus & cULus HazLoc
Current	45 mA & 55 mA at 5V DC
Frequency	2-25 MHz
Input Impedance	Load: Voltage: >=1 kOhm & Current: <=50 Ohm
Model	TM3AM6
Number of Inputs	4
Number of Outputs	2
Operating Altitude	0-2000 m
Protection Class	IP20
Resistance	To Electrostatic Discharge: 8 kV in Air Conforming to IEC 61000-4-2 & 4 kV on Contact Conforming to IEC 61000-4-2
Resolution	12 bits (11 bit + Sign)
Series	Modicon TM3
Shock Resistance	15 gn for 11 ms
Standards	EN/IEC 61131-2 & EN/IEC 61010-2-201
Vibration Resistance	3.5 mm at 5-8.4 Hz on DIN rail & 3 gn at 8.4-150 Hz on DIN rail
Country of origin	India
Manufacturer Details	Schneider Electric, Cyber City, DLF Tower 10th Rd, DLF Cyber City, DLF Phase 2, Sector 24, Gurugram- 122002
Packer Details	Schneider Electric, Cyber City, DLF Tower 10th Rd, DLF Cyber City, DLF Phase 2, Sector 24, Gurugram- 122002
Common/Generic Name	Analog Input/Output Module
Dimensions LxWxH	7.5x10.5x12.5 cm
Weight	0.2 kg

Show All Specifications

Product Details

The Schneider Electric Modicon TM3 4 Analogue Input & 2 Output Screw Module, TM3AM6, is a high-performance expansion module designed to enhance the functionality of Modicon M221, M241, and M251 controllers. Featuring four analog inputs and two analog outputs, this module supports a wide range of signal types including voltage and current, making it ideal for applications requiring precise monitoring and control of process variables. Its screw terminal design ensures secure and reliable connections in industrial environments. The TM3AM6 module enables seamless integration and flexible configuration via EcoStruxure Machine Expert (SoMachine) software, simplifying setup and programming. With compact dimensions and DIN rail mounting compatibility, it saves valuable panel space while maintaining robust performance. Engineered to meet stringent industrial standards, this module supports real-time data acquisition and analog signal processing, contributing to increased system efficiency and control accuracy in automation systems.
