Schneider Electric Modicon TM3 8 Relay Output, Screw Discrete Output Module, TM3DQ8R

Hover to Zoom

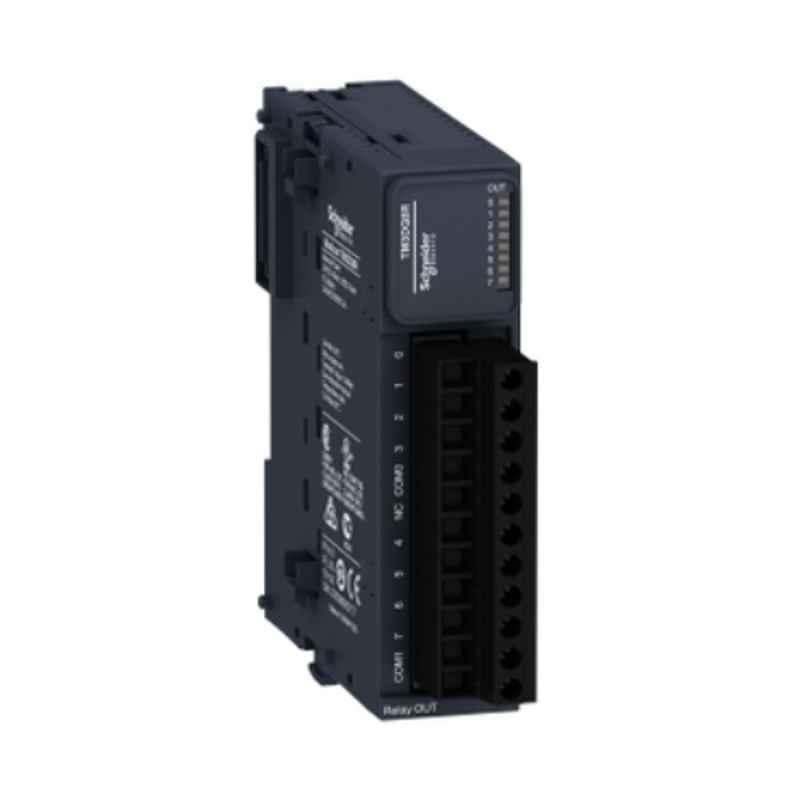

Schneider Electric Modicon TM3 8 Relay Output, Screw Discrete Output Module, TM3DQ8R

Name: Schneider Electric Modicon TM3 8 Relay Output, Screw Discrete Output Module, TM3DQ8R
Brand: Schneider Electric
SKU: MSNG9VNY4V7DKP
Price: 10580 INR
Availability: OutOfStock
Rating: 4.6 (5 reviews)

4.6

(5 Reviews)

₹10,580 (Incl. of all taxes)

₹8,966 + ₹1,614 GST

MRP ₹18,073 41% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Offers 8 Reliable Relay Outputs for AC & DC Load Control.
Screw Terminals & LED Indicators for Easy Wiring & Monitoring.
Durable Design with 2a Output Per Channel & High Electrical Isolation.

Product Specifications

Brand	Schneider Electric
Additional Details	Pollution Degree: 2
Ambient Temperature	For Operation: Horizontal Installation: -10 to 35 deg C, Vertical Installation: -10 to 55 deg C For Storage: -25 to 70 deg C
Certifications	CE, UKCA, RCM, EAC, cULus & cULus HazLoc
Current	40 mA at 24V DC
Frequency	2-25 MHz
Model	TM3DQ8R
Number of Outputs	Relays: 8
Operating Altitude	0-2000 m
Output Current	2000 mA for Relay Output
Output Voltage	240 V AC & 30 V DC
Protection Class	IP20
Resistance	To Electrostatic Discharge: 8 kV in Air Conforming to IEC 61000-4-2 & 4 kV on Contact Conforming to IEC 61000-4-2
Response Time	Turn On: 10 ms & Turn Off: 5 ms
Series	Modicon TM3
Shock Resistance	15 gn for 11 ms
Standards	EN/IEC 61131-2 & EN/IEC 61010-2-201
Country of origin	India
Manufacturer Details	Schneider Electric, Cyber City, DLF Tower 10th Rd, DLF Cyber City, DLF Phase 2, Sector 24, Gurugram- 122002
Packer Details	Schneider Electric, Cyber City, DLF Tower 10th Rd, DLF Cyber City, DLF Phase 2, Sector 24, Gurugram- 122002
Common/Generic Name	Discrete Output Module
Dimensions LxWxH	7.5x10.5x12.5 cm
Weight	0.2 kg

Show All Specifications

Product Details

The Schneider Electric Modicon TM3DQ8R is a versatile 8-point discrete output module designed to seamlessly integrate with the Modicon TM3 I/O system, supporting M221, M241, M251, and M262 logic controllers. It features eight relay outputs with normally open contacts, each rated for 2A at 240V AC or 30V DC, making it ideal for controlling a wide range of industrial devices such as actuators, valves, and other automation equipment. The module supports both positive and negative logic configurations, offering flexibility for diverse application requirements. Equipped with removable screw terminals featuring a 5.08 mm pitch, it allows secure and easy wiring. Built for durability, the TM3DQ8R offers a mechanical lifespan of 20 million cycles and comes with an IP20 protection rating. Designed for installation on standard top-hat rails and optional panel mounting, it complies with CE, cULus, and C-Tick certifications and meets EN/IEC 61010-2-201 and EN/IEC 61131-2 safety standards, making it a reliable, high-performance solution for industrial automation output control.
