SKF 32x46x43mm Cast Iron Imported Square Flange Ball Bearing Unit, FYTB1.1/4TF

₹4,128 (Incl. of all taxes)

₹3,500 + ₹628 GST

MRP ₹5,074 18% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Product Specifications

Brand	SKF
Additional Details	Sub Type: Imported Fatigue Load Limit: 0.655 kN Tightening Torque: 6.5 Nm Hexagonal Key Size: 3.969 mm Diameter for Attachment Bolt: 12 mm
Basic Static Load	15.3 kN
Diameter	Inner: 32 mm Outer: 46 mm
Dynamic Load	25.5 kN
Item Code	FYTB1.1/4TF
Limiting Speed	5300 rpm
Material	Cast Iron

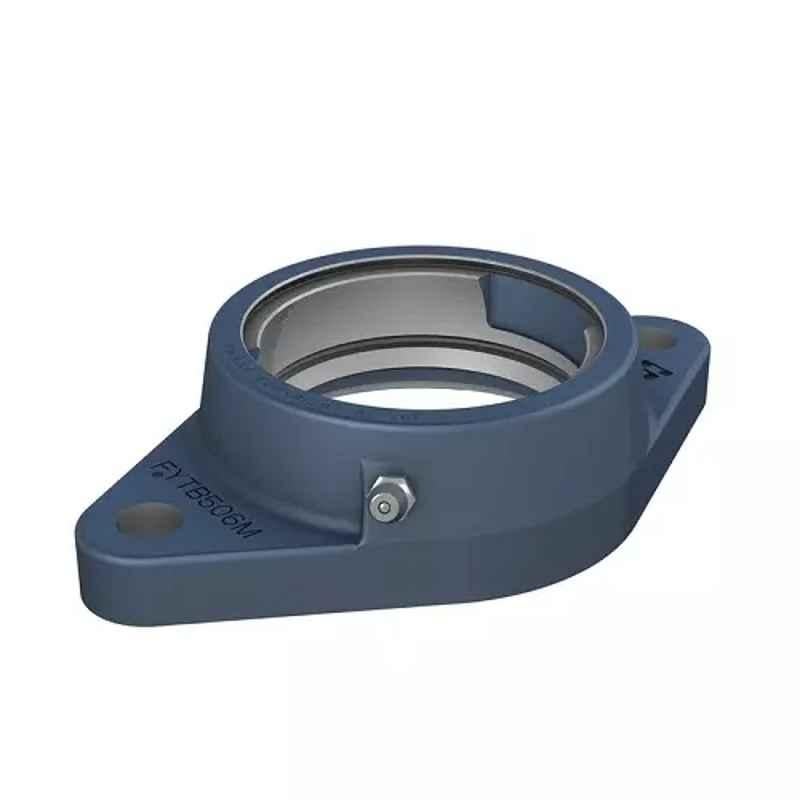

Notes	Images for Reference Pupose Only
Standard	ISO
Thread Size	5/16-24 UNF
Weight	1.25 kg
Width	43 mm
Country of origin	India
Manufacturer Details	SKF India Limited, Chinchwad, Pune, Maharashtra, 411 033, India
Packer Details	SKF India Limited, Chinchwad, Pune, Maharashtra, 411 033, India
Importer Details	SKF India Limited, Chinchwad, Pune, Maharashtra, 411 033, India
Common/Generic Name	Flange Ball Bearing Unit
Dimensions LxWxH	32x46x43 mm
Weight	1.25 kg

Show All Specifications

Product Details

Introducing the SKF 32x46x43mm Cast Iron Imported Square Flange Ball Bearing Unit, FYTB1.1/4TF – a top-notch product designed to excel in the field of bearing block applications. Manufactured by the renowned brand SKF, this high-quality unit boasts a dynamic load capacity of 25.5 kN, ensuring optimal performance even under heavy loads. With its standard ISO compliance, you can trust in its reliability and durability. Weighing just 1.25 kg, this lightweight unit is easy to handle and install. The basic static load capacity of 15.3 kN further strengthens its ability to withstand pressure. Its thread size of 5/16-24 UNF facilitates secure fastening. Please note that the product images provided are for reference purposes only. Thanks to its impressive limiting speed of 5300 rpm, this ball bearing unit guarantees efficient operation. Upgrade your machinery with the SKF 32x46x43mm Cast Iron Imported Square Flange Ball Bearing Unit, FYTB1.1/4TF, and experience top-tier performance and reliability.
