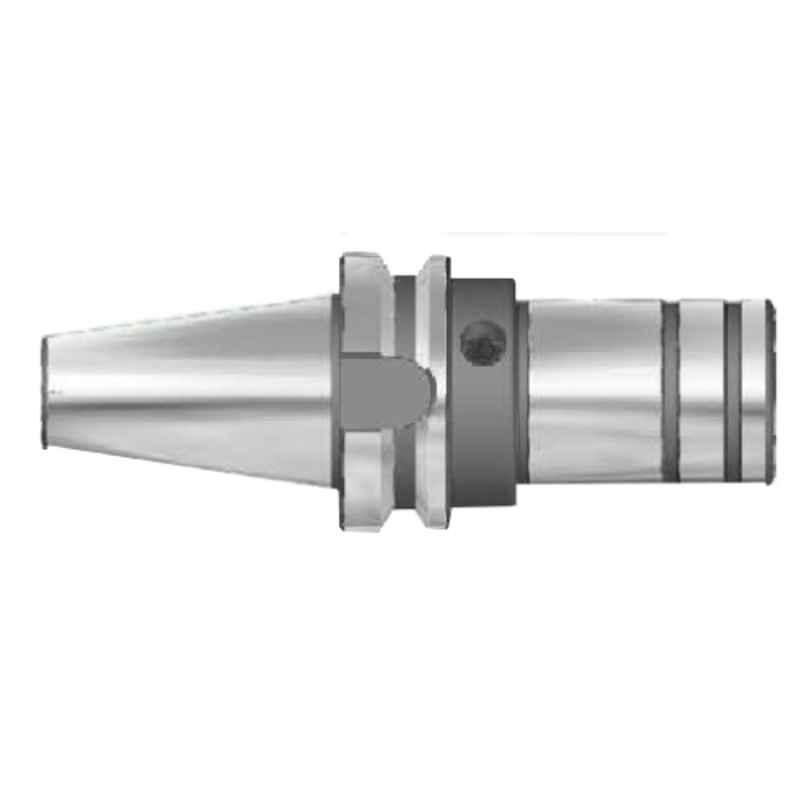

SMS BT50/HCS 32-125 Hydraulic Chuck Collet, 68143225

AVAILABLE ON REQUEST

About This Product

Key Features

Taper Angle Class AT2.
Maximum Run-Out of the Face & Dia. to the External Taper 0.005 mm at Distance of 3 XD, Balanced to G2.5 at 25000rpm for 40 Shanks & Balanced to G2.5 at 25000rpm for 50 Shanks.

Product Specifications

Brand	SMS
Nominal Diameter	32 mm
Size	32-125 mm
Additional Details	Diameter 1: 52 mm Length 1: 63 mm Length 2: 87 mm G: M8x1
Length	125 mm
Model	BT50/HCS 32-125
Notes	Images are for Reference Purposes Only Please Make Sure to Use SMS Make Torque Key for Tightening & Do Not Use Allen Key to Tighten
Outer Diameter	60 mm
Part Number	68143225
Country of origin	India
Manufacturer Details	Block# 135/3, Bileshwarpura, P.O. Chattral, Tal. Kalol, Dist. Gandhinagar, Ahmedabad, Gujarat 382729, India
Packer Details	Block# 135/3, Bileshwarpura, P.O. Chattral, Tal. Kalol, Dist. Gandhinagar, Ahmedabad, Gujarat 382729, India
Common/Generic Name	Collet
Dimensions LxWxH	50x45x50 cm
Weight	15 kg

Show All Specifications

Product Details

The SMS BT50/HCS 32-125 Hydraulic Chuck Collet, part number 68143225, is a high-quality collet designed for precision machining applications. With a nominal diameter of 32 mm and a size range of 32-125 mm, this collet offers versatility and accuracy. The collet is specifically designed for use with the SMS brand and is compatible with the BT50/HCS 32-125 model. It features an outer diameter of 60 mm and a diameter of 1 at 52 mm. Please note that the images provided are for reference purposes only. This Hydraulic Chuck Collet is ideal for professionals in need of reliable and efficient machining solutions.

Browse through the extensive list of Collets at Moglix. Shop online for other SMS Collets. available at Moglix in the lowest price range.
