Is it suitable for live events?

Yes, its compact design and robust build make it ideal for live performances and events.

Home
IT & Electronics
DJ Instruments & Equipment
DJ Mixers

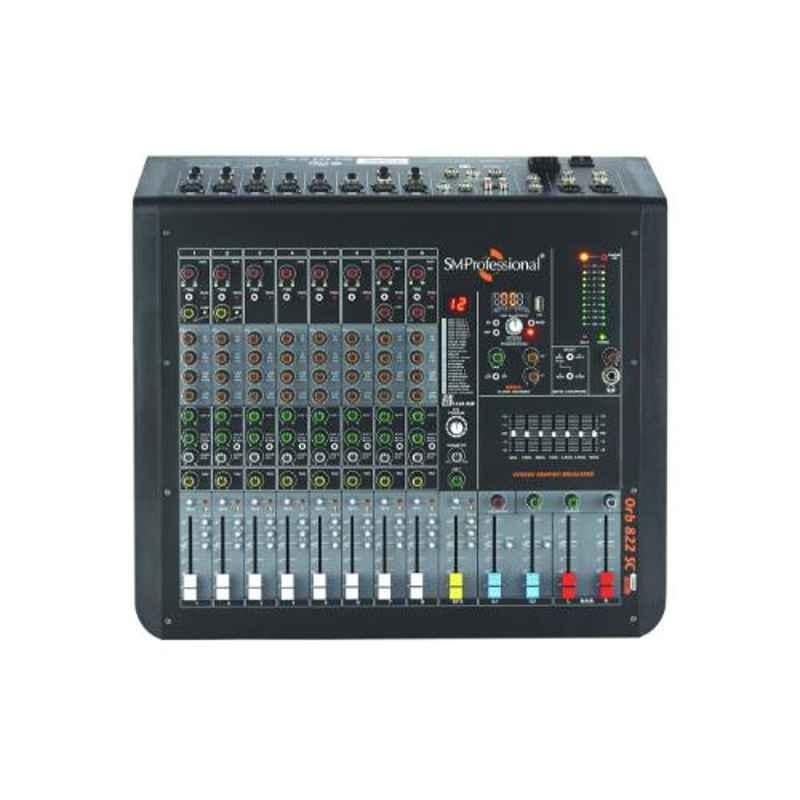

Studiomaster Professional 20Hz-20kHz 8 Channel Compact DJ Mixer, Orb 822 SC

Studiomaster Professional 20Hz-20kHz 8 Channel Compact DJ Mixer, Orb 822 SC

Hover to Zoom

Studiomaster Professional 20Hz-20kHz 8 Channel Compact DJ Mixer, Orb 822 SC

Name: Studiomaster Professional 20Hz-20kHz 8 Channel Compact DJ Mixer, Orb 822 SC
Brand: Studiomaster
SKU: MSNRKRE2G7P89N
Price: 41965 INR
Availability: InStock
Rating: 4.6 (5 reviews)

4.6

(5 Reviews)

₹41,965 (Incl. of all taxes)

₹35,563 ₹6,402 GST

MRP ₹55,000 23% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.

Get at

₹41,865

with Coupon & Offers

Extra ₹100 OFF

All Coupons & Offers

India’s Leading B2B Online Store

4.7

Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

Money Back

Genuine Product

Easy Exchange

Get GST Invoice

Secure Payments

365 Days Help Desk

Moglix Insights

About This Product

Key Features

Dual Functionality of Playback & Recording on a Pen Drive or on a PC VIA USB Audio Interface, One Knob Compression, DSP-based Multi-EFX Processor & a Host of Professional-grade Features for Live, Install & Recording Application.
Mono-stereo Inputs for Full Flexibility, Gain with Ultra Low-noise Preamps with Wide Headroom & Dynamic Range.
One Knob Compressor on 2 Channels, Built-in Multi-EFX Processor with 24 DSP Presets & Editable Parameters.
Ergonomic Angled-design for Better Visibility, Clutter-free Rear Panel Input & Output Connectivity.
Provisions to Route EFX to Monitor VIA AUX 1, Dual USB Audio Interface with Plug & Play Connectivity for Recording & Playback Using a PC, USB Mp3 Media Player & Recorder with Bluetooth.
Level Control, 2-band EQ with Internal/external Media Input Selection, 4-Band EQ on All Inputs, Insert (Send/return) on First 3 Mono Channels & Master Output.
3 AUX Sends (2 Pre/Post & 1 Post) with Stereo Aux Returns, 2 Sub Groups with Individual 1/4 inch Outputs, Mute, Solo, Group (G1-g2) & Main (L-R) Routing Per Channel.
Peak, Comp, Mute & Solo LEDs Per Channel, Stereo RCA Input & Record Output, 1/4 inch Headphone Output With Level Control, Globally Switched +48V Phantom Power Supply, Responsive 60mm Faders, Dual 10-segment LED Meter for Main, Group & Solo Outputs.

Show All Key Features

Product Specifications

Brand	Studiomaster
Additional Details	Nominal Gain (Mic, Line & Stereo Line): 60 dB, 40 dB & 20 dB Max Gain (Mic, Line & Stereo Line): 80 dB, 60 dB & 40 dB Stereo Line Min Gain : +10dB Stereo Line Max Gain: -20dB AUX Return Nominal & Max: -10 dB & +30 dB Insert In & Out (Nominal & Max): 0 dB (0.775V RMS) & +20 dB (7.75V RMS) Total Harmonic Distortion: < 0.02% Mono MIC (Hi, Hi-Mid, Low-Mid & Low): 15 dB at 12 kHz & 2.5 kHz, 400 Hz & 80 Hz Stereo Line (Hi / Hi-Mid / Low-Mid / Low): 15 dB at 12 kHz, 2.5 kHz, 400 Hz & 80 Hz
Frequency Response	20 Hz to 20 kHz
Impedance	Mic Input: 5 KΩ Balanced Line Input Impedance: 20 KΩ Balanced & 10 KΩ Unbalanced
Item Code	Orb 822 SC
Mic Input	Max Gain: -60 dB Min Gain: -10 dB EIN: -128dB
Number of Channels	8
Output	Main: 7-Band Stereo Graphic Equalizer Main Output Nominal & Max: 0 dB (0.775V RMS) & +20 dB (7.75V RMS)
Output Connection	Balanced XLR & 1/4 inch Jack Main Outputs
Country of origin	India
Manufacturer Details	Audio Plus, Gala No. 4 & 5 , Ground floor, Gundivali, Indian corporation, Bhiwandi- 421302
Packer Details	Audio Plus, Gala No. 4 & 5 , Ground floor, Gundivali, Indian corporation, Bhiwandi- 421302
Common/Generic Name	Mixer
Dimensions LxWxH	50x49x16 cm
Weight	6.5 kg

Show All Specifications

Product Details

The Studiomaster Professional Orb 822 Sc is A High-Performance 8-Channel Compact Mixer Designed to Meet the Demands of Professional Audio Environments. with A Wide Frequency Response Range of 20Hz to 20Khz, this Mixer Ensures Pristine Audio Quality Across the Full Spectrum of Sound. Its Robust Build & Compact Design Make It Ideal for Both Live Sound & Studio Applications, Providing Versatility & Ease of Use. the Orb 822 Sc Features Eight Low-Noise, High-Gain Microphone Preamps That Deliver Exceptional Clarity & Detail, While Its Intuitive Layout Ensures Effortless Operation. Each Channel is Equipped with A 3-Band Eq, Allowing for Precise Tonal Adjustments, & A Comprehensive Array of Controls Including Auxiliary Sends, Pan, & Level Faders. the Mixer Also Includes Built-In Effects & A Usb Interface for Direct Recording & Playback, Enhancing Its Functionality for Modern Audio Production Needs. Its Rugged Construction & Reliable Performance Make It A Valuable Tool for Sound Engineers & Musicians Seeking A Dependable Mixer That Doesn�T Compromise on Quality or Features. the Studiomaster Orb 822 Sc Combines Professional-Grade Audio with User-Friendly Controls, Making It An Excellent Choice for Anyone Looking to Elevate Their Sound Experience.
