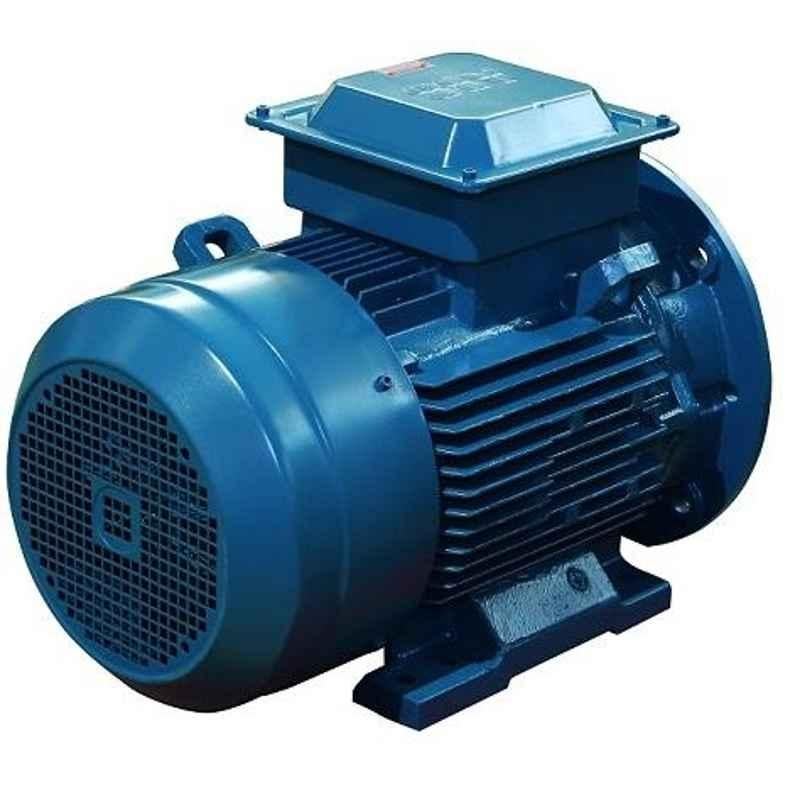

ABB M2BAX80MC4 IE3 3 Phase 0.55kW 0.75HP 415V 4 Pole Foot Mounted Cast Iron Induction Motor, 3GBA082330-HSDIN

₹11,011 (Incl. of all taxes)

₹9,329 ₹1,682 GST

MRP ₹29,500 62% OFF

AVAILABLE ON REQUEST

Moglix Insights

ABB is one of the top brand in general purpose motors, preferred by 1% of the users

14% of the users prefer general purpose motors in ₹11000-12000 price range

About This Product

Product Specifications

Brand	ABB
Motor Power	0.75 HP
Mounting type	Foot Cum Flange Mounted
Power Rating	0.55 kW
Ambient Temperature	50°C
Body Material	Cast Iron
Class of insulation	F Class
Efficiency	IE3
Frame Size	80 mm
Frequency	50 Hz (±5%)
Item Code	3GBA082330-HSDIN
Model	M2BAX80MC4
Motor Winding	Copper
Number of Poles	4
Protection Class	IP55
Speed	1500 rpm
Voltage	415 V
Phase	Three Phase
Standards	CE, IEC60034-1, Ref:IS12615:2011
Warranty	12 Months from Dispatch
Weight	25 kg
Country of origin	India
Manufacturer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village,Kasaba Hobli, Bangalore North, 562123-Bangalore-Karnataka, Phone: +91-8448233444
Packer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village,Kasaba Hobli, Bangalore North, 562123-Bangalore-Karnataka, Phone: +91-8448233444
Common/Generic Name	Induction Motor
Dimensions LxWxH	14x9x10.5 inch
Weight	25 kg

Show All Specifications

Product Details

ABB M2BAX80MC4 IE3 3 Phase 0.55kW 0.75HP 415V 4 Pole Foot Mounted Cast Iron Induction Motor, 3GBA082330-HSDIN is a premium quality product from ABB . Moglix is a well-known ecommerce platform for qualitative range of General Purpose Motors. All ABB M2BAX80MC4 IE3 3 Phase 0.55kW 0.75HP 415V 4 Pole Foot Mounted Cast Iron Induction Motor, 3GBA082330-HSDIN are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture ABB M2BAX80MC4 IE3 3 Phase 0.55kW 0.75HP 415V 4 Pole Foot Mounted Cast Iron Induction Motor, 3GBA082330-HSDIN, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. ABB products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of ABB General Purpose Motors .
