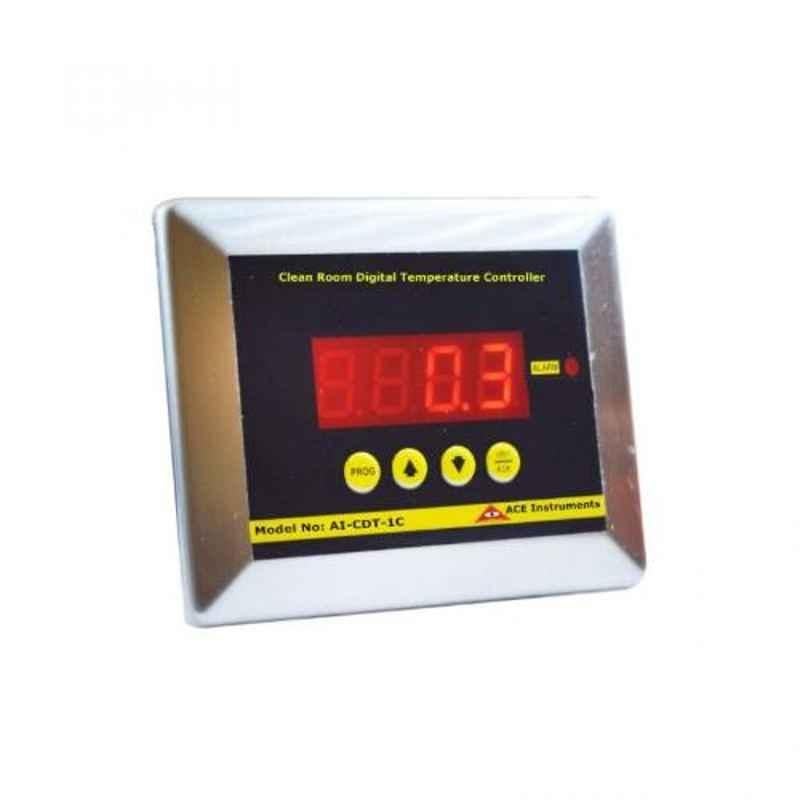

ACE Instruments AI-CDT Clean Room Digital Temperature Controller

Name: ACE Instruments AI-CDT Clean Room Digital Temperature Controller
Brand: Ace Instruments
SKU: MSNRKREJLYD39N
Price: 8745 INR
Availability: OutOfStock

₹8,745 (Incl. of all taxes)

₹7,406 ₹1,339 GST

MRP ₹9,186 4% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Ace Instruments Make Clean Room Digital Temperature Controller is Especially Expected for Showing the Temperature of a Room, By Technique for A Planned Temperature Sensor or an External Temperature Sensor.
Clean Room Digital Temperature Controller AI-CDT is Intended for Least Cabling & Simple Flush Mounting Onto Clean Room Modular Dividers or Block Divider Mounting.
The Temperature Sensor is Accessible in 2 Choices: Built-in Type Flushed to the Front Plate or Outer Wired Sensor to be Dropped in AHU or Inside the Room According to the Hot Spot-Cold Spot Mapping.
The Instrument Accompanies Multi-Level Password Security According to Directions Spread Out in USFDA 21 CFR Section 11 Consistence, to Guarantee No Unapproved Staff Can Change the Parameter Programming.

Show All Key Features

Product Specifications

Brand	Ace Instruments
Accuracy	±0.1°C, 1 Count
Applications	Clean Room & Hospitals
Buzzer	Integrated Buzzer for Alarm in Case of Process Violation
Calibration	Provided Along with & Valid for 1 Year, Traceable to National Standards
Communication	Optional RS-485 Modbus Protocol Communication for BMS-SCADA
Display	4 Digit, 7 Segment, Large 1 inch High Red LED Display
Enclosure	M.S Powder Coated Body with Stainless Steel Front Flush Plate For
Model No	AI-CDT
Relay Output	1 Relay Output ( NO/CO/NC ) , Rated 5 Amp
Sensitivity	350 mA
Sensor Type	Integrated or external wired Class A RTD Pt-100 Sensor
Setting	By 4 keys on the front Stainless Steel Panel Plate
Temperature	-30 to 60 deg C
Voltage	24 V DC
Country of origin	India
Manufacturer Details	INSTRUKART HOLDINGS, 18, Street 1A,Czech Colony Sanath Nagar , Hyderabad, Telangana-500018, India , Phone: +91-8448233444
Packer Details	INSTRUKART HOLDINGS, 18, Street 1A,Czech Colony Sanath Nagar , Hyderabad, Telangana-500018, India , Phone: +91-8448233444
Common/Generic Name	Temperature Controller
Dimensions LxWxH	96x96x110 mm
Weight	1 kg

Show All Specifications

Product Details

ACE Instruments AI-CDT Clean Room Digital Temperature Controller is a premium quality product from Ace Instruments . Moglix is a well-known ecommerce platform for qualitative range of Thermo Hygrometer. All ACE Instruments AI-CDT Clean Room Digital Temperature Controller are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture ACE Instruments AI-CDT Clean Room Digital Temperature Controller, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Ace Instruments products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Ace Instruments Thermo Hygrometer .
