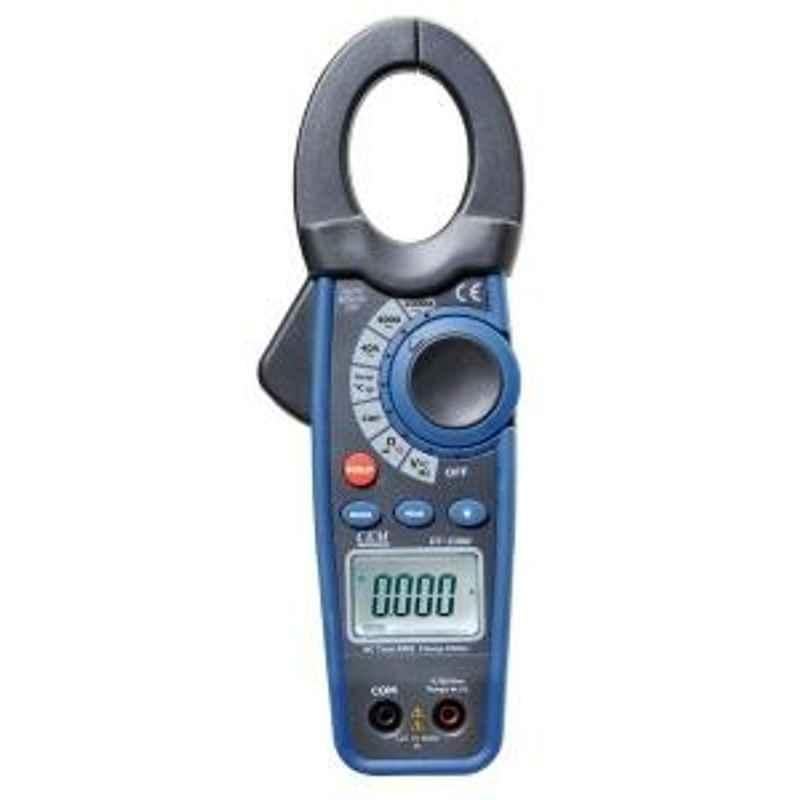

CEM DT-3380 Digital AC Clamp Meter True RMS 1000 A 600 V

₹20,507 (Incl. of all taxes)

₹17,378 ₹3,129 GST

MRP ₹24,330 15% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Full Function Digital Clamp Meter with Built-in 50,000 Count Multimeter.
True RMS for accurate readings of non-sinusoidal waveforms..
Dual Type K Thermocouple Input with Differential Temperature Function (T1, T2, T1-T2)..
Built-In Non-Contact Voltage Detector.
Flash Light in the Clamp Jaw to access dark and tight areas.
Data Hold Plus Peak Hold of Current Surges During Motor Startup.
Rugged Double Molded Housing.
AC/DC μA Multimeter Function for HVAC Flame Rod Current Measurements.
Auto-ranging with Manual Override .
Max/Min Record Functions and Relative Measurement functions..
Low Battery Indicator and Auto Power Off.
Data Hold, Peak Hold, MAX/MIN record functions.
Over Range Indication.
Continuity and Diode Test.
Peak Detectors.
AC Bandwidth 50 to 400 Hz.

Show All Key Features

Product Specifications

Brand	CEM
AC Current Accuracy	±(2.5 % ± 5 Digits)
AC Current Range	0-1000 A
AC Current Resolution	0.01 A / 0.1 A
AC Voltage Accuracy	±(1.0 % ± 30 Digits)
AC Voltage Range	500 mV-600 V
Capacitance Accuracy	±(3.5 % ± 10 Digits)
Capacitance Range	500 nF-5 mF
Customer Care Number	91-33-22151376/22159759
DC Voltage Accuracy	±(1.0 % ± 4 Digits)
DC Voltage Range	500 mV-600 V
Dimensions	230x76x40 mm
Display	LCD Display
Display Counts	50000
Frequency	50 Hz-10 MHz
Frequency Accuracy	±(0.3 % ± 2 Digits)
Includes	Testing Leads , Test Certifcates , Soft Carrying Case , Instructional Manual , Temperature Probe and Battery
Jaw Opening Size	49 mm
Max. AC Current Range	601-1000 A
Max. AC Voltage Range	0-600 V
Max. DC Voltage Range	0-600 V
Model No	DT-3380
Operating Environment	5° to 40°C
Power	9 V Battery
Relative Humidity	< 80% RH
Resistance Accuracy	±(1.0 % ± 5 Digits)
Resistance Range (Ohm)	0-50 MΩ
Sensing	True RMS
Storage Environment	-20° to 60°C
Temperature Accuracy	±(1.0 % ± 2.5°C)
Temperature Range	-100° to 1000°C
Type of Product	Digital AC Clamp Meter
Weight	315 g
Country of origin	China
Manufacturer Details	Cem Instruments Headquater & Factory19Th Building, 5Th Region, Baiwangxin Industry Park,Songbai Road, Baimang, Xili, Nanshan, Shenzhen,China, 518108Tel: +86-755-27353188, Fax: +86-755-27653699
Packer Details	Cem Instruments Headquater & Factory19Th Building, 5Th Region, Baiwangxin Industry Park,Songbai Road, Baimang, Xili, Nanshan, Shenzhen,China, 518108Tel: +86-755-27353188, Fax: +86-755-27653699
Importer Details	Cem Instruments (India) Pvt. Ltd.32A, Ganesh Chandra Avenue, 4Th Floor, Kolkata-700013Tel: 033-22151376, 22159759Email: Info@Cem-Instrumets.In / Info@Cem-India.Comweb: Www.Cem-Instruments.In / Www.Cem-India.Com
Common/Generic Name	Clamp Meter
Dimensions LxWxH	230x76x40 mm
Weight	315 g

Show All Specifications

Product Details

CEM DT-3380 Digital AC Clamp Meter True RMS 1000 A 600 V is a premium quality product from CEM . Moglix is a well-known ecommerce platform for qualitative range of Clamp Meters. All CEM DT-3380 Digital AC Clamp Meter True RMS 1000 A 600 V are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture CEM DT-3380 Digital AC Clamp Meter True RMS 1000 A 600 V, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. CEM products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of CEM Clamp Meters .
