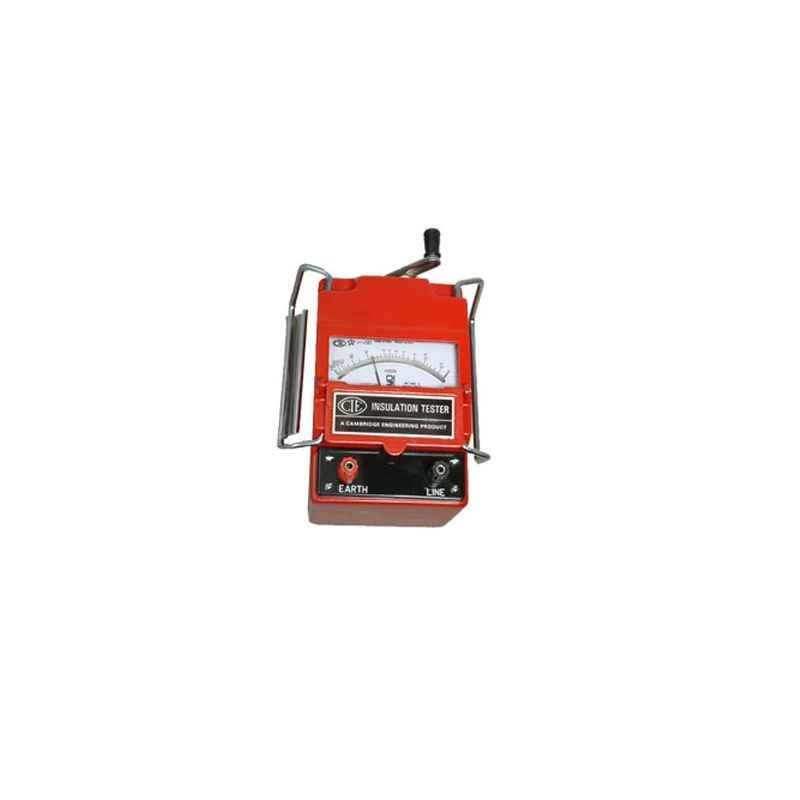

CIE 444 Hand Driven Generator Type Insulation Tester, 500V, 0-1000mOhm

5.0

₹6,879 (Incl. of all taxes)

₹5,829 ₹1,050 GST

MRP ₹10,030 31% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Housed in Anti- Magnetic Aluminium Body.
Metallic Flap Over Glass Window.
Silent Generator.
Graceful Appearance.
Accurate & Quick Response.
Confirms to Iss: 2992/1987.
High Sensitive Cross Coil Indicator.
Collapsible Driven Handle-Fold Back Flush Into Casing When Not in Use.
Chuck Nut Locking Arrangement to Prevent Anti Clock-Wise Rotation.
Wide & Anti -Parallax Mirror Scale (Model: Cie/444 & Cie/666).
Centrifugal Clutch (Governor) for Constant Output Voltage (Model: Cie/444 & Cie/666).
Guard Terminal & An Externally Accessible Infinity Adjuster are Provided for Instrument Having Insulation Range 1000 Megohms.

Show All Key Features

Product Specifications

Brand	CIE
Applications	Electrical Operating Machines Rotating Plant Equipment Stationary Apparatus Insulation Control Switching Equipment Distribution Networks Communication Cables Insulators Transformers Industrial Installations
Dimensions	110x128x195 mm
Item Code	CIE/444
Items in Pack	1 Piece
Material	Metal Body
Notes	Non-Returnable, Test Leads & Carrying Case at Extra Cost
Resistance	0-1000 MΩ
Rotation Speed	160 rpm
Specification	Confirms to IS: 2992-1987
Voltage	500 V
Weight	2.5 kg
Country of origin	India
Manufacturer Details	2nd floor, 32, ezra street, lla bazar, Room no-259 , Kolkata, West Bengal-700001, India , Phone: +91-8448233444
Packer Details	2nd floor, 32, ezra street, lla bazar, Room no-259 , Kolkata, West Bengal-700001, India , Phone: +91-8448233444
Common/Generic Name	Insulation Tester
Dimensions LxWxH	110x128x195 mm
Weight	2.5 kg

Show All Specifications

Product Details

CIE 444 Hand Driven Generator Type Insulation Tester, 500V, 0-1000mOhm is a premium quality product from CIE . Moglix is a well-known ecommerce platform for qualitative range of Insulation Testers. All CIE 444 Hand Driven Generator Type Insulation Tester, 500V, 0-1000mOhm are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture CIE 444 Hand Driven Generator Type Insulation Tester, 500V, 0-1000mOhm, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. CIE products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of CIE Insulation Testers .
