Is this power supply suitable for outdoor use?

No, it is designed for indoor use and should be kept in a dry, ventilated area.

Home
Security
CCTV Cameras
CCTV Accessories
CP Plus 16 Channel Power Supply, CP-DPS-PD16-12D

Hover to Zoom

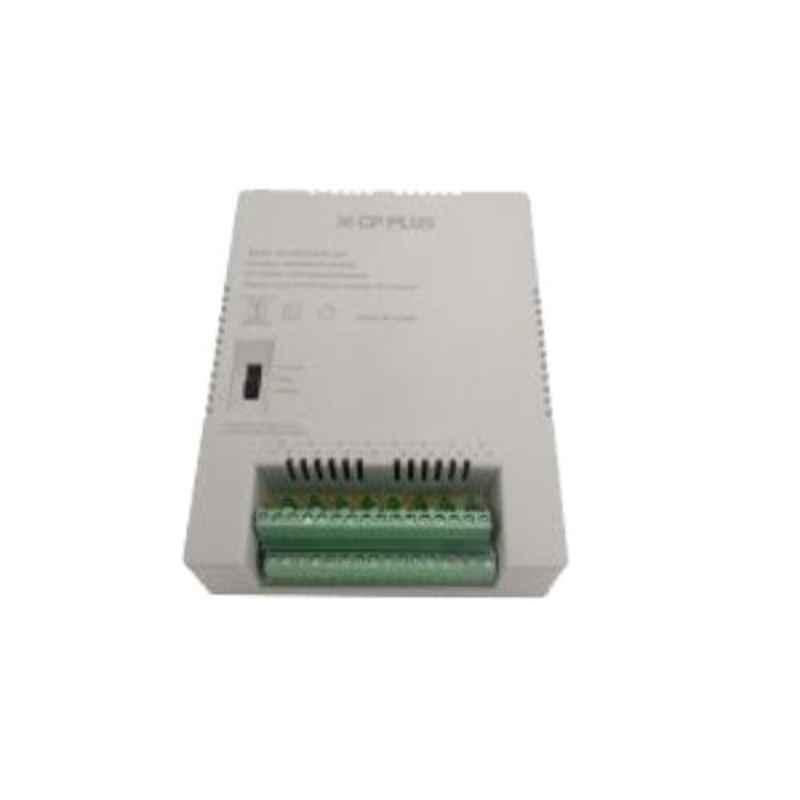

CP Plus 16 Channel Power Supply, CP-DPS-PD16-12D

Name: CP Plus 16 Channel Power Supply, CP-DPS-PD16-12D
Brand: CP Plus
SKU: MSNEKPQP087W52
Price: 1602 INR
Availability: OutOfStock

₹1,602 (Incl. of all taxes)

₹1,355 ₹247 GST

MRP ₹1,899 15% OFF

AVAILABLE ON REQUEST

Moglix Insights

CP Plus is one of the top brand in cctv accessories, preferred by 20% of the users

38% of the users prefer cctv accessories in ₹1000-2000 price range

About This Product

Key Features

Mtbf: 10000 hr, Mil-Hdbk-217F with Cable Compensation Switch.
Thermistor for Each Channel, Cooling By Free Air Convection & Plastic Housing.
Built-In Constant Current Limiting Circuit & 100% Full Load Built-In Test.

Product Specifications

Brand	CP Plus
Channel	Output: 16
Coefficient	Temperature: 10-500 Hz, 3G 10 min/1 Cycle & 60 min
Current	Inrush: Cold Start: 50 Amp & 220 V AC Leakage: <2 mA & 240 V AC Overload Rated Output: 110-200%
Current Range	0-8 Amp, 0-7.12 Amp & 0-6.4 Amp
Customer Care Number	8800952952 & Email Id: support@cpplusworld.com
Dimensions	186x130.5x39 mm
EAN	4250593435000
Efficiency	86%
Frequency	47-63 Hz
Humidity	20-90%
Indicator	LED
Item Code	CP-DPS-PD16-12D
Line Regulation	±1.0%, ±1.0% & ±1.0%
Load Regulation	±5.0%, ±5.0% & ±5.0%
Noise Level	Ripple: 120 mVp-p,135 mVp-p & 150 mVp-p
Overload Capacity	Rated Output: 110-200%
Rated Current	8 Amp, 7.12 Amp & 6.4 Amp
Rated Power	96 W
Short Circuit Breaking Capacity	Protection Type: Shut Down 0/P & Recovers Automatically After Fault Removed
Storage Temperature	-20 to 85 deg C
Timer	Set Up: 2500 m/s, 15 m/s at Full Load Hold Up: 35 m/s at Full Load
Voltage	12 V DC, 13.5 V DC & 15 V DC Range: 11.4-12.6 V, 12.82-14.17 V & 14.25-15.75 V 150-285 V AC
Warranty	1 Year
Weight	0.43 kg
Working Temperature	-20 to 45 deg C
Country of origin	India
Manufacturer Details	Aditya Infotech Ltd, A12 Sector 4 Noida, Telephone No: 0120-455556, Phone: +91-8448233444
Packer Details	Aditya Infotech Ltd, A12 Sector 4 Noida, Telephone No: 0120-455556, Phone: +91-8448233444
Common/Generic Name	Power Supply
Dimensions LxWxH	186x130.5x39 mm
Weight	430 g

Show All Specifications

Product Details

A CCTV camera is no longer a luxury but a necessity in today’s world where security is a top priority. The CP Plus 16 Channel Power Supply, model CP-DPS-PD16-12D, is an excellent and reliable choice for powering your surveillance system. A proper surveillance setup is the first and most crucial step in creating a secure environment, whether at home, in the office, or at a commercial establishment. This advanced CCTV system by CP Plus features a built-in motion sensor, making it highly effective in detecting any unusual movement. It also supports remote viewing, allowing you to monitor activities from anywhere through a smartphone or computer. The compact dimensions of 186x130.5x39 mm make it easy to install even in tight spaces. Despite its sturdy performance, it is incredibly lightweight at just 0.43 kg, making handling and mounting hassle-free. Suitable for both indoor and outdoor installations, this camera system is not just an expense—it’s a smart investment in safety and peace of mind.

Browse through the extensive list of CCTV Accessories at Moglix. Shop online for other CP Plus CCTV Accessories. available at Moglix in the lowest price range.
