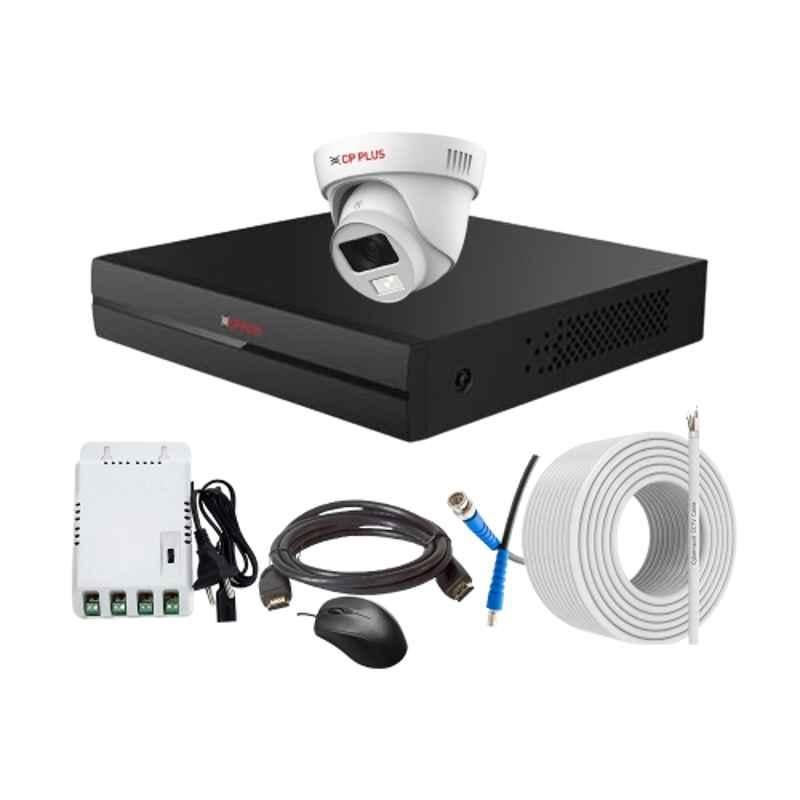

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Dome Camera, 4Ch SMPS, 70m Copper Cable & Connectors
₹6,399 (Incl. of all taxes)
₹5,422 ₹977 GST
MRP ₹14,109 54% OFF
Buy More & Save More
Qty 2
₹6,351 /pc
54% OFF
Qty 3
₹6,327 /pc
55% OFF
Qty 4 - 5
₹6,303 /pc
55% OFF
Qty 6 - 7
₹6,255 /pc
55% OFF
Qty 8+
₹6,207 /pc
56% OFF
Sign Up & Earn 10 Mogli Coins
& save extra money on your next purchase.
Get at
₹6,299
with Coupon & Offers
Extra ₹100 OFF
All Coupons & Offers
India’s Leading B2B Online Store
4.7
Avg. Rating
50+ Lac
Orders Delivered
93%
Happy Customers
Money Back
Genuine Product
Easy Return
Get GST Invoice
Secure Payments
365 Days Help Desk
Moglix Insights
About This Product
Key Features
2 Years Warranty on CP PLUS CCTV Combo.
1/2.8 inch 2.4MP CMOS Image Sensor (0.9071 centimetres).
Max 25/30fps at 2.4MP, DWDR, 2D-DNR, AWB, AGC, BLC.
3.6mm Fixed Lens (2.8mm Optional).
Illumination Distance of 20 Mtrs, IP67.
Support 24/7 Color Imaging, Support Built-in Mic & CVI/CVBS/AHD/TVI Switchable.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 5 channels IP camera inputs, each channel up to 2MP; Max 20Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pr.
Show All Key Features
Product Specifications
Brand | |
Additional Details | Casing: Plastic Max Aperture: F1.6 Mount Type: M12 |
Audio Bit rate | 64 Kbps Per Channel |
Cable Length | 70 m |
Camera | 2.4 MP |
Ethernet | 1 RJ-45 Port (100 Mbps) |
Frequency Range | 50-60 Hz |
IR Range | 20 m |
Image Sensor | 1/2.8 inch 2.4MP CMOS |
Input Voltage | 150-240 V AC |
Leakage Current | Max: 0.008 Amp |
Lens Size | 3.6 mm |
Minimum Illumination | 0.01 Lux/F1.6 & 0 Lux White Light on |
Model | Dome: CP-GPC-DA24PL2C-SE DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D |
Notes | The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided |
Number of Channels | DVR & SMPS: 4 |
Operating System | Embedded LINUX |
Operating Temperature | Dome: -40 to 55 deg C |
Power Consumption | Dome: 3.1 W DVR: <10 W |
Rated Power | 48 W |
Standards | IP67 |
Storage Capacity | NO HDD |
Storage Humidity | 0-90% |
Storage Temperature | Dome: -40 to 55 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C |
Video Compression | Instastream/H.265/H.264+/H.264 |
Video Recording | Sub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps) |
Video Resolution | 1920x1080p, 1280x1024p & 1280x720p |
Video Streaming | CVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H |
Voltage | 12 V DC ±30% DVR: 12 V DC |
Warranty | 2 Years |
Working Humidity | DVR: 10-90% SMPS: 5 to 95% |
Working Temperature | DVR & SMPS: -10 to 45 deg C |
Country of origin | India |
Manufacturer Details | Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India |
Packer Details | Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India |
Common/Generic Name | CCTV Kit |
Dimensions LxWxH | 25x25x25cm |
Weight | 2 kg |
Show All Specifications
Product Details
Introducing the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, the ultimate surveillance solution for your home or business. This kit includes 1 dome camera, a 4Ch DVR, 4Ch SMPS, 70m copper cable & connectors - everything you need to set up a reliable and efficient security system. The powerful 3.6mm lens captures clear and detailed footage, while the 70m cable ensures seamless connectivity. With an input voltage range of 150-240V AC and operating systems with embedded LINUX, this CCTV combo kit is designed to provide top-notch performance. The DVR and SMPS can withstand temperatures from -10 to 45 degrees Celsius, while the dome camera operates between -40 to 55 degrees Celsius, making it suitable for indoor and outdoor use. Additionally, the IR range of 20m ensures excellent night vision capabilities. Trust in the quality and reliability of the CP Plus brand for all your surveillance needs. Step up your security game with this comprehensive CCTV combo kit.
Browse through the extensive list of CCTV Combo Kits at Moglix. Shop online for other CP Plus CCTV Combo Kits. available at Moglix in the lowest price range.
