CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Bullet Camera, 4Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Bullet Camera, 4Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors

Hover to Zoom

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Bullet Camera, 4Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors

Name: CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Bullet Camera, 4Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors
Brand: CP Plus
SKU: MSN153VJ7VNJK3
Price: 16599 INR
Availability: InStock

₹16,599 (Incl. of all taxes)

₹14,066 ₹2,533 GST

MRP ₹28,719 42% OFF

Storage Capacity

2 TB
1 TB
500 GB
NO HDD

Buy More & Save More

Qty 2

₹16,474 /pc

42% OFF

Qty 3

₹16,412 /pc

42% OFF

Qty 4 - 5

₹16,350 /pc

43% OFF

Qty 6 - 7

₹16,225 /pc

43% OFF

Qty 8+

₹16,101 /pc

43% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.

Get at

₹16,499

with Coupon & Offers

Extra ₹100 OFF

All Coupons & Offers

India’s Leading B2B Online Store

4.7

Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

Money Back

Genuine Product

Easy Return

Get GST Invoice

Secure Payments

365 Days Help Desk

Moglix Insights

About This Product

Key Features

2 Years Warranty on CP PLUS CCTV Combo.
1/2.8 inch 2.4MP CMOS Image Sensor (0.9071 centimetres).
Max 25/30fps at 2.4MP, DWDR, 2D-DNR, AWB, AGC, BLC.
3.6mm Fixed Lens (2.8mm Optional).
Illumination Distance of 20 Mtrs, IP67.
Support 24/7 Color Imaging, Support Built-in Mic & CVI/CVBS/AHD/TVI Switchable.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 5 channels IP camera inputs, each channel up to 2MP; Max 20Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pr.

Show All Key Features

Product Specifications

Brand	CP Plus
Additional Details	Casing: Plastic Max Aperture: F1.6 Mount Type: M12
Audio Bit rate	64 Kbps Per Channel
Cable Length	70 m
Camera	2.4 MP
Ethernet	1 RJ-45 Port (100 Mbps)
Frequency Range	50-60 Hz
IR Range	20 m
Image Sensor	1/2.8 inch 2.4MP CMOS
Input Voltage	150-240 V AC
Leakage Current	Max: 0.008 A
Lens Size	3.6 mm
Minimum Illumination	0.01 Lux/F1.6 & 0 Lux White Light on
Model	Bullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
Notes	The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Number of Channels	DVR & SMPS: 4
Operating System	Embedded LINUX
Operating Temperature	Bullet: -40 to 60 deg C
Power Consumption	Bullet: 3.1 W DVR: <10 W
Rated Power	48 W
Standards	IP67
Storage Capacity	2 TB
Storage Humidity	0-90%
Storage Temperature	Bullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Video Compression	Instastream/H.265/H.264+/H.264
Video Recording	Sub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video Resolution	1920x1080p, 1280x1024p & 1280x720p
Video Streaming	CVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Voltage	12 V DC ±30% DVR: 12 V DC
Warranty	2 Years
Working Humidity	DVR: 10-90% SMPS: 5 to 95%
Working Temperature	DVR & SMPS: -10 to 45 deg C
Country of origin	India
Manufacturer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Packer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Common/Generic Name	CCTV Kit
Dimensions LxWxH	25x25x25cm
Weight	2 kg

Show All Specifications

Product Details

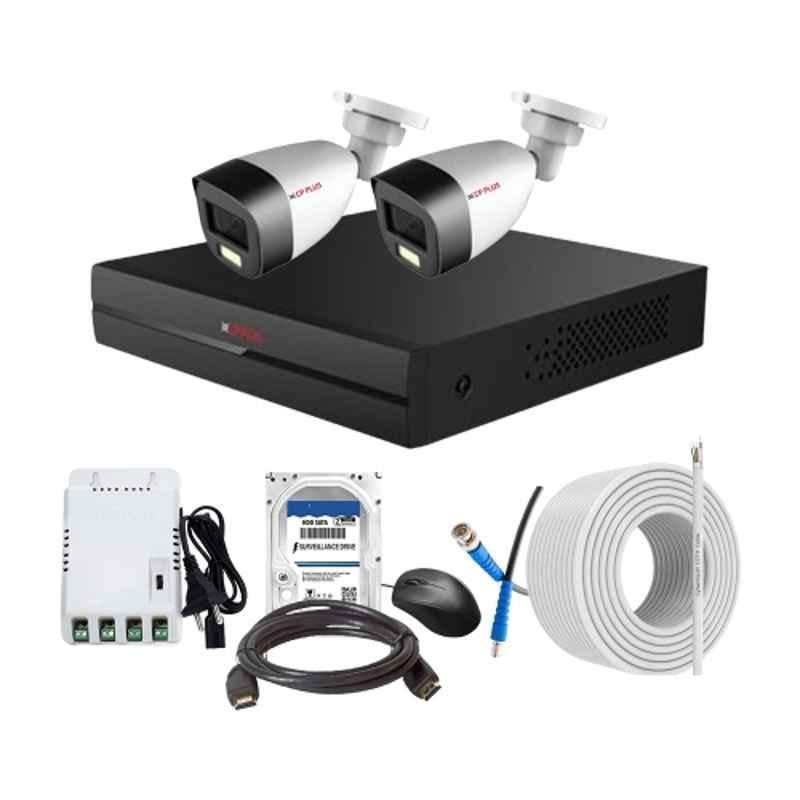

The CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit is the perfect solution for your surveillance needs. This kit includes a 4Ch DVR, 2 bullet cameras, 4Ch SMPS, 70m copper cable, 2TB HDD, and connectors. The CCTV Combo Kits category is where you'll find this top-of-the-line product by the trusted brand, CP Plus. The lens size of 3.6mm ensures a clear and detailed view, and the 70m cable length allows for flexible installation. The input voltage of 150-240 V AC ensures seamless operation, while the embedded LINUX operating system provides a stable and reliable platform. With a working temperature range of -10 to 45 deg C for the DVR and SMPS, and -40 to 60 deg C for the bullet cameras, this kit is suitable for both indoor and outdoor use. The 20m IR range ensures visibility even in low-light conditions. Experience the ultimate in surveillance with the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit.
