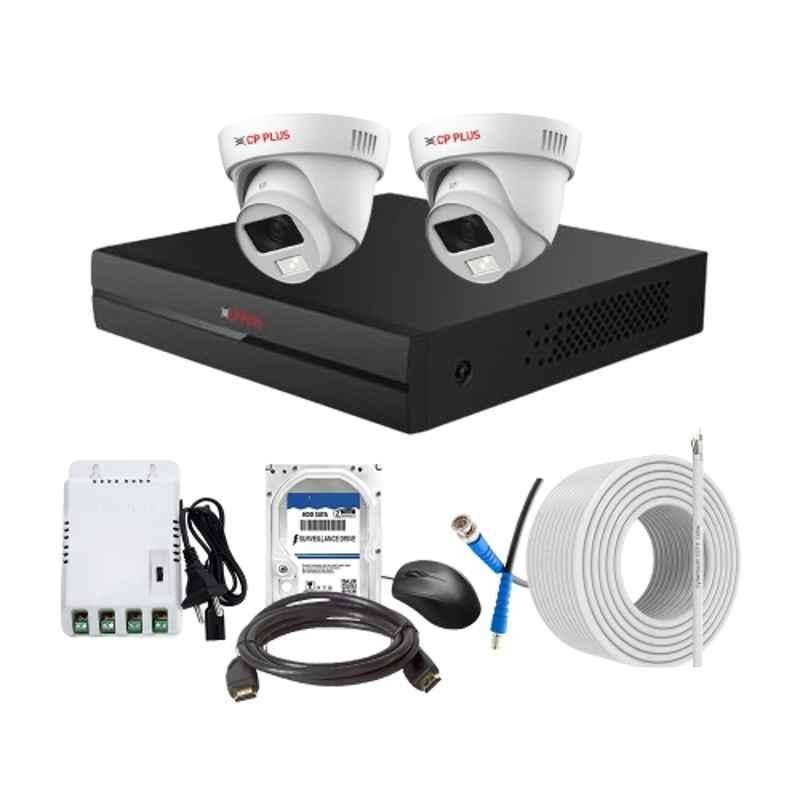

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome Camera, 4Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome Camera, 4Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors

Hover to Zoom

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome Camera, 4Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors

Name: CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome Camera, 4Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors
Brand: CP Plus
SKU: MSNE5N8YW8E0KL
Price: 16489 INR
Availability: InStock

₹16,489 (Incl. of all taxes)

₹13,973 ₹2,516 GST

MRP ₹28,019 41% OFF

Storage Capacity

2 TB
1 TB
500 GB
NO HDD

Buy More & Save More

Qty 2

₹16,365 /pc

41% OFF

Qty 3

₹16,303 /pc

41% OFF

Qty 4 - 5

₹16,241 /pc

42% OFF

Qty 6 - 7

₹16,117 /pc

42% OFF

Qty 8+

₹15,994 /pc

42% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.

Get at

₹16,389

with Coupon & Offers

Extra ₹100 OFF

All Coupons & Offers

India’s Leading B2B Online Store

4.7

google_logo Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

Money Back

Genuine Product

Easy Return

Get GST Invoice

Secure Payments

365 Days Help Desk

Moglix Insights

About This Product

Key Features

2 Years Warranty on CP PLUS CCTV Combo.
1/2.8 inch 2.4MP CMOS Image Sensor (0.9071 centimetres).
Max 25/30fps at 2.4MP, DWDR, 2D-DNR, AWB, AGC, BLC.
3.6mm Fixed Lens (2.8mm Optional).
Illumination Distance of 20 Mtrs, IP67.
Support 24/7 Color Imaging, Support Built-in Mic & CVI/CVBS/AHD/TVI Switchable.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 5 channels IP camera inputs, each channel up to 2MP; Max 20Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pr.

Show All Key Features

Product Specifications

Brand	CP Plus
Additional Details	Casing: Plastic Max Aperture: F1.6 Mount Type: M12
Audio Bit rate	64 Kbps Per Channel
Cable Length	70 m
Camera	2.4 MP
Ethernet	1 RJ-45 Port (100 Mbps)
Frequency Range	50-60 Hz
IR Range	20 m
Image Sensor	1/2.8 inch 2.4MP CMOS
Input Voltage	150-240 V AC
Leakage Current	Max: 0.008 Amp
Lens Size	3.6 mm
Minimum Illumination	0.01 Lux/F1.6 & 0 Lux White Light on
Model	Dome: CP-GPC-DA24PL2C-SE DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
Notes	The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Number of Channels	DVR & SMPS: 4
Operating System	Embedded LINUX
Operating Temperature	Dome: -40 to 55 deg C
Power Consumption	Dome: 3.1 W DVR: <10 W
Rated Power	48 W
Standards	IP67
Storage Capacity	2 TB
Storage Humidity	0-90%
Storage Temperature	Dome: -40 to 55 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Video Compression	Instastream/H.265/H.264+/H.264
Video Recording	Sub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video Resolution	1920x1080p, 1280x1024p & 1280x720p
Video Streaming	CVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Voltage	12 V DC ±30% DVR: 12 V DC
Warranty	2 Years
Working Humidity	DVR: 10-90% SMPS: 5 to 95%
Working Temperature	DVR & SMPS: -10 to 45 deg C
Country of origin	India
Manufacturer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Packer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Common/Generic Name	CCTV Kit
Dimensions LxWxH	25x25x25cm
Weight	2 kg

Show All Specifications

Product Details

Introducing the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, an exceptional choice for all your surveillance needs. This high-quality kit includes a 4-channel DVR, 2 dome cameras, a 4-channel SMPS, 70m copper cable, 2TB HDD, and connectors, providing everything you need to set up a reliable and efficient security system.

With its impressive 2.4MP full color HD audio capability, this combo kit ensures crystal-clear images and enhanced audio surveillance. The 3.6mm lens size guarantees excellent focus and wide-angle coverage, capturing every detail with precision. The 70m cable length offers flexibility in camera placement, while the input voltage of 150-240V AC ensures stable and consistent power supply.

Operating on an embedded LINUX operating system, this CCTV combo kit guarantees reliable performance and efficient functionality. The DVR and SMPS work flawlessly within a temperature range of -10 to 45 degrees Celsius, ensuring optimal operation regardless of weather conditions. The dome camera, with an incredible operating temperature of -40 to 55 degrees Celsius, is capable of withstanding extreme climates without compromising performance.

In addition, the integrated 2TB HDD provides ample storage capacity to store your footage securely. The IR range of 20m allows for excellent night vision, ensuring continuous surveillance even in low-light conditions. With its sleek design and durable construction, this CP Plus CCTV Combo Kit is the perfect choice for both indoor and outdoor security applications.

Experience the utmost peace of mind with the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, the ultimate solution for all your surveillance needs. Trust in the renowned CP Plus brand to deliver exceptional performance and reliability, making your security a top priority.

Browse through the extensive list of CCTV Combo Kits at Moglix. Shop online for other CP Plus CCTV Combo Kits. available at Moglix in the lowest price range.
