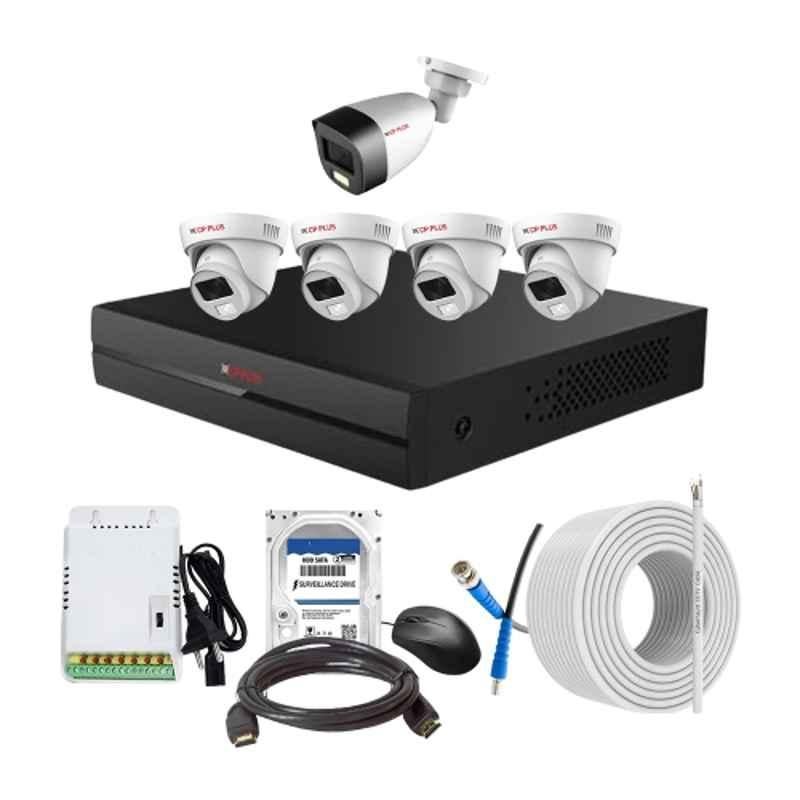

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 4 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

Name: CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 4 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector
Brand: CP Plus
SKU: MSNR50NOMN1251
Price: 18519 INR
Availability: OutOfStock

₹18,519 (Incl. of all taxes)

₹15,694 + ₹2,825 GST

MRP ₹38,239 51% OFF

AVAILABLE ON REQUEST

Storage Capacity

500 GB
1 TB
2 TB
NO HDD

Moglix Insights

About This Product

Key Features

2 Years Warranty on CP PLUS CCTV Combo.
1/2.8 inch 2.4MP CMOS Image Sensor (0.9071 centimetres).
Max 25/30fps at 2.4MP, DWDR, 2D-DNR, AWB, AGC, BLC.
3.6mm Fixed Lens (2.8mm Optional).
Illumination Distance of 20 Mtrs, IP67.
Support 24/7 Color Imaging, Support Built-in Mic & CVI/CVBS/AHD/TVI Switchable.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 10 channels IP camera inputs, each channel up to 6MP; Max 40Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pro.

Show All Key Features

Product Specifications

Brand	CP Plus
Additional Details	Casing: Plastic Max Aperture: F1.6 Mount Type: M12
Audio Bit rate	64 Kbps Per Channel
Cable Length	70 m
Camera	2.4 MP
Ethernet	1 RJ-45 Port (100 Mbps)
Frequency Range	50-60 Hz
IR Range	20 m
Image Sensor	1/2.8 inch 2.4MP CMOS
Input Voltage	150-240 V AC
Leakage Current	Max: 0.008 A
Lens Size	3.6 mm
Minimum Illumination	0.01 Lux/F1.6 & 0 Lux White Light on
Model	Dome: CP-GPC-DA24PL2C-SE Bullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
Notes	The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Number of Channels	DVR & SMPS: 8
Operating System	Embedded LINUX
Operating Temperature	Dome: -40 to 55 deg C Bullet: -40 to 60 deg C
Power Consumption	Dome & Bullet: 3.1 W DVR: <10 W
Rated Power	48 W
Standards	IP67
Storage Capacity	500 GB
Storage Humidity	0-90%
Storage Temperature	Dome: -40 to 55 deg C Bullet: -40 to 60 deg C
Video Compression	Instastream/H.265/H.264+/H.264
Video Recording	Sub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Resolution	1920x1080p, 1280x1024p & 1280x720p
Video Streaming	CVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Voltage	12 V DC ±30% DVR: 12 V DC
Warranty	2 Years
Working Humidity	DVR: 10-90% SMPS: 5 to 95%
Working Temperature	DVR & SMPS: -10 to 45 deg C
Country of origin	India
Manufacturer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Packer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Common/Generic Name	CCTV Kit
Dimensions LxWxH	25x25x25cm
Weight	2 kg

Show All Specifications

Product Details

Introducing the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, a reliable and efficient surveillance solution for both indoor and outdoor use. This comprehensive kit includes an 8-channel DVR, 1 bullet camera, 4 dome cameras, an 8-channel SMPS, 70m of high-quality cable, a 500GB HDD, and connector accessories. With a lens size of 3.6 mm, this CCTV combo kit ensures crystal-clear footage, capturing every detail with precision. The 70m cable allows for a flexible installation, enabling you to cover a wide area. The input voltage range of 150-240 V AC ensures compatibility in different environments. The embedded LINUX operating system guarantees seamless functionality, while the working temperature range of -10 to 45 degrees Celsius for the DVR and SMPS, and -40 to 55 degrees Celsius for the dome camera, ensures reliable performance in various conditions. The IR range of 20m provides excellent night vision capabilities. Experience peace of mind with the CP Plus CCTV Combo Kit – safeguard your property with ease.
