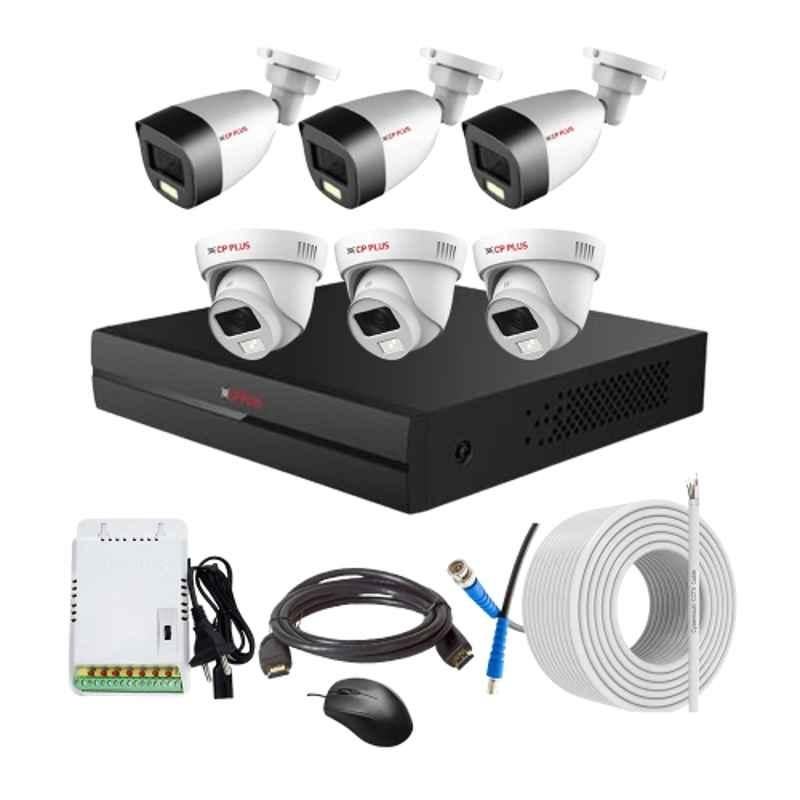

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 3 Dome 3 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors

Name: CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 3 Dome 3 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors
Brand: CP Plus
SKU: MSNNKQGX3G4Z9X
Price: 15389 INR
Availability: OutOfStock

₹15,389 (Incl. of all taxes)

₹13,041 + ₹2,348 GST

MRP ₹41,039 62% OFF

AVAILABLE ON REQUEST

Storage Capacity

NO HDD
1 TB
2 TB
500 GB

Moglix Insights

About This Product

Key Features

2 Years Warranty on CP PLUS CCTV Combo.
1/2.8 inch 2.4MP CMOS Image Sensor (0.9071 centimetres).
Max 25/30fps at 2.4MP, DWDR, 2D-DNR, AWB, AGC, BLC.
3.6mm Fixed Lens (2.8mm Optional).
Illumination Distance of 20 Mtrs, IP67.
Support 24/7 Color Imaging, Support Built-in Mic & CVI/CVBS/AHD/TVI Switchable.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 10 channels IP camera inputs, each channel up to 6MP; Max 40Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pro.

Show All Key Features

Product Specifications

Brand	CP Plus
Additional Details	Casing: Plastic Max Aperture: F1.6 Mount Type: M12
Audio Bit rate	64 Kbps Per Channel
Cable Length	70 m
Camera	2.4 MP
Ethernet	1 RJ-45 Port (100 Mbps)
Frequency Range	50-60 Hz
IR Range	20 m
Image Sensor	1/2.8 inch 2.4MP CMOS
Input Voltage	150-240 V AC
Leakage Current	Max: 0.008 A
Lens Size	3.6 mm
Minimum Illumination	0.01 Lux/F1.6 & 0 Lux White Light on
Model	Dome: CP-GPC-DA24PL2C-SE Bullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
Notes	The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Number of Channels	DVR & SMPS: 8
Operating System	Embedded LINUX
Operating Temperature	Dome: -40 to 55 deg C Bullet: -40 to 60 deg C
Power Consumption	Dome & Bullet: 3.1 W DVR: <10 W
Rated Power	48 W
Standards	IP67
Storage Capacity	NO HDD
Storage Humidity	0-90%
Storage Temperature	Dome: -40 to 55 deg C Bullet: -40 to 60 deg C
Video Compression	Instastream/H.265/H.264+/H.264
Video Recording	Sub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Resolution	1920x1080p, 1280x1024p & 1280x720p
Video Streaming	CVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Voltage	12 V DC ±30% DVR: 12 V DC
Warranty	2 Years
Working Humidity	DVR: 10-90% SMPS: 5 to 95%
Working Temperature	DVR & SMPS: -10 to 45 deg C
Country of origin	India
Manufacturer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Packer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Common/Generic Name	CCTV Kit
Dimensions LxWxH	25x25x25cm
Weight	2 kg

Show All Specifications

Product Details

Introducing the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, the perfect solution for all your surveillance needs. This kit includes a high-definition 8-channel DVR, along with 3 dome and 3 bullet cameras. The lens size of 3.6 mm ensures a wide and clear view of your surroundings. With a cable length of 70 meters, you can easily set up your cameras both indoors and outdoors.

The CP Plus CCTV Combo Kit is designed to provide excellent performance and reliability. It operates on an input voltage range of 150-240 V AC, ensuring compatibility with various power sources. The embedded LINUX operating system ensures seamless recording and playback of footage.

Whether it's day or night, this kit guarantees superior visibility. The IR range of 20 meters provides clear images even in low-light conditions. The working temperature of the DVR and SMPS ranges from -10 to 45 degrees Celsius, ensuring efficient operation in varying climates.

The dome camera can withstand extreme temperatures, operating between -40 to 55 degrees Celsius. This makes it suitable for outdoor use and ensures durability against harsh weather conditions.

Overall, the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit is your reliable and comprehensive surveillance solution. With its high-definition cameras, long cable length, and advanced features, this kit is perfect for ensuring the safety and security of your premises.

Browse through the extensive list of CCTV Combo Kits at Moglix. Shop online for other CP Plus CCTV Combo Kits. available at Moglix in the lowest price range.
