CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Bullet 1 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Bullet 1 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

Hover to Zoom

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Bullet 1 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

Name: CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Bullet 1 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector
Brand: CP Plus
SKU: MSNO5WNVMNQW51
Price: 18189 INR
Availability: InStock

₹18,189 (Incl. of all taxes)

₹15,414 ₹2,775 GST

MRP ₹39,289 53% OFF

Storage Capacity

500 GB
1 TB
2 TB
NO HDD

Buy More & Save More

Qty 2

₹18,052 /pc

54% OFF

Qty 3

₹17,984 /pc

54% OFF

Qty 4 - 5

₹17,916 /pc

54% OFF

Qty 6 - 7

₹17,779 /pc

54% OFF

Qty 8+

₹17,643 /pc

55% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.

Get at

₹18,089

with Coupon & Offers

Extra ₹100 OFF

All Coupons & Offers

India’s Leading B2B Online Store

4.7

Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

Money Back

Genuine Product

Easy Return

Get GST Invoice

Secure Payments

365 Days Help Desk

Moglix Insights

About This Product

Key Features

2 Years Warranty on CP PLUS CCTV Combo.
1/2.8 inch 2.4MP CMOS Image Sensor (0.9071 centimetres).
Max 25/30fps at 2.4MP, DWDR, 2D-DNR, AWB, AGC, BLC.
3.6mm Fixed Lens (2.8mm Optional).
Illumination Distance of 20 Mtrs, IP67.
Support 24/7 Color Imaging, Support Built-in Mic & CVI/CVBS/AHD/TVI Switchable.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 10 channels IP camera inputs, each channel up to 6MP; Max 40Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pro.

Show All Key Features

Product Specifications

Brand	CP Plus
Additional Details	Casing: Plastic Max Aperture: F1.6 Mount Type: M12
Audio Bit rate	64 Kbps Per Channel
Cable Length	70 m
Camera	2.4 MP
Ethernet	1 RJ-45 Port (100 Mbps)
Frequency Range	50-60 Hz
IR Range	20 m
Image Sensor	1/2.8 inch 2.4MP CMOS
Input Voltage	150-240 V AC
Leakage Current	Max: 0.008 A
Lens Size	3.6 mm
Minimum Illumination	0.01 Lux/F1.6 & 0 Lux White Light on
Model	Dome: CP-GPC-DA24PL2C-SE Bullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
Notes	The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Number of Channels	DVR & SMPS: 8
Operating System	Embedded LINUX
Operating Temperature	Dome: -40 to 55 deg C Bullet: -40 to 60 deg C
Power Consumption	Dome & Bullet: 3.1 W DVR: <10 W
Rated Power	48 W
Standards	IP67
Storage Capacity	500 GB
Storage Humidity	0-90%
Storage Temperature	Dome: -40 to 55 deg C Bullet: -40 to 60 deg C
Video Compression	Instastream/H.265/H.264+/H.264
Video Recording	Sub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Resolution	1920x1080p, 1280x1024p & 1280x720p
Video Streaming	CVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Voltage	12 V DC ±30% DVR: 12 V DC
Warranty	2 Years
Working Humidity	DVR: 10-90% SMPS: 5 to 95%
Working Temperature	DVR & SMPS: -10 to 45 deg C
Country of origin	India
Manufacturer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Packer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Common/Generic Name	CCTV Kit
Dimensions LxWxH	25x25x25cm
Weight	2 kg

Show All Specifications

Product Details

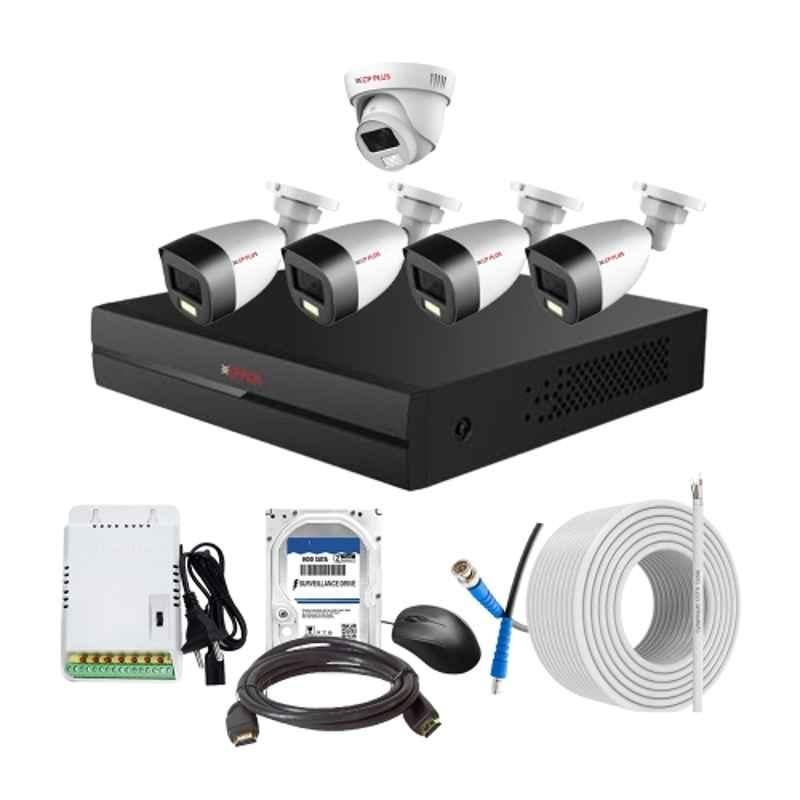

Introducing the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, the ultimate security solution for both indoor and outdoor surveillance. This advanced kit includes an 8-channel DVR, 4 bullet cameras, 1 dome camera, an 8-channel SMPS, a 70m cable, a 500GB HDD, and connector.

With a lens size of 3.6mm, this CCTV kit captures high-quality footage with incredible clarity and detail. The 70m cable length ensures versatile installation options, allowing you to cover a wide area. Operating on an input voltage of 150-240V AC, this combo kit is compatible with various power sources.

Powered by the embedded LINUX operating system, the DVR ensures smooth and efficient performance. The working temperature ranges from -10 to 45 degrees Celsius for both the DVR and SMPS, ensuring reliable operation even in extreme weather conditions. The infrared range of 20m enables exceptional visibility in low light or nighttime scenarios.

The dome camera is designed to withstand extreme temperatures, operating seamlessly between -40 and 55 degrees Celsius. As part of the CCTV Combo Kits category, the CP Plus brand guarantees top-notch quality and reliability. Upgrade your security with the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit.
