What storage capacity is included in the kit?

The kit includes a 500GB HDD pre-installed in the 8-channel DVR, suitable for recording and storing footage for several days depending on settings.

Home
Security
CCTV Cameras
CCTV Combo Kits

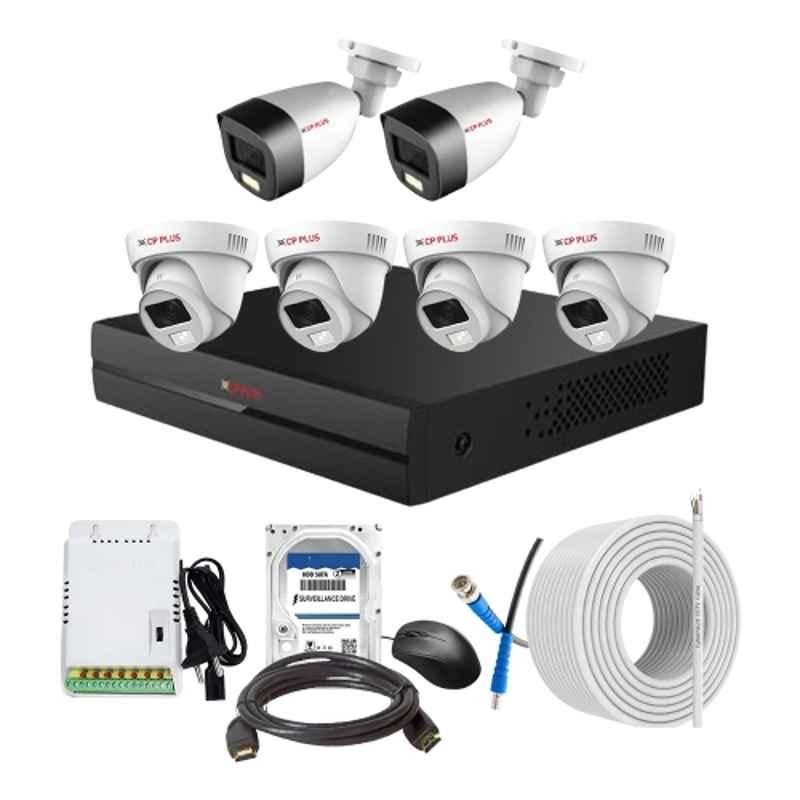

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Dome 2 Bullet Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Dome 2 Bullet Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

Hover to Zoom

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Dome 2 Bullet Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

Name: CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Dome 2 Bullet Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector
Brand: CP Plus
SKU: MSNV5OOXGOL056
Price: 19919 INR
Availability: InStock

₹19,919 (Incl. of all taxes)

₹16,880 ₹3,039 GST

MRP ₹43,139 53% OFF

Storage Capacity

500 GB
1 TB
2 TB
NO HDD

Buy More & Save More

Qty 2

₹19,769 /pc

54% OFF

Qty 3

₹19,694 /pc

54% OFF

Qty 4 - 5

₹19,620 /pc

54% OFF

Qty 6 - 7

₹19,470 /pc

54% OFF

Qty 8+

₹19,321 /pc

55% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.

Get at

₹19,819

with Coupon & Offers

Extra ₹100 OFF

All Coupons & Offers

India’s Leading B2B Online Store

4.7

google_logo Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

Money Back

Genuine Product

Easy Return

Get GST Invoice

Secure Payments

365 Days Help Desk

Moglix Insights

About This Product

Key Features

2 Years Warranty on CP PLUS CCTV Combo.
1/2.8 inch 2.4MP CMOS Image Sensor (0.9071 centimetres).
Max 25/30fps at 2.4MP, DWDR, 2D-DNR, AWB, AGC, BLC.
3.6mm Fixed Lens (2.8mm Optional).
Illumination Distance of 20 Mtrs, IP67.
Support 24/7 Color Imaging, Support Built-in Mic & CVI/CVBS/AHD/TVI Switchable.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 10 channels IP camera inputs, each channel up to 6MP; Max 40Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pro.

Show All Key Features

Product Specifications

Brand	CP Plus
Additional Details	Casing: Plastic Max Aperture: F1.6 Mount Type: M12
Audio Bit rate	64 Kbps Per Channel
Cable Length	70 m
Camera	2.4 MP
Ethernet	1 RJ-45 Port (100 Mbps)
Frequency Range	50-60 Hz
IR Range	20 m
Image Sensor	1/2.8 inch 2.4MP CMOS
Input Voltage	150-240 V AC
Leakage Current	Max: 0.008 A
Lens Size	3.6 mm
Minimum Illumination	0.01 Lux/F1.6 & 0 Lux White Light on
Model	Dome: CP-GPC-DA24PL2C-SE Bullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
Notes	The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Number of Channels	DVR & SMPS: 8
Operating System	Embedded LINUX
Operating Temperature	Dome: -40 to 55 deg C Bullet: -40 to 60 deg C
Power Consumption	Dome & Bullet: 3.1 W DVR: <10 W
Rated Power	48 W
Standards	IP67
Storage Capacity	500 GB
Storage Humidity	0-90%
Storage Temperature	Dome: -40 to 55 deg C Bullet: -40 to 60 deg C
Video Compression	Instastream/H.265/H.264+/H.264
Video Recording	Sub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Resolution	1920x1080p, 1280x1024p & 1280x720p
Video Streaming	CVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Voltage	12 V DC ±30% DVR: 12 V DC
Warranty	2 Years
Working Humidity	DVR: 10-90% SMPS: 5 to 95%
Working Temperature	DVR & SMPS: -10 to 45 deg C
Country of origin	India
Manufacturer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Packer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Common/Generic Name	CCTV Kit
Dimensions LxWxH	25x25x25cm
Weight	2 kg

Show All Specifications

Product Details

Introducing the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, a top-of-the-line surveillance solution perfect for both indoor and outdoor use. This comprehensive kit includes all the essentials you need for a complete CCTV setup for your home or business.

Featuring an 8Ch DVR, 4 dome and 2 bullet cameras, this kit provides a reliable and high-quality video monitoring system. The 3.6mm lens size allows for a wide viewing angle ensuring that every corner is covered. With a whopping 500GB HDD, you can store hours of footage without worrying about running out of space.

The CP Plus CCTV Combo Kit also includes an 8Ch SMPS power supply, ensuring a stable power source for your cameras. The 70m cable length allows for flexibility in camera placement, while the included connector makes installation a breeze.

This surveillance system is equipped with an embedded LINUX operating system, guaranteeing seamless performance and easy navigation. With an input voltage of 150-240 V AC, you can rest assured that your system will remain powered and ready to capture any suspicious activity.

Designed to endure harsh conditions, the DVR and SMPS have an operating temperature range of -10 to 45 deg C, while the dome cameras can withstand extreme temperatures from -40 to 55 deg C. Additionally, the IR range of 20m ensures clear night vision, keeping your property safe 24/7.

Choose CP Plus for top-notch quality and reliable security solutions. Experience peace of mind knowing that your property is under the watchful eye of the CP Plus CCTV Combo Kit.
