CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Dome Camera, 8Ch SMPS, 70m Copper Cable & Connectors

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Dome Camera, 8Ch SMPS, 70m Copper Cable & Connectors

Hover to Zoom

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Dome Camera, 8Ch SMPS, 70m Copper Cable & Connectors

Name: CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Dome Camera, 8Ch SMPS, 70m Copper Cable & Connectors
Brand: CP Plus
SKU: MSN153VJ7V7YK3
Price: 16409 INR
Availability: InStock

₹16,409 (Incl. of all taxes)

₹13,905 ₹2,504 GST

MRP ₹35,439 53% OFF

Storage Capacity

NO HDD
1 TB
2 TB
500 GB

Buy More & Save More

Qty 2

₹16,285 /pc

54% OFF

Qty 3

₹16,224 /pc

54% OFF

Qty 4 - 5

₹16,162 /pc

54% OFF

Qty 6 - 7

₹16,039 /pc

54% OFF

Qty 8+

₹15,916 /pc

55% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.

Get at

₹16,309

with Coupon & Offers

Extra ₹100 OFF

All Coupons & Offers

India’s Leading B2B Online Store

4.7

google_logo Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

Money Back

Genuine Product

Easy Return

Get GST Invoice

Secure Payments

365 Days Help Desk

Moglix Insights

About This Product

Key Features

2 Years Warranty on CP PLUS CCTV Combo.
1/2.8 inch 2.4MP CMOS Image Sensor (0.9071 centimetres).
Max 25/30fps at 2.4MP, DWDR, 2D-DNR, AWB, AGC, BLC.
3.6mm Fixed Lens (2.8mm Optional).
Illumination Distance of 20 Mtrs, IP67.
Support 24/7 Color Imaging, Support Built-in Mic & CVI/CVBS/AHD/TVI Switchable.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 10 channels IP camera inputs, each channel up to 6MP; Max 40Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pro.

Show All Key Features

Product Specifications

Brand	CP Plus
Additional Details	Casing: Plastic Max Aperture: F1.6 Mount Type: M12
Audio Bit rate	64 Kbps Per Channel
Cable Length	70 m
Camera	2.4 MP
Ethernet	1 RJ-45 Port (100 Mbps)
Frequency Range	50-60 Hz
IR Range	20 m
Image Sensor	1/2.8 inch 2.4MP CMOS
Input Voltage	150-240 V AC
Leakage Current	Max: 0.008 Amp
Lens Size	3.6 mm
Minimum Illumination	0.01 Lux/F1.6 & 0 Lux White Light on
Model	Dome: CP-GPC-DA24PL2C-SE DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
Notes	The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Number of Channels	DVR & SMPS: 8
Operating System	Embedded LINUX
Operating Temperature	Dome: -40 to 55 deg C
Power Consumption	Dome: 3.1 W DVR: <10 W
Rated Power	48 W
Standards	IP67
Storage Capacity	NO HDD
Storage Humidity	0-90%
Storage Temperature	Dome: -40 to 55 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Video Compression	Instastream/H.265/H.264+/H.264
Video Recording	Sub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Resolution	1920x1080p, 1280x1024p & 1280x720p
Video Streaming	CVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Voltage	12 V DC ±30% DVR: 12 V DC
Warranty	2 Years
Working Humidity	DVR: 10-90% SMPS: 5 to 95%
Working Temperature	DVR & SMPS: -10 to 45 deg C
Country of origin	India
Manufacturer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Packer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Common/Generic Name	CCTV Kit
Dimensions LxWxH	25x25x25cm
Weight	2 kg

Show All Specifications

Product Details

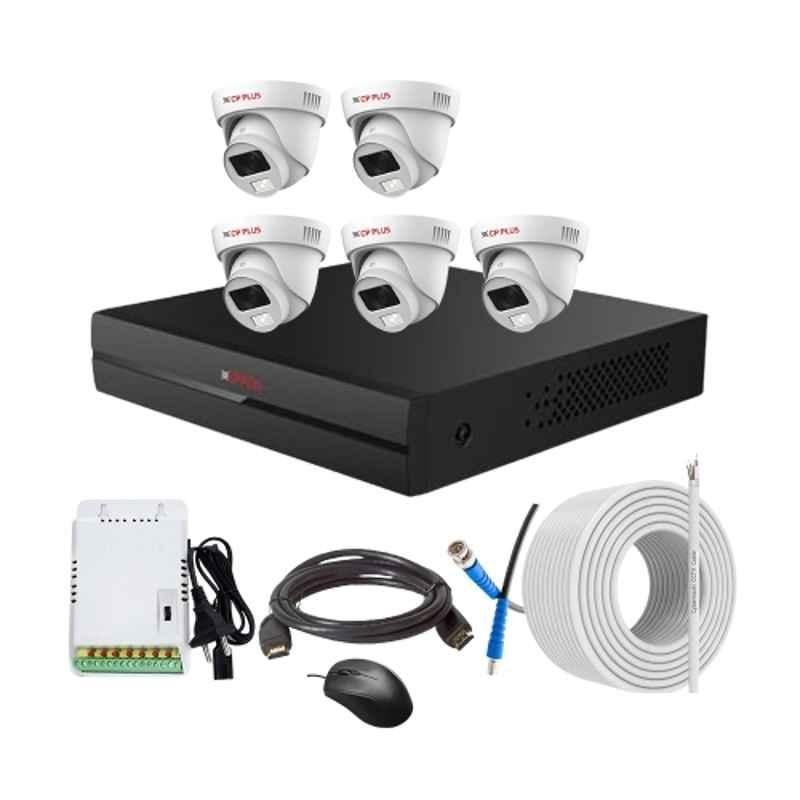

Introducing the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, a top-notch security solution that ensures reliable surveillance for your home or business. This comprehensive kit includes 5 dome cameras with a lens size of 3.6 mm, providing clear and detailed images. With a cable length of 70 m, you can easily set up the cameras both indoors and outdoors. The kit also includes an 8Ch DVR, allowing you to monitor multiple areas simultaneously. Powered by an input voltage of 150-240 V AC, this system utilizes an embedded LINUX operating system for efficient and secure operation. The DVR and SMPS can withstand temperatures ranging from -10 to 45 deg C, ensuring reliable performance even in extreme conditions. The dome cameras are designed to withstand temperatures from -40 to 55 deg C, making them perfect for outdoor use. Equipped with an IR range of 20 m, these cameras deliver exceptional night vision capabilities. Trust the CP Plus brand to provide you with a high-quality CCTV solution that guarantees the safety and security of your premises.
