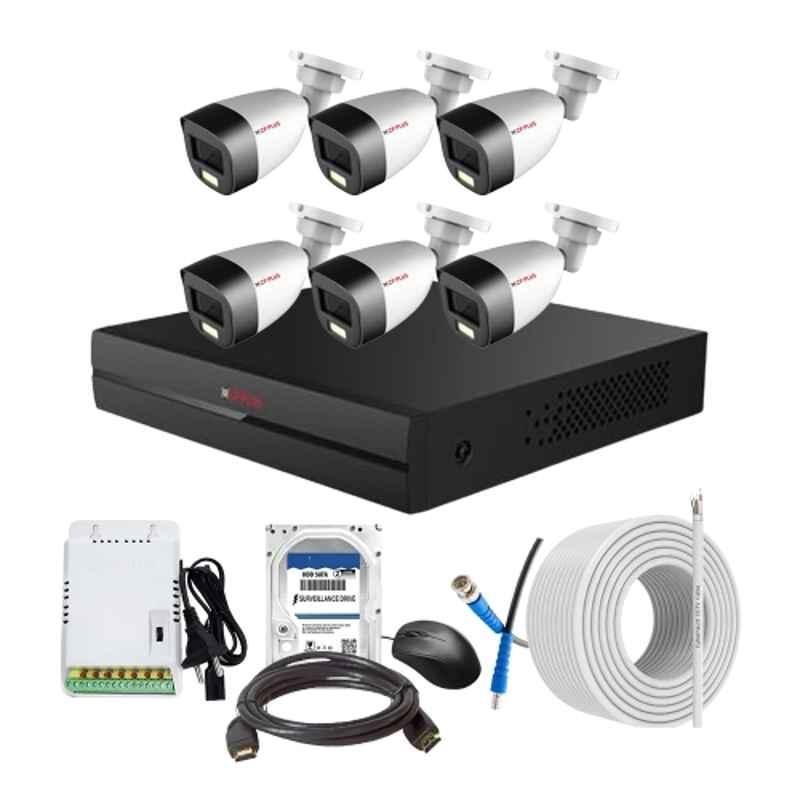

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Bullet Camera, 8Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors
₹20,349 (Incl. of all taxes)
₹17,244 ₹3,105 GST
MRP ₹44,539 54% OFF
Buy More & Save More
Qty 2
₹20,196 /pc
54% OFF
Qty 3
₹20,120 /pc
54% OFF
Qty 4 - 5
₹20,043 /pc
54% OFF
Qty 6 - 7
₹19,891 /pc
55% OFF
Qty 8+
₹19,738 /pc
55% OFF
Sign Up & Earn 10 Mogli Coins
& save extra money on your next purchase.
Get at
₹20,249
with Coupon & Offers
Extra ₹100 OFF
All Coupons & Offers
India’s Leading B2B Online Store
4.7
Avg. Rating
50+ Lac
Orders Delivered
93%
Happy Customers
Money Back
Genuine Product
Easy Return
Get GST Invoice
Secure Payments
365 Days Help Desk
Moglix Insights
About This Product
Key Features
2 Years Warranty on CP PLUS CCTV Combo.
1/2.8 inch 2.4MP CMOS Image Sensor (0.9071 centimetres).
Max 25/30fps at 2.4MP, DWDR, 2D-DNR, AWB, AGC, BLC.
3.6mm Fixed Lens (2.8mm Optional).
Illumination Distance of 20 Mtrs, IP67.
Support 24/7 Color Imaging, Support Built-in Mic & CVI/CVBS/AHD/TVI Switchable.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 10 channels IP camera inputs, each channel up to 6MP; Max 40Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pro.
Show All Key Features
Product Specifications
Brand | |
Additional Details | Casing: Plastic Max Aperture: F1.6 Mount Type: M12 |
Audio Bit rate | 64 Kbps Per Channel |
Cable Length | 70 m |
Camera | 2.4 MP |
Ethernet | 1 RJ-45 Port (100 Mbps) |
Frequency Range | 50-60 Hz |
IR Range | 20 m |
Image Sensor | 1/2.8 inch 2.4MP CMOS |
Input Voltage | 150-240 V AC |
Leakage Current | Max: 0.008 A |
Lens Size | 3.6 mm |
Minimum Illumination | 0.01 Lux/F1.6 & 0 Lux White Light on |
Model | Bullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D |
Notes | The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided |
Number of Channels | DVR & SMPS: 8 |
Operating System | Embedded LINUX |
Operating Temperature | Bullet: -40 to 60 deg C |
Power Consumption | Bullet: 3.1 W DVR: <10 W |
Rated Power | 48 W |
Standards | IP67 |
Storage Capacity | 500 GB |
Storage Humidity | 0-90% |
Storage Temperature | Bullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C |
Video Compression | Instastream/H.265/H.264+/H.264 |
Video Recording | Sub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps) |
Video Resolution | 1920x1080p, 1280x1024p & 1280x720p |
Video Streaming | CVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H |
Voltage | 12 V DC ±30% DVR: 12 V DC |
Warranty | 2 Years |
Working Humidity | DVR: 10-90% SMPS: 5 to 95% |
Working Temperature | DVR & SMPS: -10 to 45 deg C |
Country of origin | India |
Manufacturer Details | Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India |
Packer Details | Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India |
Common/Generic Name | CCTV Kit |
Dimensions LxWxH | 25x25x25cm |
Weight | 2 kg |
Show All Specifications
Product Details
Introducing the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, the ultimate solution for all your security needs. This incredible combo kit includes an 8Ch DVR, 6 bullet cameras, 8Ch SMPS, 70m copper cable, 500GB HDD, and connectors. With its high-definition image quality and audio capability, you can trust CP Plus to capture every detail with clarity. The 3.6mm lens size ensures a wide viewing angle, while the 70m cable length provides flexibility in camera placement. Operating on an input voltage of 150-240V AC and with an embedded LINUX operating system, this CCTV combo kit is built to perform flawlessly. The DVR and SMPS withstand temperatures ranging from -10 to 45°C, while the bullet cameras can operate in extreme temperatures from -40 to 60°C. With an impressive IR range of 20m, your property will be well-protected day and night. Choose CP Plus for reliable, high-quality surveillance.
Browse through the extensive list of CCTV Combo Kits at Moglix. Shop online for other CP Plus CCTV Combo Kits. available at Moglix in the lowest price range.
