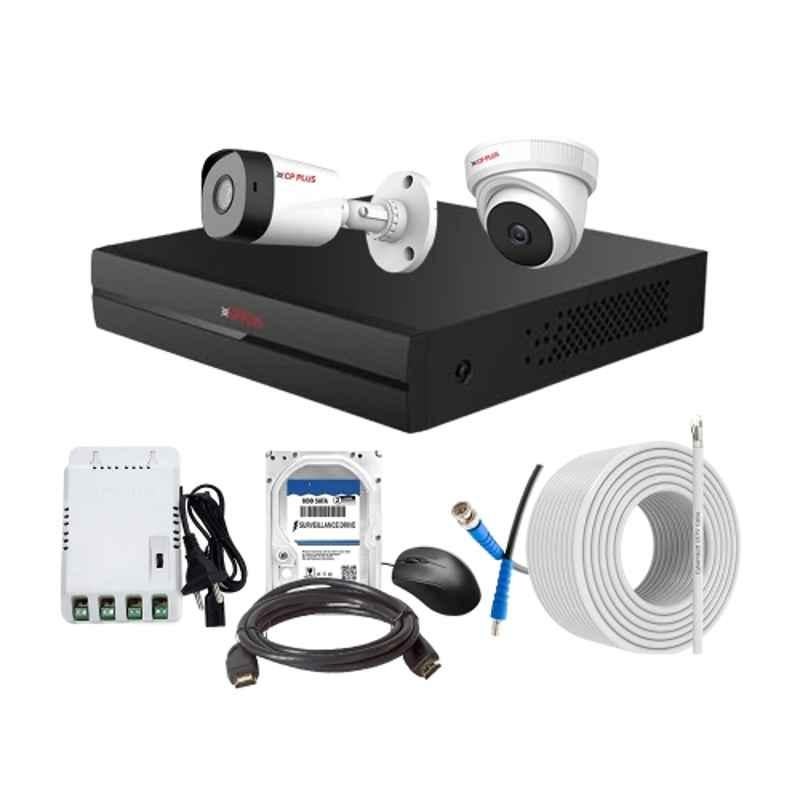

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Dome 1 Bullet Camera, 4Ch SMPS, 70m Cable, 500GB HDD & Connector
(5 Reviews)
₹9,289 (Incl. of all taxes)
₹7,872 ₹1,417 GST
MRP ₹17,149 45% OFF
Buy More & Save More
Qty 2
₹9,219 /pc
46% OFF
Qty 3
₹9,184 /pc
46% OFF
Qty 4 - 5
₹9,149 /pc
46% OFF
Qty 6 - 7
₹9,079 /pc
47% OFF
Qty 8+
₹9,010 /pc
47% OFF
Sign Up & Earn 10 Mogli Coins
& save extra money on your next purchase.
Get at
₹9,189
with Coupon & Offers
Extra ₹100 OFF
All Coupons & Offers
India’s Leading B2B Online Store
4.7
Avg. Rating
50+ Lac
Orders Delivered
93%
Happy Customers
Money Back
Genuine Product
Easy Return
Get GST Invoice
Secure Payments
365 Days Help Desk
Moglix Insights
About This Product
Key Features
2 Years Warranty on CP PLUS CCTV Combo.
1/2.7 inch 2.4MP CMOS Image Sensor (0.9407 cm).
Max 25/30fps at 2.4MP.
DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC.
3.6mm Fixed Lens (2.8mm optional).
IR Range of 20 Mtrs., Smart IR & Support Built-in Mic.
OSD Menu, control Over Coaxial Cable, 2D-DNR.
HD, SD and Two Analog format Output switchable.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 5 channels IP camera inputs, each channel up to 2MP; Max 20Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pr.
Show All Key Features
Product Specifications
Brand | |
Additional Details | Casing: Plastic CMS Software: KVMS Pro Mobile Software: iCMOB & gCMOB Record Interval: Default: 60 min, Pre-record: 1-30 sec & Post-record: 10-300 sec Playback Function: Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup, Selection & Digital Zoom |
Audio Bit rate | 64 Kbps Per Channel |
Cable Length | 70 m |
Camera | 2.4 MP |
Ethernet | 1 RJ-45 Port (100 Mbps) |
Frequency Range | 50-60 Hz |
IR Range | 20 m |
Image Sensor | 1/2.7 inch 2.4 Progressive Scan CMOS |
Input Voltage | 150-240 V AC |
Leakage Current | Max: 0.008 Amp |
Lens Size | 3.6 mm |
Minimum Illumination | 0.04 Lux/F2.0, 30IRE & 0Lux IR on |
Model | Dome: CP-URC-DC24PL2C-V3 Bullet: CP-URC-TC24PL2C-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D |
Notes | The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided |
Number of Channels | DVR & SMPS: 4 |
Operating System | Embedded LINUX |
Operating Temperature | -40 to 60 deg C |
Power Consumption | Bullet: 2.7 W DVR: <10 W |
Rated Power | 48 W |
Standards | IP67 |
Storage Capacity | 500 GB |
Storage Humidity | 0-90% |
Storage Temperature | Bullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C |
Video Compression | Instastream/H.265/H.264+/H.264 |
Video Recording | Sub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps) |
Video Resolution | 1920x1080p, 1280x1024p & 1280x720p |
Video Streaming | 2.4MP at 25/30fps & 25/30/50/60fps at720P |
Voltage | 12 V DC ±30% DVR: 12 V DC |
Warranty | 2 Years |
Working Humidity | DVR: 10-90% SMPS: 5 to 95% |
Working Temperature | DVR & SMPS: -10 to 45 deg C |
Country of origin | India |
Manufacturer Details | Aditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India |
Packer Details | Aditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India |
Common/Generic Name | CCTV Kit |
Dimensions LxWxH | 25x25x25 cm |
Weight | 2 kg |
Show All Specifications
Product Details
Introducing the CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit, the perfect solution for all your surveillance needs. This kit includes a 4Ch DVR, 1 Dome 1 Bullet Camera, 4Ch SMPS, 70m Cable, 500GB HDD & Connector, giving you everything you need to secure your property. With a lens size of 3.6mm and a cable length of 70m, you can capture clear images and videos over a wide range. The input voltage of 150-240 V AC ensures reliable power supply, while the embedded LINUX operating system ensures smooth performance. The DVR and SMPS can work in temperatures ranging from -10 to 45 deg C, making it suitable for both indoor and outdoor use. With an impressive IR range of 20m, your surveillance is not limited to daylight hours. This CCTV combo kit is designed to withstand extreme temperatures, with an operating temperature range of -40 to 60 deg C. Trust the brand name CP Plus for quality and reliability. Upgrade your security with this advanced CCTV combo kit.
Browse through the extensive list of CCTV Combo Kits at Moglix. Shop online for other CP Plus CCTV Combo Kits. available at Moglix in the lowest price range.
Read More
Product Specification Document
https://catalog-raw-images.s3.ap-south-1.amazonaws.com/Document/74413/CP-URC-DC24PL2C-V3.pdf
