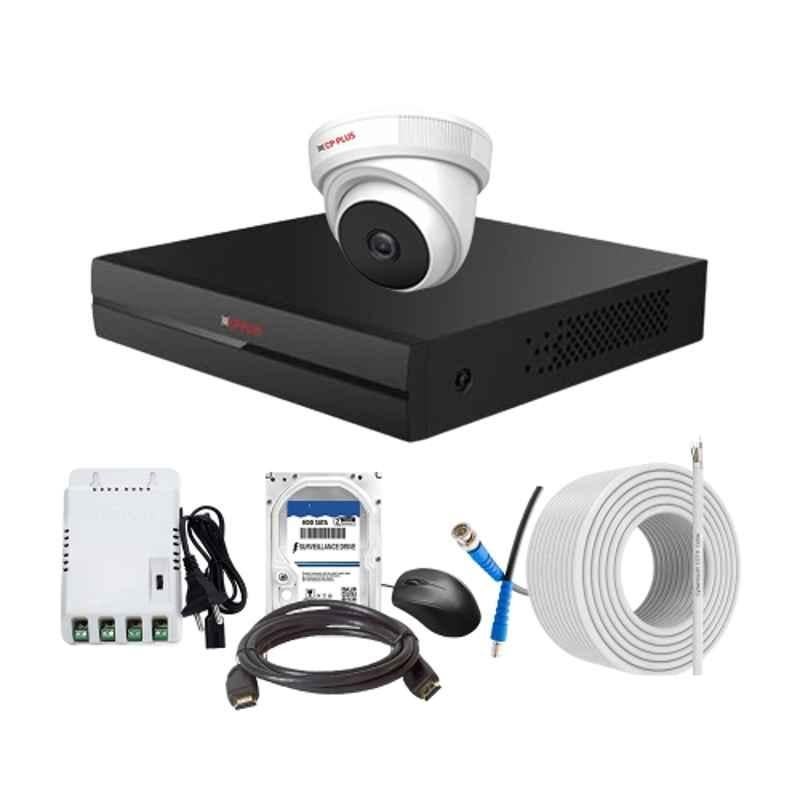

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Dome Camera, 4Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors

Name: CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Dome Camera, 4Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors
Brand: CP Plus
SKU: MSNL5GL2M4OYK4
Price: 12849 INR
Availability: OutOfStock

₹12,849 (Incl. of all taxes)

₹10,888 + ₹1,961 GST

MRP ₹18,339 29% OFF

AVAILABLE ON REQUEST

Storage Capacity

1 TB
2 TB
500 GB
NO HDD

Moglix Insights

About This Product

Key Features

2 Years Warranty on CP PLUS CCTV Combo.
1/2.7 inch 2.4MP CMOS Image Sensor (0.9407 cm).
Max 25/30fps at 2.4MP.
DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC.
3.6mm Fixed Lens (2.8mm optional).
IR Range of 20 Mtrs., Smart IR & Support Built-in Mic.
OSD Menu, control Over Coaxial Cable, 2D-DNR.
HD, SD and Two Analog format Output switchable.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 5 channels IP camera inputs, each channel up to 2MP; Max 20Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pr.

Show All Key Features

Product Specifications

Brand	CP Plus
Additional Details	Casing: Plastic CMS Software: KVMS Pro Mobile Software: iCMOB & gCMOB Record Interval: Default: 60 min, Pre-record: 1-30 sec & Post-record: 10-300 sec Playback Function: Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup, Selection & Digital Zoom
Audio Bit rate	64 Kbps Per Channel
Cable Length	70 m
Camera	2.4 MP
Ethernet	1 RJ-45 Port (100 Mbps)
Frequency Range	50-60 Hz
IR Range	20 m
Input Voltage	150-240 V AC
Leakage Current	Max: 0.008 Amp
Lens Size	3.6 mm
Model	Dome: CP-URC-DC24PL2C-V3 DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
Notes	The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Number of Channels	DVR & SMPS: 4
Operating System	Embedded LINUX
Operating Temperature	-40 to 60 deg C
Power Consumption	Dome: 2.3 W DVR: <10 W
Rated Power	48 W
Storage Capacity	1 TB
Storage Humidity	0-90%
Storage Temperature	Dome: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Video Compression	Instastream/H.265/H.264+/H.264
Video Recording	Sub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video Resolution	1920x1080p, 1280x1024p & 1280x720p
Video Streaming	2.4MP at 25/30fps & 25/30/50/60fps at720P
Voltage	12 V DC ±30% DVR: 12 V DC
Warranty	2 Years
Working Humidity	DVR: 10-90% SMPS: 5 to 95%
Working Temperature	DVR & SMPS: -10 to 45 deg C
Country of origin	India
Manufacturer Details	Aditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Packer Details	Aditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Common/Generic Name	CCTV Kit
Dimensions LxWxH	25x25x25cm
Weight	2 kg

Show All Specifications

Product Details

The CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit is a comprehensive surveillance solution. With its 4-channel DVR, 1 dome camera, 4-channel SMPS, 70m copper cable, 1TB HDD, and connectors, this kit provides everything you need for a robust security system. The CCTV combo kit is ideal for both indoor and outdoor use, ensuring complete coverage of your premises. The 3.6mm lens size offers a wide viewing angle, while the 70m cable length allows for flexible installation. Operating on an input voltage of 150-240 V AC and embedded with LINUX operating system, the kit functions flawlessly in various conditions. The DVR and SMPS can operate between -10 to 45 degrees Celsius, while the dome camera can withstand temperatures from -40 to 60 degrees Celsius. With an impressive IR range of 20m, this CCTV combo kit ensures clear images day and night.\n(Category Name: CCTV Combo Kits, Brand Name: CP Plus)

Browse through the extensive list of CCTV Combo Kits at Moglix. Shop online for other CP Plus CCTV Combo Kits. available at Moglix in the lowest price range.
