CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 6 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 6 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

Hover to Zoom

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 6 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

Name: CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 6 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector
Brand: CP Plus
SKU: MSNV5OOXZGE056
Price: 16739 INR
Availability: InStock

₹16,739 (Incl. of all taxes)

₹14,185 ₹2,554 GST

MRP ₹32,709 48% OFF

Storage Capacity

500 GB
1 TB
2 TB
NO HDD

Buy More & Save More

Qty 2

₹16,613 /pc

49% OFF

Qty 3

₹16,550 /pc

49% OFF

Qty 4 - 5

₹16,487 /pc

49% OFF

Qty 6 - 7

₹16,362 /pc

49% OFF

Qty 8+

₹16,236 /pc

50% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.

Get at

₹16,639

with Coupon & Offers

Extra ₹100 OFF

All Coupons & Offers

India’s Leading B2B Online Store

4.7

Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

Money Back

Genuine Product

Easy Return

Get GST Invoice

Secure Payments

365 Days Help Desk

Moglix Insights

About This Product

Key Features

2 Years Warranty on CP PLUS CCTV Combo.
1/2.7 inch 2.4MP CMOS Image Sensor (0.9407 cm).
Max 25/30fps at 2.4MP.
DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC.
3.6mm Fixed Lens (2.8mm optional).
IR Range of 20 Mtrs., Smart IR & Support Built-in Mic.
OSD Menu, control Over Coaxial Cable, 2D-DNR.
HD, SD and Two Analog format Output switchable.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 10 channels IP camera inputs, each channel up to 6MP; Max 40Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pro.

Show All Key Features

Product Specifications

Brand	CP Plus
Additional Details	Casing: Plastic CMS Software: KVMS Pro Mobile Software: iCMOB & gCMOB Record Interval: Default: 60 min, Pre-record: 1-30 sec & Post-record: 10-300 sec Playback Function: Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup, Selection & Digital Zoom
Audio Bit rate	64 Kbps Per Channel
Cable Length	70 m
Camera	2.4 MP
Ethernet	1 RJ-45 Port (100 Mbps)
Frequency Range	50-60 Hz
IR Range	20 m
Image Sensor	1/2.7 inch 2.4 Progressive Scan CMOS
Input Voltage	150-240 V AC
Leakage Current	Max: 0.008 Amp
Lens Size	3.6 mm
Minimum Illumination	0.04 Lux/F2.0, 30IRE & 0Lux IR on
Model	Dome: CP-URC-DC24PL2C-V3 Bullet: CP-URC-TC24PL2C-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
Notes	The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Number of Channels	DVR & SMPS: 8
Operating System	Embedded LINUX
Operating Temperature	-40 to 60 deg C
Power Consumption	Bullet: 2.7 W DVR: <10 W
Rated Power	48 W
Standards	IP67
Storage Capacity	500 GB
Storage Humidity	0-90%
Storage Temperature	Bullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Video Compression	Instastream/H.265/H.264+/H.264
Video Recording	Sub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Resolution	1920x1080p, 1280x1024p & 1280x720p
Video Streaming	2.4MP at 25/30fps & 25/30/50/60fps at720P
Voltage	12 V DC ±30% DVR: 12 V DC
Warranty	2 Years
Working Humidity	DVR: 10-90% SMPS: 5 to 95%
Working Temperature	DVR & SMPS: -10 to 45 deg C
Country of origin	India
Manufacturer Details	Aditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Packer Details	Aditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Common/Generic Name	CCTV Kit
Dimensions LxWxH	25x25x25cm
Weight	2 kg

Show All Specifications

Product Details

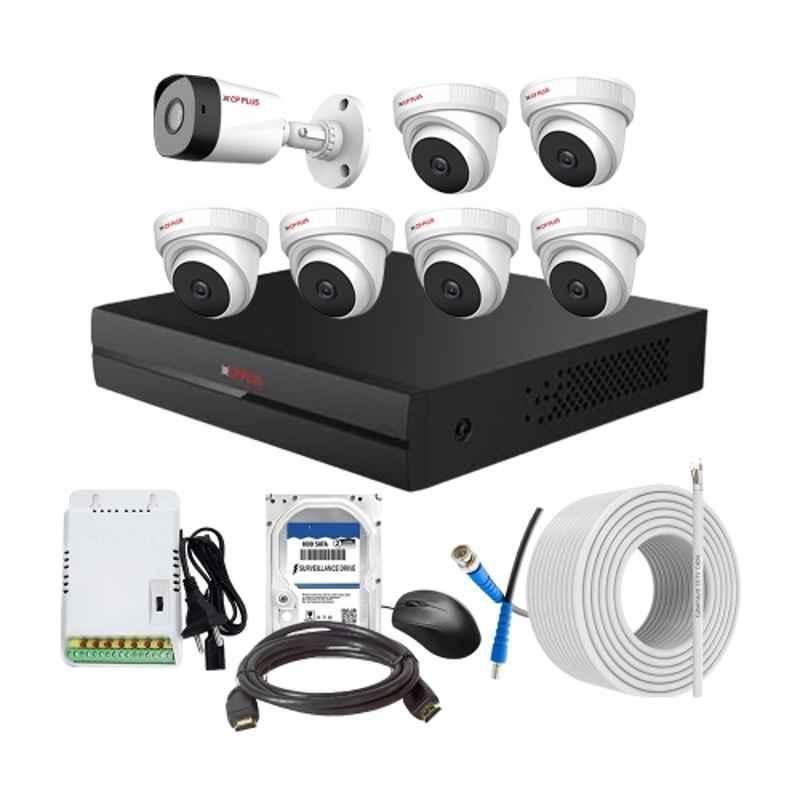

Introducing the CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit, designed to provide complete surveillance for your home or office. This kit includes an 8-channel DVR, 1 bullet camera, 6 dome cameras, an 8-channel SMPS, a 70m cable, 500GB HDD, and connector, making it perfect for both indoor and outdoor use. The CP Plus brand ensures excellent quality and reliability. The camera lens size is 3.6mm, offering a wide field of view. With a cable length of 70m, the cameras can be placed at a distance from the DVR. The input voltage range is 150-240V AC, ensuring compatibility. The embedded LINUX operating system provides efficient and secure performance. The DVR and SMPS can withstand temperatures between -10 to 45 degrees Celsius, ensuring durability in extreme conditions. The cameras have an impressive IR range of 20m for clear night vision. With an operating temperature range of -40 to 60 degrees Celsius, these cameras can withstand harsh weather conditions. Experience superior surveillance with the CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit.
