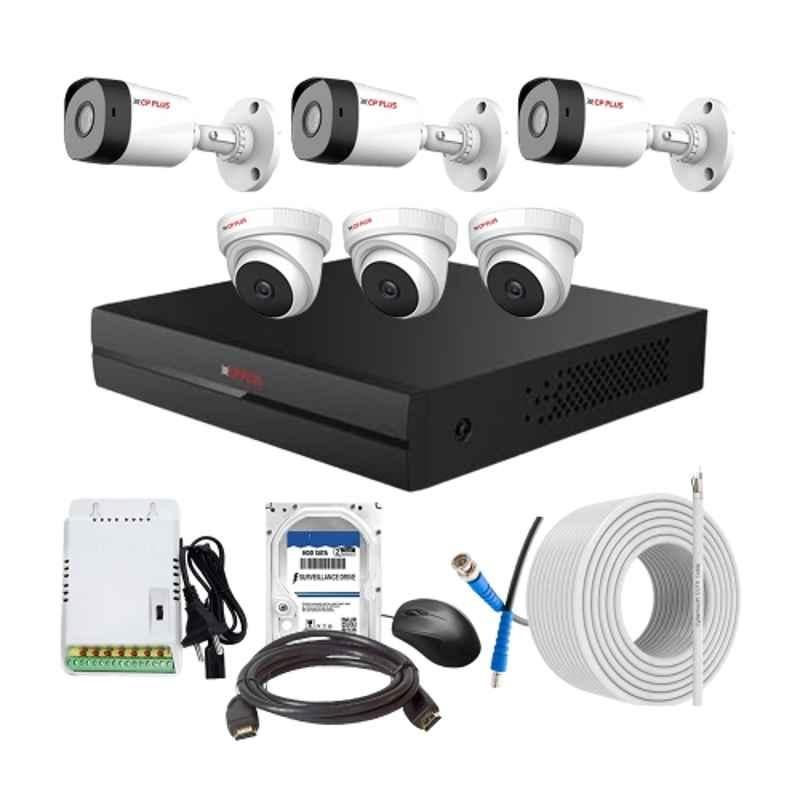

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 3 Dome 3 Bullet Camera, 8Ch SMPS, 70m Cable, 2TB HDD & Connector
₹21,889 (Incl. of all taxes)
₹18,550 ₹3,339 GST
MRP ₹37,489 41% OFF
Buy More & Save More
Qty 2
₹21,724 /pc
42% OFF
Qty 3
₹21,642 /pc
42% OFF
Qty 4 - 5
₹21,560 /pc
42% OFF
Qty 6 - 7
₹21,396 /pc
42% OFF
Qty 8+
₹21,232 /pc
43% OFF
Sign Up & Earn 10 Mogli Coins
& save extra money on your next purchase.
Get at
₹21,789
with Coupon & Offers
Extra ₹100 OFF
All Coupons & Offers
India’s Leading B2B Online Store
4.7
Avg. Rating
50+ Lac
Orders Delivered
93%
Happy Customers
Money Back
Genuine Product
Easy Return
Get GST Invoice
Secure Payments
365 Days Help Desk
Moglix Insights
About This Product
Key Features
2 Years Warranty on CP PLUS CCTV Combo.
1/2.7 inch 2.4MP CMOS Image Sensor (0.9407 cm).
Max 25/30fps at 2.4MP.
DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC.
3.6mm Fixed Lens (2.8mm optional).
IR Range of 20 Mtrs., Smart IR & Support Built-in Mic.
OSD Menu, control Over Coaxial Cable, 2D-DNR.
HD, SD and Two Analog format Output switchable.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 10 channels IP camera inputs, each channel up to 6MP; Max 40Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pro.
Show All Key Features
Product Specifications
Brand | |
Additional Details | Casing: Plastic CMS Software: KVMS Pro Mobile Software: iCMOB & gCMOB Record Interval: Default: 60 min, Pre-record: 1-30 sec & Post-record: 10-300 sec Playback Function: Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup, Selection & Digital Zoom |
Audio Bit rate | 64 Kbps Per Channel |
Cable Length | 70 m |
Camera | 2.4 MP |
Ethernet | 1 RJ-45 Port (100 Mbps) |
Frequency Range | 50-60 Hz |
IR Range | 20 m |
Image Sensor | 1/2.7 inch 2.4 Progressive Scan CMOS |
Input Voltage | 150-240 V AC |
Leakage Current | Max: 0.008 Amp |
Lens Size | 3.6 mm |
Minimum Illumination | 0.04 Lux/F2.0, 30IRE & 0Lux IR on |
Model | Dome: CP-URC-DC24PL2C-V3 Bullet: CP-URC-TC24PL2C-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D |
Notes | The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided |
Number of Channels | DVR & SMPS: 8 |
Operating System | Embedded LINUX |
Operating Temperature | -40 to 60 deg C |
Power Consumption | Bullet: 2.7 W DVR: <10 W |
Rated Power | 48 W |
Standards | IP67 |
Storage Capacity | 2 TB |
Storage Humidity | 0-90% |
Storage Temperature | Bullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C |
Video Compression | Instastream/H.265/H.264+/H.264 |
Video Recording | Sub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps) |
Video Resolution | 1920x1080p, 1280x1024p & 1280x720p |
Video Streaming | 2.4MP at 25/30fps & 25/30/50/60fps at720P |
Voltage | 12 V DC ±30% DVR: 12 V DC |
Warranty | 2 Years |
Working Humidity | DVR: 10-90% SMPS: 5 to 95% |
Working Temperature | DVR & SMPS: -10 to 45 deg C |
Country of origin | India |
Manufacturer Details | Aditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India |
Packer Details | Aditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India |
Common/Generic Name | CCTV Kit |
Dimensions LxWxH | 25x25x25cm |
Weight | 2 kg |
Show All Specifications
Product Details
Introducing the CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit, the perfect security solution for your home or business. This kit combines high-quality components to give you peace of mind and reliable surveillance. The kit includes an 8-channel DVR with embedded LINUX operating system for seamless performance. It also comes with 3 dome and 3 bullet cameras, all equipped with a 3.6 mm lens size, ensuring clear and detailed footage. The included 70m cable allows for flexibility in camera placement, and the 2TB HDD ensures ample storage for your recordings. With an input voltage of 150-240 V AC, this kit is suitable for various power sources. The DVR and SMPS can operate in temperatures ranging from -10 to 45 degrees Celsius, while the cameras can withstand temperatures as low as -40 and as high as 60 degrees Celsius. With an IR range of 20m, you can monitor your premises even in low light conditions. Trust the brand name CP Plus for top-notch security solutions.
Browse through the extensive list of CCTV Combo Kits at Moglix. Shop online for other CP Plus CCTV Combo Kits. available at Moglix in the lowest price range.
Read More
Product Specification Document
Looking to purchase CCTV Combo Kits in bulk?
Purchase item in bulk quantity
Get at best price for your business
Frequently Asked Questions Have doubts regarding this product?
