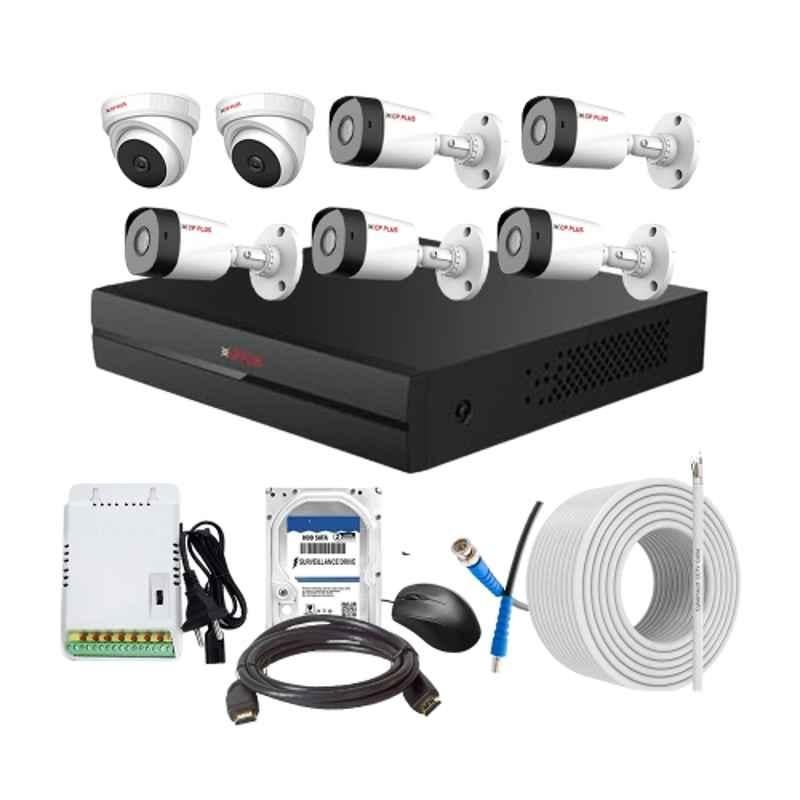

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Bullet 2 Dome Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector

Name: CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Bullet 2 Dome Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector
Brand: CP Plus
SKU: MSNE5N8YXWVYKL
Price: 21619 INR
Availability: OutOfStock

₹21,619 (Incl. of all taxes)

₹18,321 + ₹3,298 GST

MRP ₹37,259 41% OFF

AVAILABLE ON REQUEST

Storage Capacity

1 TB
2 TB
500 GB
NO HDD

Moglix Insights

CP Plus is top brand in cctv combo kits, preferred by 40% of the users

10% of the users prefer cctv combo kits in ₹20000-22000 price range

About This Product

Key Features

2 Years Warranty on CP PLUS CCTV Combo.
1/2.7 inch 2.4MP CMOS Image Sensor (0.9407 cm).
Max 25/30fps at 2.4MP.
DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC.
3.6mm Fixed Lens (2.8mm optional).
IR Range of 20 Mtrs., Smart IR & Support Built-in Mic.
OSD Menu, control Over Coaxial Cable, 2D-DNR.
HD, SD and Two Analog format Output switchable.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 10 channels IP camera inputs, each channel up to 6MP; Max 40Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pro.

Show All Key Features

Product Specifications

Brand	CP Plus
Additional Details	Casing: Plastic CMS Software: KVMS Pro Mobile Software: iCMOB & gCMOB Record Interval: Default: 60 min, Pre-record: 1-30 sec & Post-record: 10-300 sec Playback Function: Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup, Selection & Digital Zoom
Audio Bit rate	64 Kbps Per Channel
Cable Length	70 m
Camera	2.4 MP
Ethernet	1 RJ-45 Port (100 Mbps)
Frequency Range	50-60 Hz
IR Range	20 m
Image Sensor	1/2.7 inch 2.4 Progressive Scan CMOS
Input Voltage	150-240 V AC
Leakage Current	Max: 0.008 Amp
Lens Size	3.6 mm
Minimum Illumination	0.04 Lux/F2.0, 30IRE & 0Lux IR on
Model	Dome: CP-URC-DC24PL2C-V3 Bullet: CP-URC-TC24PL2C-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
Notes	The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Number of Channels	DVR & SMPS: 8
Operating System	Embedded LINUX
Operating Temperature	-40 to 60 deg C
Power Consumption	Bullet: 2.7 W DVR: <10 W
Rated Power	48 W
Standards	IP67
Storage Capacity	1 TB
Storage Humidity	0-90%
Storage Temperature	Bullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Video Compression	Instastream/H.265/H.264+/H.264
Video Recording	Sub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Resolution	1920x1080p, 1280x1024p & 1280x720p
Video Streaming	2.4MP at 25/30fps & 25/30/50/60fps at720P
Voltage	12 V DC ±30% DVR: 12 V DC
Warranty	2 Years
Working Humidity	DVR: 10-90% SMPS: 5 to 95%
Working Temperature	DVR & SMPS: -10 to 45 deg C
Country of origin	India
Manufacturer Details	Aditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Packer Details	Aditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Common/Generic Name	CCTV Kit
Dimensions LxWxH	25x25x25cm
Weight	2 kg

Show All Specifications

Product Details

The CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit is a comprehensive surveillance solution designed for both indoor and outdoor settings. With a Category Name of 'CCTV Combo Kits', this kit is part of the CP Plus brand, known for its reliability and high-quality products.

The kit includes a powerful 8Ch DVR that ensures smooth and efficient recording of footage. It supports Full HD resolution, providing crystal-clear images. The 5 bullet and 2 dome cameras included in the kit have a lens size of 3.6 mm, capturing a broad field of view to monitor large areas effectively.

With a cable length of 70m, installation is hassle-free, allowing for flexible placement of the cameras. The kit also includes an 8Ch SMPS, ensuring a stable power supply to the system. For storage, the kit comes with a 1TB HDD, providing ample space for recording and archiving footage.

Equipped with an embedded LINUX operating system, the system is reliable and easy to use. It has a wide operating temperature range of -10 to 45 deg C, ensuring optimal performance even in extreme conditions. The IR range of 20m enables clear night vision capabilities.

Overall, the CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit is a comprehensive and reliable surveillance solution that provides high-quality video footage for both indoor and outdoor settings.
