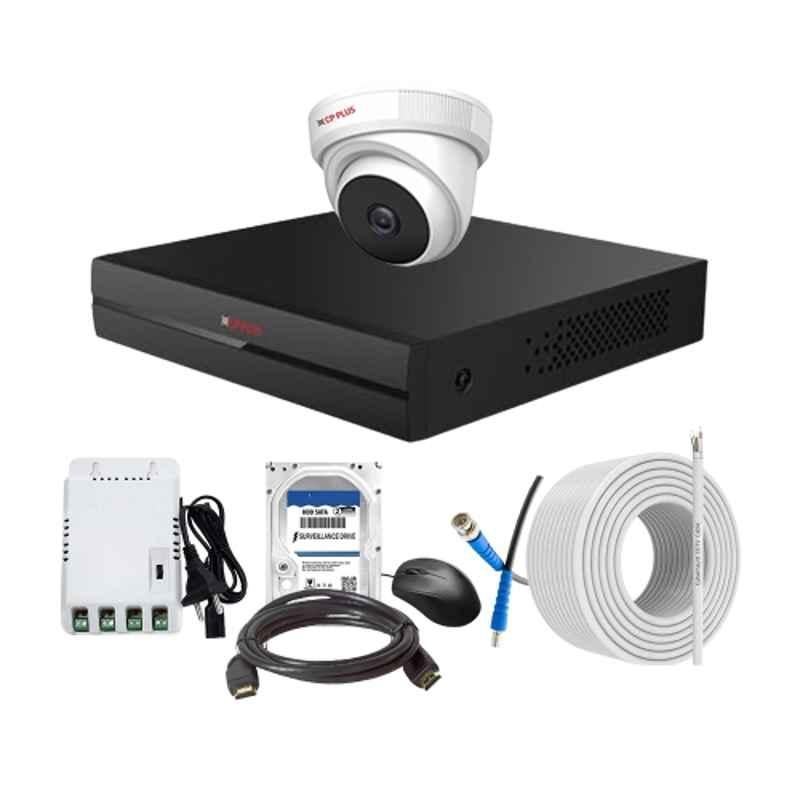

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Dome Camera, 4Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Dome Camera, 4Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors

Hover to Zoom

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Dome Camera, 4Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors

Name: CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Dome Camera, 4Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors
Brand: CP Plus
SKU: MSN8580Z1X0492
Price: 11819 INR
Availability: InStock

₹11,819 (Incl. of all taxes)

₹10,016 ₹1,803 GST

MRP ₹18,029 34% OFF

Storage Capacity

1 TB
2 TB
500 GB
NO HDD

Buy More & Save More

Qty 2

₹11,730 /pc

34% OFF

Qty 3

₹11,686 /pc

35% OFF

Qty 4 - 5

₹11,641 /pc

35% OFF

Qty 6 - 7

₹11,553 /pc

35% OFF

Qty 8+

₹11,464 /pc

36% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.

Get Best Offers & Coupons

for Your Purchase

All Coupons & Offers

India’s Leading B2B Online Store

4.7

google_logo Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

Money Back

Genuine Product

Easy Return

Get GST Invoice

Secure Payments

365 Days Help Desk

Moglix Insights

About This Product

Key Features

2 Years Warranty on CP PLUS CCTV Combo.
1/2.7 inch 2.4MP CMOS Image Sensor (0.9407 cm).
Max 25/30fps at 2.4MP.
DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC.
3.6mm Fixed Lens (2.8mm, 6mm optional).
IR Range of 20 Mtrs, OSD Menu, Control Over Coaxial Cable, 2D-DNR.
HD, SD and Two Analog Format Output Switchable.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 5 channels IP camera inputs, each channel up to 2MP; Max 20Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pr.

Show All Key Features

Product Specifications

Brand	CP Plus
Additional Details	Casing: Plastic Max Aperture: F1.85
Audio Bit rate	64 Kbps Per Channel
Cable Length	70 m
Camera	2.4 MP
Ethernet	1 RJ-45 Port (100 Mbps)
Frequency Range	50-60 Hz
IR Range	20 m
Image Sensor	1/2.7 inch 2.4MP CMOS
Input Voltage	150-240 V AC
Leakage Current	Max: 0.008 Amp
Lens Size	3.6 mm
Minimum Illumination	0.04 Lux/F1.85, 30IRE & 0 Lux IR On
Model	Dome: CP-URC-DC24PL2-V3 DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
Notes	The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Number of Channels	DVR & SMPS: 4
Operating System	Embedded LINUX
Operating Temperature	-40 to 60 deg C
Power Consumption	Dome: 2.3 W DVR: <10 W
Rated Power	48 W
Standards	IP67
Storage Capacity	1 TB
Storage Humidity	0-90%
Storage Temperature	DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Video Compression	Instastream/H.265/H.264+/H.264
Video Recording	Sub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video Resolution	1920x1080p, 1280x1024p & 1280x720p
Video Streaming	2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Voltage	12 V DC ±30% DVR: 12 V DC
Warranty	2 Years
Working Humidity	DVR: 10-90% SMPS: 5 to 95%
Working Temperature	DVR & SMPS: -10 to 45 deg C
Country of origin	India
Manufacturer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Packer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Common/Generic Name	CCTV Kit
Dimensions LxWxH	25x25x25 cm
Weight	2 kg

Show All Specifications

Product Details

The CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit is the ultimate security solution for both indoor and outdoor spaces. This kit includes a 4Ch DVR, 1 Dome Camera, 4Ch SMPS, 70m Copper Cable, 1TB HDD, and Connectors. With the CP Plus brand, you can trust in the quality and reliability of this kit.

Featuring a lens size of 3.6 mm, this CCTV system captures clear and detailed footage. The included 70m copper cable ensures convenient installation and flexibility in camera placement. The input voltage range of 150-240 V AC allows for compatibility with a wide range of power sources.

This system operates on an embedded LINUX operating system, ensuring stability and security. With a working temperature range of -10 to 45 deg C for both the DVR and SMPS, this kit performs reliably in various weather conditions. The IR range of 20m provides excellent night vision capabilities, allowing you to monitor your property around the clock.

Designed to withstand extreme temperatures, this CCTV combo kit has an operating temperature range of -40 to 60 deg C. The CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit is the perfect choice for those seeking a comprehensive and robust security solution.

Browse through the extensive list of CCTV Combo Kits at Moglix. Shop online for other CP Plus CCTV Combo Kits. available at Moglix in the lowest price range.
