₹8,799 (Incl. of all taxes)
₹7,456 ₹1,343 GST
MRP ₹16,729 47% OFF
Qty 2
₹8,733 /pc
47% OFF
Qty 3
₹8,700 /pc
47% OFF
Qty 4 - 5
₹8,667 /pc
48% OFF
Qty 6 - 7
₹8,601 /pc
48% OFF
Qty 8+
₹8,535 /pc
48% OFF
Sign Up & Earn 10 Mogli Coins
& save extra money on your next purchase.

with Coupon & Offers
All Coupons & Offers
India’s Leading B2B Online Store
Avg. Rating
Orders Delivered
Happy Customers
CP Plus is one of the top brand in cctv combo kits, preferred by 25% of the users
16% of the users prefer cctv combo kits in ₹8000-9000 price range

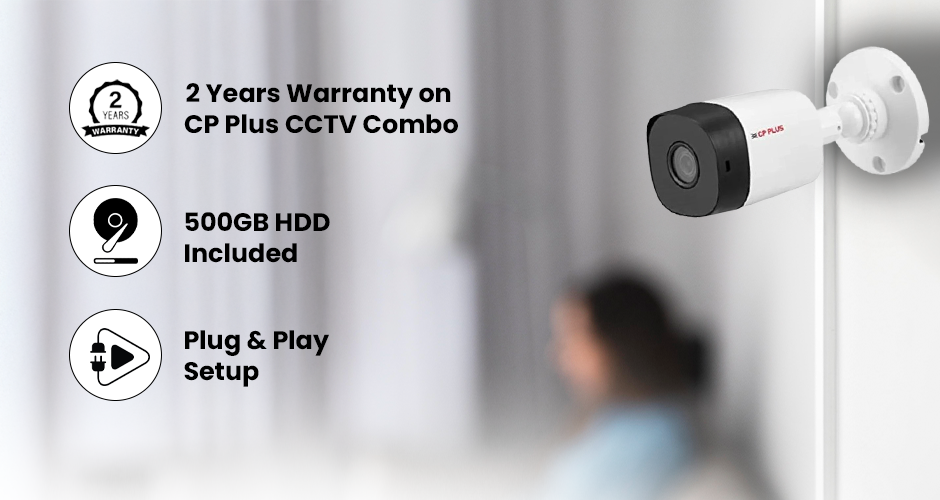

2 Years Warranty on CP PLUS CCTV Combo.

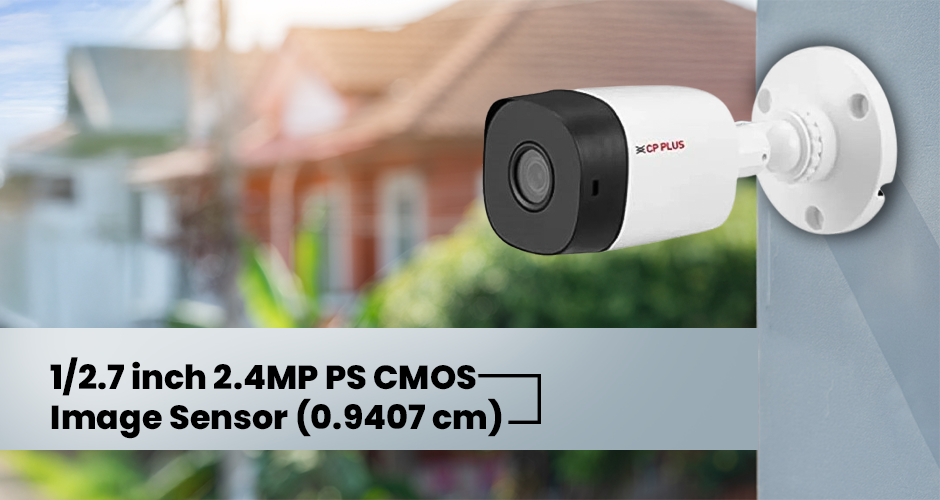

1/2.7 inch 2.4MP PS CMOS Image Sensor (0.9407 centimetres).
Max. 2MP at 30fps.
DWDR, Day/Night (ICR), 2D DNR, AWB, AGC, BLC, HLC.
3.6mm Fixed Lens (6mm optional).
IR Range of 20 Mtrs., Smart IR & IP67.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 5 channels IP camera inputs, each channel up to 2MP; Max 20Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pr.
Brand | |
Additional Details | Casing: Plastic Max Aperture: F1.85 Mount Type: M12 |
Audio Bit rate | 64 Kbps Per Channel |
Cable Length | 70 m |
Camera | 2.4 MP |
Ethernet | 1 RJ-45 Port (100 Mbps) |
Frequency Range | 50-60 Hz |
IR Range | 20 m |
Image Sensor | 1/2.7 inch 2.4MP CMOS |
Input Voltage | 150-240 V AC |
Leakage Current | Max: 0.008 Amp |
Lens Size | 3.6 mm |
Minimum Illumination | 0.04 Lux/F1.85, 30IRE & 0 Lux IR On |
Model | Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D |
Notes | The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided |

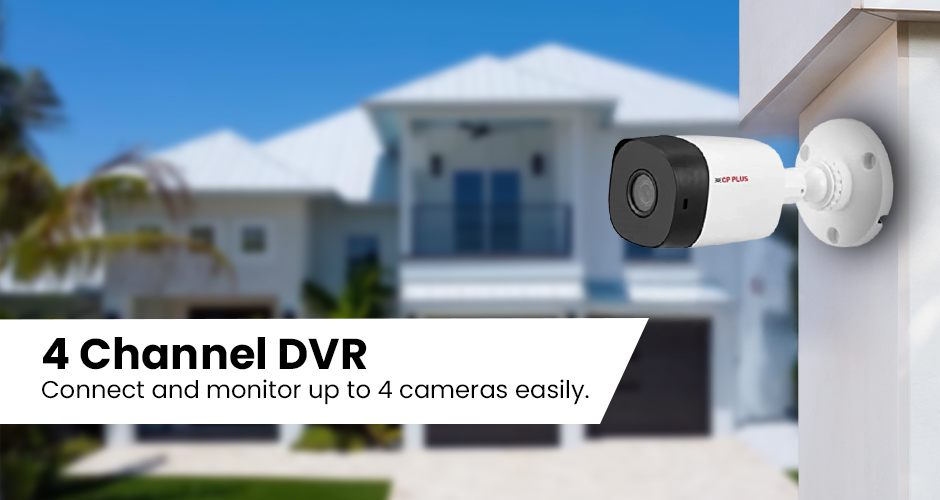

Number of Channels | DVR & SMPS: 4 |
Operating System | Embedded LINUX |
Operating Temperature | -40 to 60 deg C |
Power Consumption | Bullet: 2.7 W DVR: <10 W |
Rated Power | 48 W |
Standards | IP67 |
Storage Capacity | 500 GB |
Storage Humidity | 0-90% |
Storage Temperature | DVR: -20 to 70 deg C SMPS: -40 to 70 deg C |
Video Compression | Instastream/H.265/H.264+/H.264 |
Video Recording | Sub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps) |
Video Resolution | 1920x1080p, 1280x1024p & 1280x720p |
Voltage | 12 V DC ±30% DVR: 12 V DC |
Warranty | 2 Years |
Working Humidity | DVR: 10-90% SMPS: 5 to 95% |
Working Temperature | DVR & SMPS: -10 to 45 deg C |
Country of origin | India |
Manufacturer Details | Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India |
Packer Details | Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India |
Common/Generic Name | CCTV Kit |
Dimensions LxWxH | 25x25x25 cm |
Weight | 2 kg |

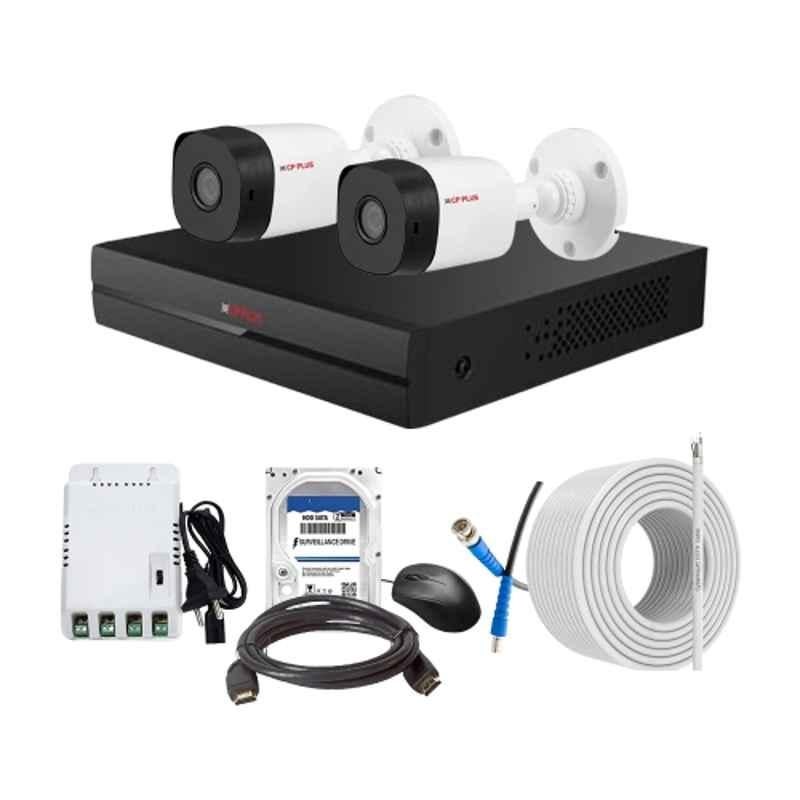

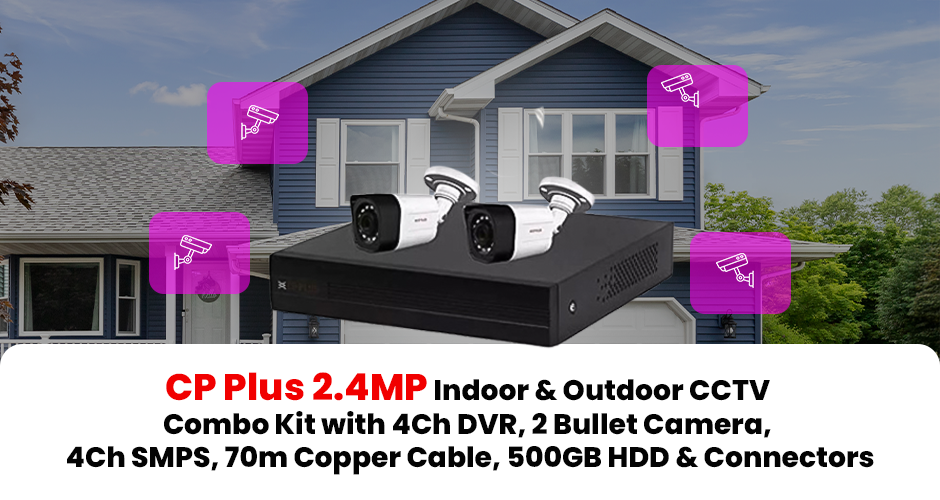

Introducing the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, the ultimate surveillance solution for both indoor and outdoor spaces. This comprehensive kit includes a 4Ch DVR, 2 high-quality bullet cameras, a 4Ch SMPS, 70m of reliable copper cable, a 500GB HDD, and all the necessary connectors.
With its 3.6mm lens size, this kit ensures clear and detailed footage, capturing every important moment. The 70m cable length allows for flexible installation, making it suitable for various locations. Operating on an input voltage of 150-240 V AC, this combo kit is designed to adapt to different power requirements.
Embedded with the LINUX operating system, the DVR guarantees smooth and efficient performance. Both the DVR and SMPS can endure extreme temperatures, ranging from -10 to 45 degrees Celsius, ensuring reliable operation even in harsh conditions.
Thanks to an impressive IR range of 20m, this CCTV combo kit provides excellent night vision capabilities. It can effectively monitor your premises day and night, for the utmost security.
The CP Plus brand is renowned for its superior quality and innovative technology. Trust in CP Plus to provide you with top-of-the-line surveillance solutions. Enhance your security with the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, perfect for both residential and commercial use.
Browse through the extensive list of CCTV Combo Kits at Moglix. Shop online for other CP Plus CCTV Combo Kits. available at Moglix in the lowest price range.

Purchase item in bulk quantity
Get at best price for your business

































Displaying Questions 2 / 3
Ans:
Haan, isme 2 bullet cameras hain jo waterproof design ke saath aate hain ? indoor aur outdoor dono ke liye suitable hain.
Ans:
Haan, isme 500GB HDD included hai jo aapko lagbhag 10?15 din tak ki recording store karne ki capacity deta hai (usage par depend karta hai).
