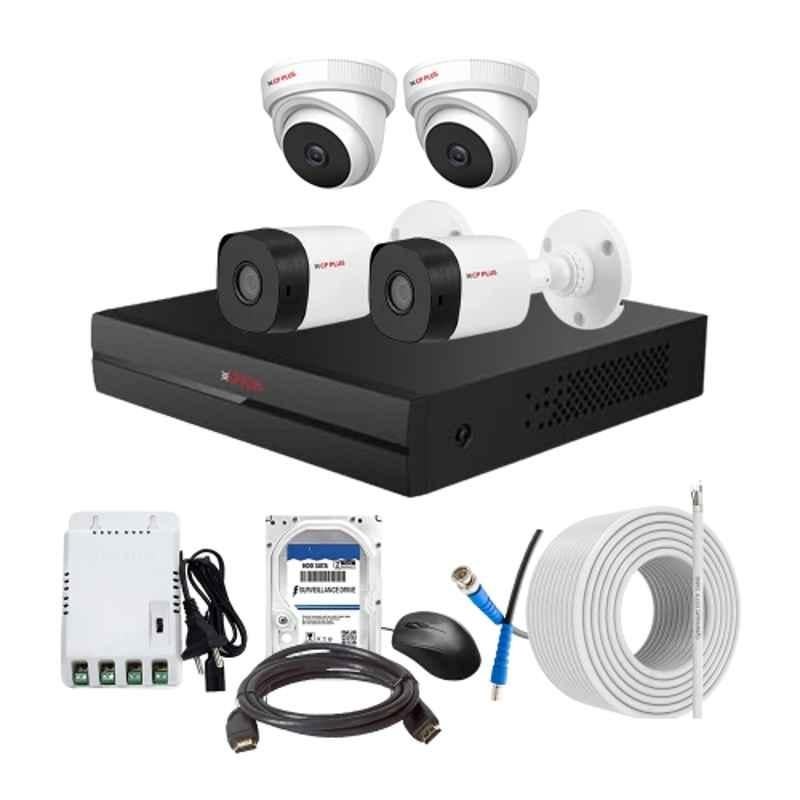

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome 2 Bullet Camera, 4Ch SMPS, 70m Cable, 2TB HDD & Connector

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome 2 Bullet Camera, 4Ch SMPS, 70m Cable, 2TB HDD & Connector

Hover to Zoom

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome 2 Bullet Camera, 4Ch SMPS, 70m Cable, 2TB HDD & Connector

Name: CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome 2 Bullet Camera, 4Ch SMPS, 70m Cable, 2TB HDD & Connector
Brand: CP Plus
SKU: MSNO5WNVMLMW51
Price: 16449 INR
Availability: InStock

₹16,449 (Incl. of all taxes)

₹13,939 ₹2,510 GST

MRP ₹30,869 46% OFF

Storage Capacity

2 TB
1 TB
500 GB
NO HDD

Buy More & Save More

Qty 2

₹16,325 /pc

47% OFF

Qty 3

₹16,263 /pc

47% OFF

Qty 4 - 5

₹16,202 /pc

47% OFF

Qty 6 - 7

₹16,078 /pc

47% OFF

Qty 8+

₹15,955 /pc

48% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.

Get at

₹16,349

with Coupon & Offers

Extra ₹100 OFF

All Coupons & Offers

India’s Leading B2B Online Store

4.7

Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

Money Back

Genuine Product

Easy Return

Get GST Invoice

Secure Payments

365 Days Help Desk

Moglix Insights

About This Product

Key Features

2 Years Warranty on CP PLUS CCTV Combo.
1/2.7 inch 2.4MP PS CMOS Image Sensor (0.9407 centimetres).
Max. 2MP at 30fps.
DWDR, Day/Night (ICR), 2D DNR, AWB, AGC, BLC, HLC.
3.6mm Fixed Lens (6mm optional).
IR Range of 20 Mtrs., Smart IR & IP67.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 5 channels IP camera inputs, each channel up to 2MP; Max 20Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pr.

Show All Key Features

Product Specifications

Brand	CP Plus
Additional Details	Dome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Audio Bit rate	64 Kbps Per Channel
Cable Length	70 m
Camera	2.4 MP
Ethernet	1 RJ-45 Port (100 Mbps)
Frequency Range	50-60 Hz
IR Range	20 m
Image Sensor	Dome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage	150-240 V AC
Leakage Current	Max: 0.008 Amp
Lens Size	3.6 mm
Minimum Illumination	0.04 Lux/F1.85, 30IRE & 0Lux IR on
Model	Dome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
Notes	The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Number of Channels	DVR & SMPS: 4
Operating System	Embedded LINUX
Operating Temperature	-40 to 60 deg C
Power Consumption	Dome: 2.3 W Bullet: 2.7 W DVR: <10 W
Rated Power	48 W
Standards	IP67
Storage Capacity	2 TB
Storage Humidity	0-90%
Video Compression	Instastream/H.265/H.264+/H.264
Video Recording	Sub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video Resolution	1920x1080p, 1280x1024p & 1280x720p
Video Streaming	Dome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Voltage	12 V DC ±30% DVR: 12 V DC
Warranty	2 Years
Working Humidity	DVR: 10-90% SMPS: 5 to 95%
Working Temperature	DVR & SMPS: -10 to 45 deg C
Country of origin	India
Manufacturer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Packer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Common/Generic Name	CCTV Kit
Dimensions LxWxH	25x25x25 cm
Weight	2 kg

Show All Specifications

Product Details

The CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome 2 Bullet Camera, 4Ch SMPS, 70m Cable, 2TB HDD \u0026 Connector is the perfect solution for your surveillance needs. This CCTV combo kit includes everything you need to set up a reliable and efficient security system.

The kit includes a 4-channel DVR, which allows you to monitor and record footage from up to four cameras simultaneously. With the embedded LINUX operating system, you can expect seamless performance and easy operation. The kit also comes with a 2TB HDD, providing you with ample storage space for your recordings.

Featuring 2 dome and 2 bullet cameras, this kit allows you to monitor both indoor and outdoor areas. The cameras have a lens size of 3.6mm, providing a wide viewing angle for comprehensive coverage. With an impressive IR range of 20m, you can expect clear and detailed footage even in low-light conditions.

The kit also includes a 4Ch SMPS and a 70m cable, ensuring a hassle-free installation process. The cable length of 70m allows for flexible camera placement and easy connectivity. With an input voltage of 150-240V AC, you can use this CCTV combo kit in a variety of settings.

Designed by the renowned brand CP Plus, this CCTV combo kit offers unmatched quality and reliability. With a working temperature range of -10 to 45 deg C for the DVR and SMPS, and an operating temperature range of -40 to 60 deg C for the cameras, you can trust this kit to withstand various weather conditions.

Overall, the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome 2 Bullet Camera, 4Ch SMPS, 70m Cable, 2TB HDD \u0026 Connector is a comprehensive and dependable solution for all your surveillance needs. Choose this kit for peace of mind and enhanced security.

Browse through the extensive list of CCTV Combo Kits at Moglix. Shop online for other CP Plus CCTV Combo Kits. available at Moglix in the lowest price range.
