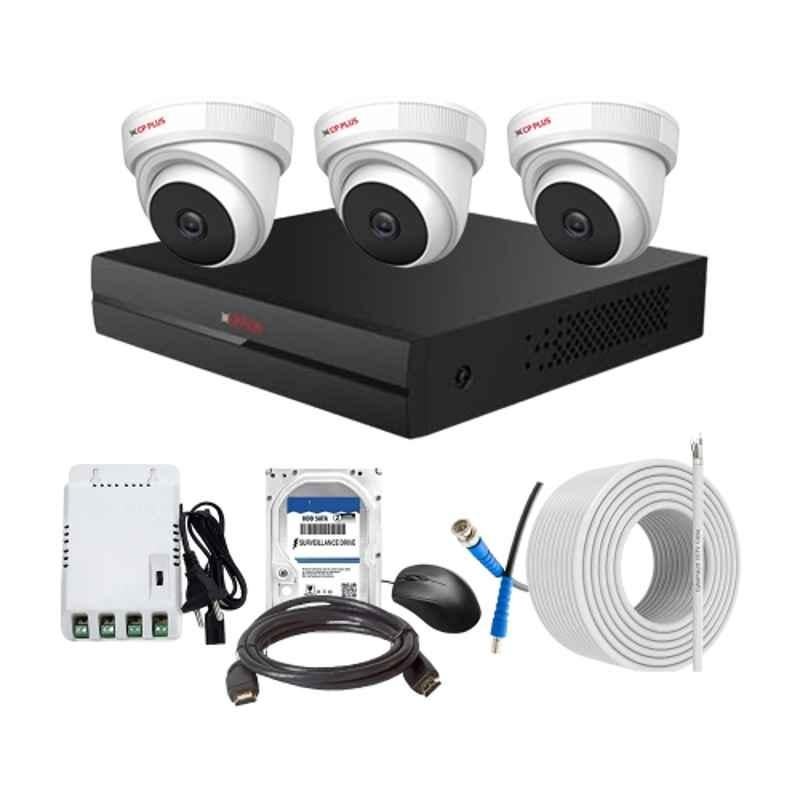

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Dome Camera, 4Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors

₹9,379 (Incl. of all taxes)

₹7,948 ₹1,431 GST

MRP ₹18,519 49% OFF

Storage Capacity

Buy More & Save More

Qty 2

₹9,308 /pc

49% OFF

Qty 3

₹9,273 /pc

49% OFF

Qty 4 - 5

₹9,238 /pc

50% OFF

Qty 6 - 7

₹9,167 /pc

50% OFF

Qty 8+

₹9,097 /pc

50% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.
deal and offer image
Get at
₹9,279

with Coupon & Offers

Extra ₹100 OFF

All Coupons & Offers

India’s Leading B2B Online Store

4.7

  Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

  Trusted by 2.5 Cr for 10+ Years
Money Back
Genuine Product
Easy Return
Get GST Invoice
Secure Payments
365 Days Help Desk

Moglix Insights

CP Plus is one of the top brand in cctv combo kits, preferred by 35% of the users

About This Product

Key Features

  • 2 Years Warranty on CP PLUS CCTV Combo.

  • 1/2.7 inch 2.4MP CMOS Image Sensor (0.9407 cm).

  • Max 25/30fps at 2.4MP.

  • DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC.

  • 3.6mm Fixed Lens (2.8mm, 6mm optional).

  • IR Range of 20 Mtrs, OSD Menu, Control Over Coaxial Cable, 2D-DNR.

  • HD, SD and Two Analog Format Output Switchable.

  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs.

  • Max 5 channels IP camera inputs, each channel up to 2MP; Max 20Mbps Incoming Bandwidth.

  • Support 1 SATA HDD up to 6TB, 2 USB Ports.

  • 1 HDMI / 1 VGA Simultaneous Video Output.

  • Instastream/H.265/H.264+/H.264 video compression.

  • Mobile Software: iCMOB, gCMOB.

  • CMS Software: KVMS Pr.

Show All Key Features

Product Specifications

Brand
Additional Details
Casing: Plastic
Max Aperture: F1.85
Audio Bit rate
64 Kbps Per Channel
Cable Length
70 m
Camera
2.4 MP
Ethernet
1 RJ-45 Port (100 Mbps)
Frequency Range
50-60 Hz
IR Range
20 m
Image Sensor
1/2.7 inch 2.4MP CMOS
Input Voltage
150-240 V AC
Leakage Current
Max: 0.008 Amp
Lens Size
3.6 mm
Minimum Illumination
0.04 Lux/F1.85, 30IRE & 0 Lux IR On
Model
Dome: CP-URC-DC24PL2-V3
DVR: CP-UVR-0401E1-CV5
SMPS: CP-LPS-PD04-12D
Notes
The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Number of Channels
DVR & SMPS: 4
Operating System
Embedded LINUX
Operating Temperature
-40 to 60 deg C
Power Consumption
Dome: 2.3 W
DVR: <10 W
Rated Power
48 W
Standards
IP67
Storage Capacity
500 GB
Storage Humidity
0-90%
Storage Temperature
DVR: -20 to 70 deg C
SMPS: -40 to 70 deg C
Video Compression
Instastream/H.265/H.264+/H.264
Video Recording
Sub Stream: CIF/QCIF (1-15 fps)
Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video Resolution
1920x1080p, 1280x1024p & 1280x720p
Video Streaming
2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Voltage
12 V DC ±30%
DVR: 12 V DC
Warranty
2 Years
Working Humidity
DVR: 10-90%
SMPS: 5 to 95%
Working Temperature
DVR & SMPS: -10 to 45 deg C
Country of origin
India
Manufacturer Details
Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Packer Details
Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Common/Generic Name
CCTV Kit
Dimensions LxWxH
25x25x25 cm
Weight
2 kg
Show All Specifications

Product Details

Introducing the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, the ultimate solution for your security needs. Whether for residential or commercial use, this kit includes everything you need to ensure the safety of your space.

The kit features a 4-channel DVR that allows you to monitor and record footage with ease. With its embedded LINUX operating system, you can have peace of mind knowing that your recordings are secure. The DVR and SMPS have a working temperature range of -10 to 45 degrees Celsius, making it suitable for various environments.

Included in the kit are 3 high-quality dome cameras, equipped with a lens size of 3.6mm. These cameras provide clear and detailed images, allowing you to easily identify any potential threats. With an impressive IR range of 20m, you can rely on these cameras to capture footage even in low light conditions.

With a cable length of 70m, you can easily connect the cameras to the DVR, ensuring a hassle-free installation. The kit also includes a 500GB HDD, providing ample storage space for your recordings. Additionally, all necessary connectors are included for your convenience.

Experience top-notch security with the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit. Rest easy knowing that your space is protected by a reliable and trusted brand.

Browse through the extensive list of CCTV Combo Kits at Moglix. Shop online for other CP Plus CCTV Combo Kits. available at Moglix in the lowest price range.
