CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 4 Dome Camera, 4Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 4 Dome Camera, 4Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors

Hover to Zoom

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 4 Dome Camera, 4Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors

Name: CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 4 Dome Camera, 4Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors
Brand: CP Plus
SKU: MSNE5N8YWVP0KL
Price: 14439 INR
Availability: InStock

₹14,439 (Incl. of all taxes)

₹12,236 ₹2,203 GST

MRP ₹24,539 41% OFF

Storage Capacity

1 TB
2 TB
500 GB
NO HDD

Buy More & Save More

Qty 2

₹14,330 /pc

41% OFF

Qty 3

₹14,276 /pc

41% OFF

Qty 4 - 5

₹14,222 /pc

42% OFF

Qty 6 - 7

₹14,114 /pc

42% OFF

Qty 8+

₹14,005 /pc

42% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.

Get at

₹14,339

with Coupon & Offers

Extra ₹100 OFF

All Coupons & Offers

India’s Leading B2B Online Store

4.7

google_logo Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

Money Back

Genuine Product

Easy Return

Get GST Invoice

Secure Payments

365 Days Help Desk

Moglix Insights

About This Product

Key Features

2 Years Warranty on CP PLUS CCTV Combo.
1/2.7 inch 2.4MP CMOS Image Sensor (0.9407 cm).
Max 25/30fps at 2.4MP.
DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC.
3.6mm Fixed Lens (2.8mm, 6mm optional).
IR Range of 20 Mtrs, OSD Menu, Control Over Coaxial Cable, 2D-DNR.
HD, SD and Two Analog Format Output Switchable.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 5 channels IP camera inputs, each channel up to 2MP; Max 20Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pr.

Show All Key Features

Product Specifications

Brand	CP Plus
Additional Details	Casing: Plastic Max Aperture: F1.85
Audio Bit rate	64 Kbps Per Channel
Cable Length	70 m
Camera	2.4 MP
Ethernet	1 RJ-45 Port (100 Mbps)
Frequency Range	50-60 Hz
IR Range	20 m
Image Sensor	1/2.7 inch 2.4MP CMOS
Input Voltage	150-240 V AC
Leakage Current	Max: 0.008 Amp
Lens Size	3.6 mm
Minimum Illumination	0.04 Lux/F1.85, 30IRE & 0 Lux IR On
Model	Dome: CP-URC-DC24PL2-V3 DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
Notes	The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Number of Channels	DVR & SMPS: 4
Operating System	Embedded LINUX
Operating Temperature	-40 to 60 deg C
Power Consumption	Dome: 2.3 W DVR: <10 W
Rated Power	48 W
Standards	IP67
Storage Capacity	1 TB
Storage Humidity	0-90%
Storage Temperature	DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Video Compression	Instastream/H.265/H.264+/H.264
Video Recording	Sub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video Resolution	1920x1080p, 1280x1024p & 1280x720p
Video Streaming	2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Voltage	12 V DC ±30% DVR: 12 V DC
Warranty	2 Years
Working Humidity	DVR: 10-90% SMPS: 5 to 95%
Working Temperature	DVR & SMPS: -10 to 45 deg C
Country of origin	India
Manufacturer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Packer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Common/Generic Name	CCTV Kit
Dimensions LxWxH	25x25x25 cm
Weight	2 kg

Show All Specifications

Product Details

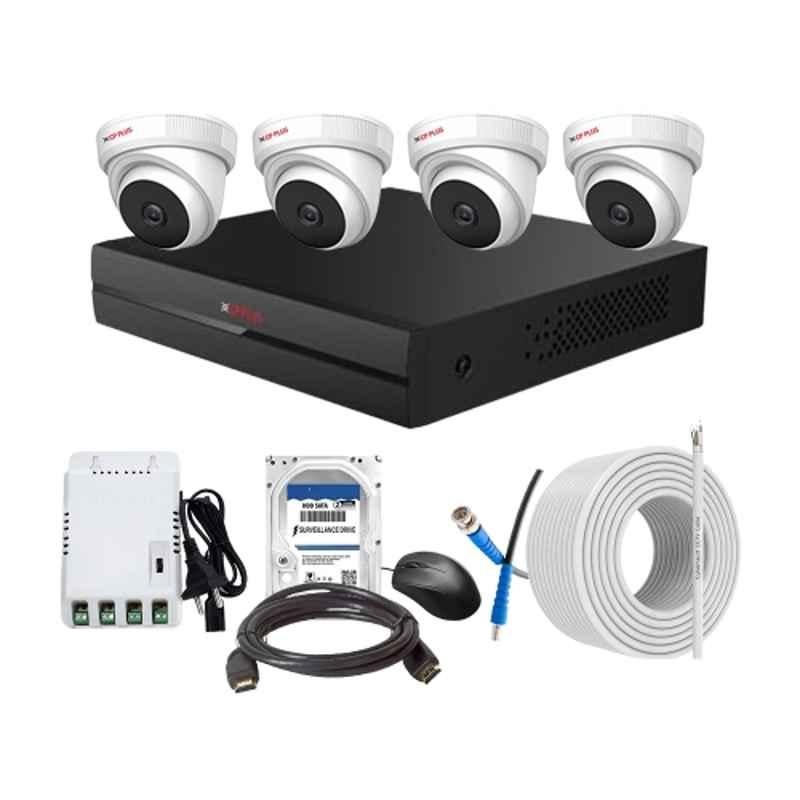

Introducing the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, the ideal surveillance solution for both indoor and outdoor security needs. Designed by the trusted brand CP Plus, this kit includes a 4-channel DVR, 4 dome cameras, 4-channel SMPS, 70m copper cable, 1TB HDD, and connectors.

Featuring a lens size of 3.6 mm, this kit provides a wide viewing angle, ensuring comprehensive coverage of your premises. With a cable length of 70m, this kit allows for flexible installation options.

Operating on an input voltage of 150-240V AC and an embedded LINUX operating system, this CCTV combo kit guarantees reliable and efficient performance. Even in extreme temperatures, with the working range of DVR and SMPS being -10 to 45 deg C, and the operating temperature range of -40 to 60 deg C, it delivers consistent results.

Equipped with an impressive IR range of 20m, this kit ensures clear footage, even in low light conditions. Safeguard your property and loved ones with the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, a reliable and durable surveillance solution. Experience peace of mind knowing you have the support of CP Plus, a brand trusted by thousands worldwide.

Browse through the extensive list of CCTV Combo Kits at Moglix. Shop online for other CP Plus CCTV Combo Kits. available at Moglix in the lowest price range.
