CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 7 Dome Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 7 Dome Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector

Hover to Zoom

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 7 Dome Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector

Name: CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 7 Dome Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector
Brand: CP Plus
SKU: MSN8KLPN826N5V
Price: 19699 INR
Availability: InStock

₹19,699 (Incl. of all taxes)

₹16,694 ₹3,005 GST

MRP ₹36,539 46% OFF

Storage Capacity

1 TB
2 TB
500 GB
NO HDD

Buy More & Save More

Qty 2

₹19,551 /pc

46% OFF

Qty 3

₹19,477 /pc

46% OFF

Qty 4 - 5

₹19,403 /pc

46% OFF

Qty 6 - 7

₹19,255 /pc

47% OFF

Qty 8+

₹19,108 /pc

47% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.

Get at

₹19,599

with Coupon & Offers

Extra ₹100 OFF

All Coupons & Offers

India’s Leading B2B Online Store

4.7

Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

Money Back

Genuine Product

Easy Return

Get GST Invoice

Secure Payments

365 Days Help Desk

Moglix Insights

About This Product

Key Features

2 Years Warranty on CP PLUS CCTV Combo.
1/2.7 inch 2.4MP PS CMOS Image Sensor (0.9407 centimetres).
Max. 2MP at 30fps.
DWDR, Day/Night (ICR), 2D DNR, AWB, AGC, BLC, HLC.
3.6mm Fixed Lens (6mm optional).
IR Range of 20 Mtrs., Smart IR & IP67.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 10 channels IP camera inputs, each channel up to 6MP; Max 40Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pro.

Show All Key Features

Product Specifications

Brand	CP Plus
Additional Details	Dome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Audio Bit rate	64 Kbps Per Channel
Cable Length	70 m
Camera	2.4 MP
Ethernet	1 RJ-45 Port (100 Mbps)
Frequency Range	50-60 Hz
IR Range	20 m
Image Sensor	Dome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage	150-240 V AC
Leakage Current	Max: 0.008 Amp
Lens Size	3.6 mm
Minimum Illumination	0.04 Lux/F1.85, 30IRE & 0Lux IR on
Model	Dome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
Notes	The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Number of Channels	DVR & SMPS: 8
Operating System	Embedded LINUX
Operating Temperature	-40 to 60 deg C
Power Consumption	Dome: 2.3 W Bullet: 2.7 W DVR: <10 W
Rated Power	48 W
Standards	IP67
Storage Capacity	1 TB
Storage Humidity	0-90%
Video Compression	Instastream/H.265/H.264+/H.264
Video Recording	Sub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Resolution	1920x1080p, 1280x1024p & 1280x720p
Video Streaming	Dome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Voltage	12 V DC ±30% DVR: 12 V DC
Warranty	2 Years
Working Humidity	DVR: 10-90% SMPS: 5 to 95%
Working Temperature	DVR & SMPS: -10 to 45 deg C
Country of origin	India
Manufacturer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Packer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Common/Generic Name	CCTV Kit
Dimensions LxWxH	25x25x25 cm
Weight	2 kg

Show All Specifications

Product Details

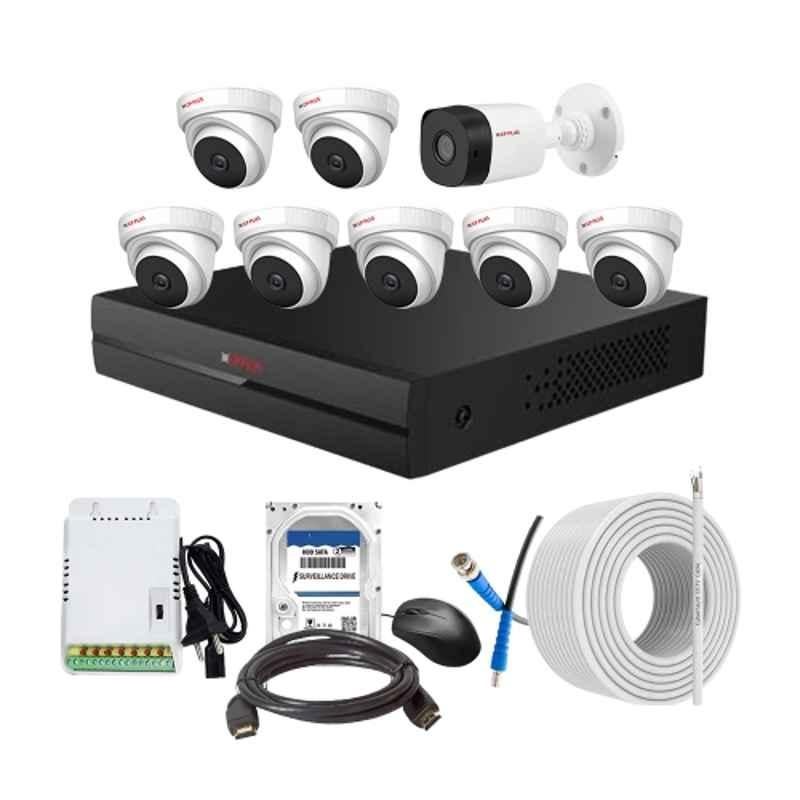

Introducing the CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit, a complete surveillance solution for your home or business. This versatile kit includes an 8-channel DVR, ensuring that you have ample space to store your footage with the 1TB HDD. The kit also includes 1 bullet and 7 dome cameras, providing comprehensive coverage both indoors and outdoors. With a 3.6mm lens size, you can expect clear and detailed footage. The 70m cable length ensures easy installation and flexibility in camera placement. Powered by an 8-channel SMPS, this kit is compatible with an input voltage of 150-240V AC. The embedded LINUX operating system ensures stability and reliability. Designed to withstand extreme temperatures, the DVR and SMPS can operate in temperatures ranging from -10 to 45 deg C, while the cameras can handle temperatures from -40 to 60 deg C. With an impressive IR range of 20m, this kit provides enhanced night vision capability. Experience peace of mind with the CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit.
