Does this kit come with everything needed for installation?

Yes, the kit includes 6 cameras, an 8-channel DVR, 8-channel SMPS, 70 meters of cable, a 500GB HDD, and connectors everything required for setup.

Home
Security
CCTV Cameras
CCTV Combo Kits

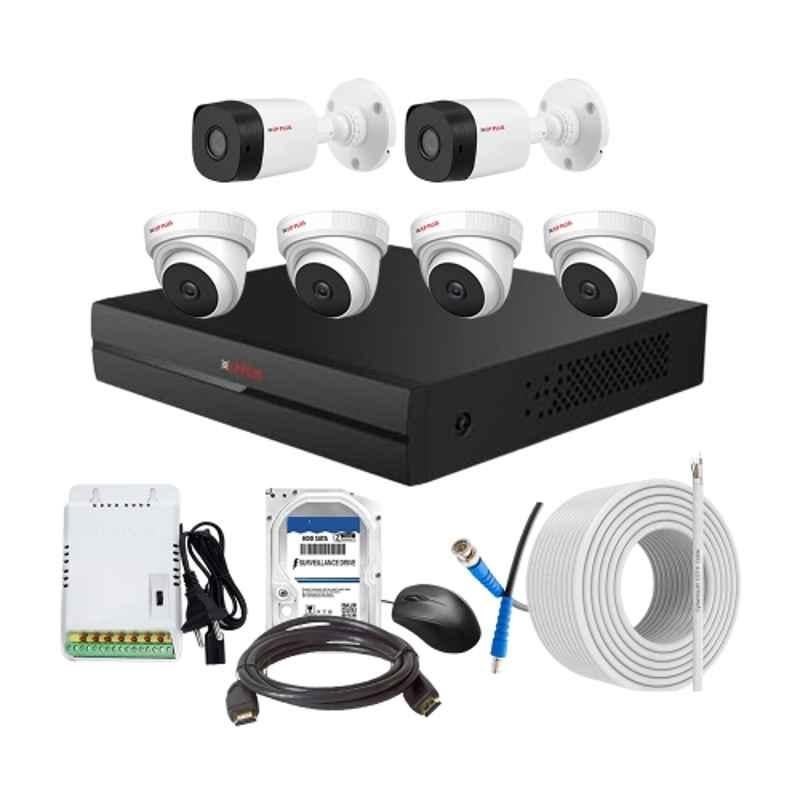

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Dome 2 Bullet Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Dome 2 Bullet Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

Hover to Zoom

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Dome 2 Bullet Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

Name: CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Dome 2 Bullet Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector
Brand: CP Plus
SKU: MSN8580Z16P492
Price: 15669 INR
Availability: InStock
Rating: 4.67 (6 reviews)

4.7

(6 Reviews)

₹15,669 (Incl. of all taxes)

₹13,278 ₹2,391 GST

MRP ₹28,549 45% OFF

Storage Capacity

500 GB
1 TB
2 TB
NO HDD

Buy More & Save More

Qty 2

₹15,551 /pc

45% OFF

Qty 3

₹15,492 /pc

45% OFF

Qty 4 - 5

₹15,433 /pc

45% OFF

Qty 6 - 7

₹15,316 /pc

46% OFF

Qty 8+

₹15,198 /pc

46% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.

Get at

₹15,569

with Coupon & Offers

Extra ₹100 OFF

All Coupons & Offers

India’s Leading B2B Online Store

4.7

google_logo Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

Money Back

Genuine Product

Easy Return

Get GST Invoice

Secure Payments

365 Days Help Desk

Moglix Insights

About This Product

Key Features

2 Years Warranty on CP PLUS CCTV Combo.
1/2.7 inch 2.4MP PS CMOS Image Sensor (0.9407 centimetres).
Max. 2MP at 30fps.
DWDR, Day/Night (ICR), 2D DNR, AWB, AGC, BLC, HLC.
3.6mm Fixed Lens (6mm optional).
IR Range of 20 Mtrs., Smart IR & IP67.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 10 channels IP camera inputs, each channel up to 6MP; Max 40Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pro.

Show All Key Features

Product Specifications

Brand	CP Plus
Additional Details	Dome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Audio Bit rate	64 Kbps Per Channel
Cable Length	70 m
Camera	2.4 MP
Ethernet	1 RJ-45 Port (100 Mbps)
Frequency Range	50-60 Hz
IR Range	20 m
Image Sensor	Dome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage	150-240 V AC
Leakage Current	Max: 0.008 Amp
Lens Size	3.6 mm
Minimum Illumination	0.04 Lux/F1.85, 30IRE & 0Lux IR on
Model	Dome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
Notes	The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Number of Channels	DVR & SMPS: 8
Operating System	Embedded LINUX
Operating Temperature	-40 to 60 deg C
Power Consumption	Dome: 2.3 W Bullet: 2.7 W DVR: <10 W
Rated Power	48 W
Standards	IP67
Storage Capacity	500 GB
Storage Humidity	0-90%
Video Compression	Instastream/H.265/H.264+/H.264
Video Recording	Sub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Resolution	1920x1080p, 1280x1024p & 1280x720p
Video Streaming	Dome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Voltage	12 V DC ±30% DVR: 12 V DC
Warranty	2 Years
Working Humidity	DVR: 10-90% SMPS: 5 to 95%
Working Temperature	DVR & SMPS: -10 to 45 deg C
Country of origin	India
Manufacturer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Packer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Common/Generic Name	CCTV Kit
Dimensions LxWxH	25x25x25 cm
Weight	2 kg

Show All Specifications

Product Details

Introducing the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, a high-quality surveillance solution designed for both indoor and outdoor use. This comprehensive kit includes an 8-channel DVR, 4 dome cameras, 2 bullet cameras, an 8-channel SMPS, a 70m cable, a 500GB HDD, and a connector. With a lens size of 3.6mm, these cameras capture clear and detailed footage. The 70m cable ensures easy installation and setup. Built with an embedded LINUX operating system, this kit guarantees optimal performance and reliability. The DVR and SMPS have a working temperature range of -10 to 45 °C, ensuring durability in various weather conditions. With an impressive IR range of 20m and operating temperature range of -40 to 60 °C, this kit ensures uninterrupted surveillance even in the harshest environments. Trust in CP Plus, a renowned brand in the industry, to provide you with a top-notch CCTV Combo Kit.
