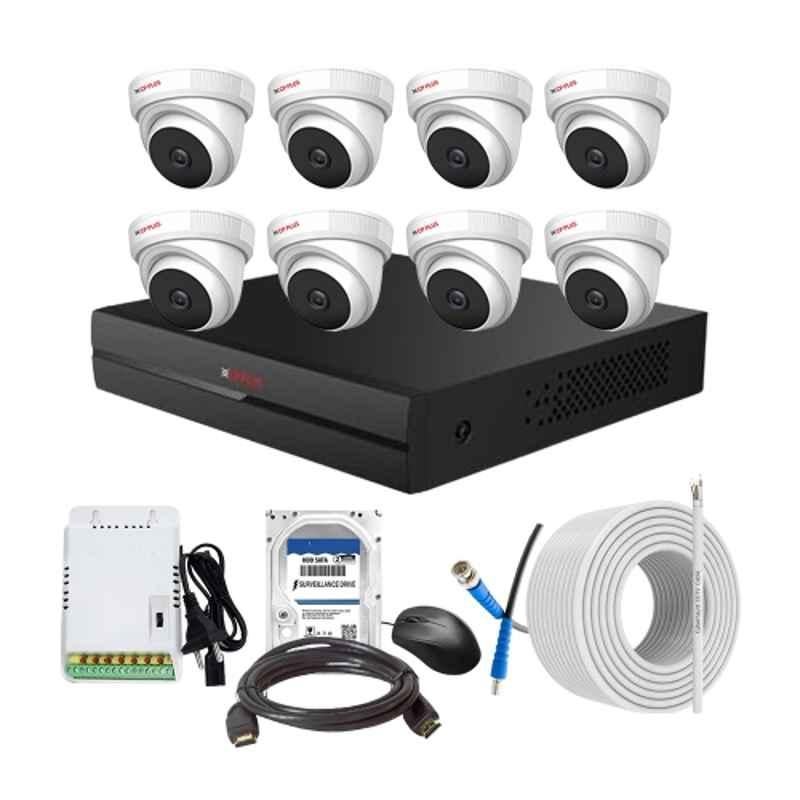

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Dome Camera, 8Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Dome Camera, 8Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors

Hover to Zoom

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Dome Camera, 8Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors

Name: CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Dome Camera, 8Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors
Brand: CP Plus
SKU: MSN153VJ76MJK3
Price: 15459 INR
Availability: InStock

₹15,459 (Incl. of all taxes)

₹13,100 ₹2,359 GST

MRP ₹32,499 52% OFF

Storage Capacity

500 GB
1 TB
2 TB
NO HDD

Buy More & Save More

Qty 2

₹15,343 /pc

52% OFF

Qty 3

₹15,285 /pc

52% OFF

Qty 4 - 5

₹15,227 /pc

53% OFF

Qty 6 - 7

₹15,111 /pc

53% OFF

Qty 8+

₹14,995 /pc

53% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.

Get at

₹15,359

with Coupon & Offers

Extra ₹100 OFF

All Coupons & Offers

India’s Leading B2B Online Store

4.7

google_logo Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

Money Back

Genuine Product

Easy Return

Get GST Invoice

Secure Payments

365 Days Help Desk

Moglix Insights

About This Product

Key Features

2 Years Warranty on CP PLUS CCTV Combo.
1/2.7 inch 2.4MP CMOS Image Sensor (0.9407 cm).
Max 25/30fps at 2.4MP.
DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC.
3.6mm Fixed Lens (2.8mm, 6mm optional).
IR Range of 20 Mtrs, OSD Menu, Control Over Coaxial Cable, 2D-DNR.
HD, SD and Two Analog Format Output Switchable.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 10 channels IP camera inputs, each channel up to 6MP; Max 40Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pro.

Show All Key Features

Product Specifications

Brand	CP Plus
Additional Details	Casing: Plastic Max Aperture: F1.85
Audio Bit rate	64 Kbps Per Channel
Cable Length	70 m
Camera	2.4 MP
Ethernet	1 RJ-45 Port (100 Mbps)
Frequency Range	50-60 Hz
IR Range	20 m
Image Sensor	1/2.7 inch 2.4MP CMOS
Input Voltage	150-240 V AC
Leakage Current	Max: 0.008 Amp
Lens Size	3.6 mm
Minimum Illumination	0.04 Lux/F1.85, 30IRE & 0 Lux IR On
Model	Dome: CP-URC-DC24PL2-V3 DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
Notes	The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Number of Channels	DVR & SMPS: 8
Operating System	Embedded LINUX
Operating Temperature	-40 to 60 deg C
Power Consumption	Dome: 2.3 W DVR: <10 W
Rated Power	48 W
Standards	IP67
Storage Capacity	500 GB
Storage Humidity	0-90%
Storage Temperature	DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Video Compression	Instastream/H.265/H.264+/H.264
Video Recording	Sub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Resolution	1920x1080p, 1280x1024p & 1280x720p
Video Streaming	2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Voltage	12 V DC ±30% DVR: 12 V DC
Warranty	2 Years
Working Humidity	DVR: 10-90% SMPS: 5 to 95%
Working Temperature	DVR & SMPS: -10 to 45 deg C
Country of origin	India
Manufacturer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Packer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Common/Generic Name	CCTV Kit
Dimensions LxWxH	25x25x25 cm
Weight	2 kg

Show All Specifications

Product Details

The CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit is the perfect solution for securing both indoor and outdoor spaces. With an 8-channel DVR and 8 dome cameras, this kit provides comprehensive surveillance coverage. The kit also includes an 8-channel SMPS, 70m copper cable, 500GB HDD, and connectors, ensuring easy installation and operation. The CCTV Combo Kit from CP Plus features a lens size of 3.6mm, allowing for clear and detailed footage. With a cable length of 70m, this kit offers flexibility in camera placement. The input voltage of 150-240V AC guarantees reliable performance. The operating system is embedded with LINUX, ensuring smooth operation. The working temperature of the DVR and SMPS ranges from -10 to 45 degrees Celsius, making it suitable for various environmental conditions. The IR range of 20m ensures clear visibility even in low-light conditions. Operating at temperatures from -40 to 60 degrees Celsius, this kit is designed to withstand extreme climates. With its high-quality components and advanced technology, the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit is the ideal choice for effective surveillance.
