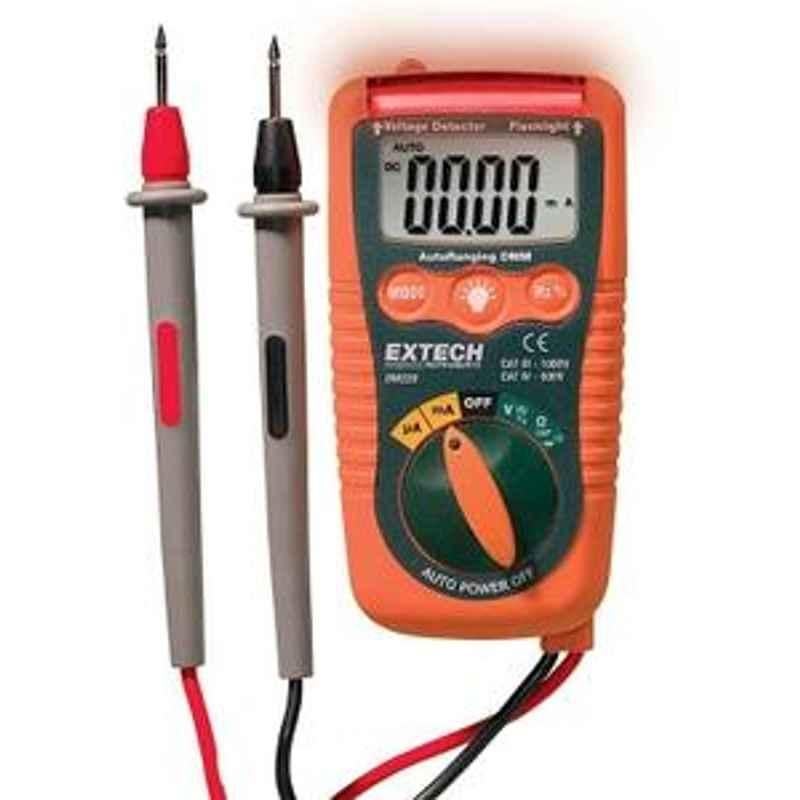

Extech DM-220 Digital Pocket MultiMeter AC Voltage Range 4V to 600V

Name: Extech DM-220 Digital Pocket MultiMeter AC Voltage Range 4V to 600V
Brand: Extech
SKU: MSN153VLJ8JYK3
Price: 14988 INR
Availability: OutOfStock

₹14,988 (Incl. of all taxes)

₹12,701 ₹2,287 GST

MRP ₹15,777 5% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Large high contrast 4000 count LCD display..
Non-Contact Voltage detection identifies live circuits..
Built-in Flashlight..
11 functions including Frequency, Capacitance, and Duty Cycle..
Built-in storage clips for integrated test leads..
Double molded housing provides extra protection..
Over-range and low battery indication..
Complete with test leads and two AAA batteries..
Electrical repair..
Appliance repair..
Home wiring projects..
Testing electrical systems on cars and boats..
Hobby projects..

Show All Key Features

Product Specifications

Brand	Extech
AC Current Accuracy	±2.5%+5d
AC Current Range	400µA-200mA
AC Voltage Accuracy	±2.0%+2d
AC Voltage Range	4V to 600V
Altitude	2000 m
Capacitance Accuracy	±5%+30d
Capacitance Range (F)	40nF-200µF
Continuity Buzzer	<100Ω
Counts	4000
Customer Care Number	877-239-8324
DC Current Accuracy	±2.5%+2d
DC Current Range (Amp)	400µA-200mA
DC Voltage Accuracy	±1.0%+2d
DC Voltage Range	400mV-600V
Dimensions	120x55x40 mm
Display	LCD
Frequency Accuracy	±(2.0% +5)
Frequency Range (Hz)	9.999Hz-9.999kHz
Fuse	mA, µA ranges; 0.2A/500V fast acting resettable fuse
Model No	DM-220
Operating Temperature	0 to 40°C
Power Input	1.5V x2 AAA Battery
Relative Humidity	<80%RH
Resistance Accuracy	±5%+5d
Resistance Range (Ohm)	400Ω to 40MΩ
Sample Rate	2 times/s
Storage Temperature	-10 to 50°C
Type	Digital
Type of Product	Digital Pocket MultiMeter
Weight (g)	0.145 Kg
Common/Generic Name	Multimeter
Dimensions LxWxH	120x55x40 mm
Weight	217 g

Show All Specifications

Product Details

The Extech DM-220 Digital Pocket MultiMeter AC Voltage Range 4V to 600V is one of the best selling products in the market. This device gives you accurate reading, helping you measure the electric supply. Well with this product you can measure voltage, current, and resistance of a circuit. The other name for this device is volt-ohm-milliammeter. This multimeter can be used to measure batteries, household wirings, electric motors and power supplies.
