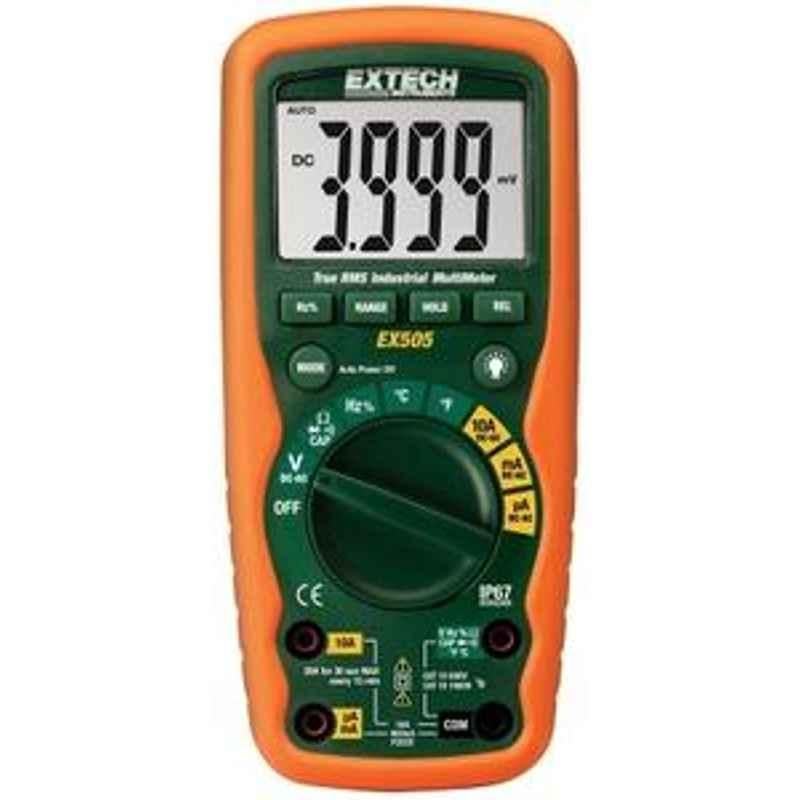

Extech EX-505 Digital Multimeter AC Voltage Range 0.1mV to 1000V

Name: Extech EX-505 Digital Multimeter AC Voltage Range 0.1mV to 1000V
Brand: Extech
SKU: MSNPKEPEO4PD9G
Price: 37160 INR
Availability: OutOfStock

₹37,160 (Incl. of all taxes)

₹31,491 ₹5,669 GST

MRP ₹39,116 5% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Input protection on all functions..
Dual sensitivity frequency functions..
Large backlit LCD..
Diode open circuit voltage of 2.8V DC..
Auto power off with disable feature..
4,000 count..
0.5% accuracy..
Data Hold and Relative..
10A max current..

Show All Key Features

Product Specifications

Brand	Extech
AC Current Accuracy	±(3%+7)
AC Current Range	0.1µA-10A
AC Voltage Accuracy	±(2% +5d)
AC Voltage Range	0.1mV to 1000V
Altitude	2000 m
Bandwidth	40Hz-400Hz
Capacitance Accuracy	±(5% +7)
Capacitance Range (F)	0.01nF-100µF
Continuity Buzzer	<100Ω
Counts	4000
Customer Care Number	877-239-8324
DC Current Accuracy	±(2.5%+10d)
DC Current Range (Amp)	0.1µA-10A
DC Voltage Accuracy	±(2% +10)
DC Voltage Range	0.1mV-1000V
Dimensions	184x83x57 mm
Frequency Accuracy	±(5% +5)
Frequency Range (Hz)	5Hz-1kHz
Fuse	mA, µA ranges; 0.5A/1000V ceramic fast blow
Model No	EX-505
Operating Temperature	5 to 40°C
Power Input	9V Battery
Relative Humidity	<80%RH
Resistance Accuracy	±(3%+7d)
Resistance Range (Ohm)	0.1Ω to 40MΩ
Sample Rate	2 times/s
Sensing	True RMS
Storage Temperature	-20 to 60°C
Temperature Accuracy	±(3%+5°C)
Temperature Range(C)	-20 to 750°C
Type	Digital
Type of Product	Digital Multimeter
Weight (g)	0.349 Kg
Common/Generic Name	Digital Multimeter
Dimensions LxWxH	184x83x57 mm
Weight	217 g

Show All Specifications

Product Details

The Extech EX-505 Digital Multimeter AC Voltage Range 0.1mV to 1000V is one of the best selling products in the market. This device gives you accurate reading, helping you measure the electric supply. Well with this product you can measure voltage, current, and resistance of a circuit. The other name for this device is volt-ohm-milliammeter. This multimeter can be used to measure batteries, household wirings, electric motors and power supplies.

Browse through the extensive list of Multimeters at Moglix. Shop online for other Extech Multimeters. available at Moglix in the lowest price range.
