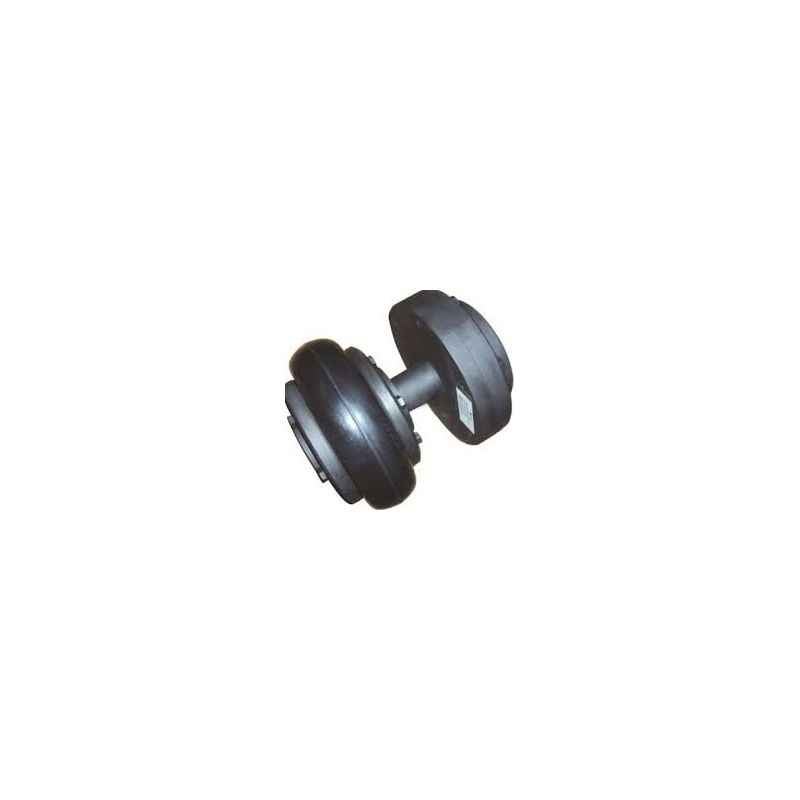

Fenner Fenaflex Spacer Coupling Taper Lock F50 SM16 100

Name: Fenner Fenaflex Spacer Coupling Taper Lock F50 SM16 100
Brand: Fenner
SKU: MSN2VE475VJT09
Price: 5309 INR
Availability: OutOfStock

₹5,309 (Incl. of all taxes)

₹5,057 ₹252 GST

MRP ₹8,431 37% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Simple time saving installation - motor and machine remains undisturbed whilst tyre is changed.
Large misalignment capability, 4 angular, up to 6mm parallel and 8mm axial.
Internal load carrying cords are wound in both directions, so there is no problem on reversing drives.
Tyres are available in standard and FRAS (Fire Resistant Anti Static) construction.
ATEX approved.
Simple visual inspection to aid maintenance.
Lubrication free.

Show All Key Features

Product Specifications

Brand	Fenner
A (mm)	133
B (mm)	79
Bore	Spacer Max Bore: 42 mm Fenaflex Max Bore: 32 mm
Bore Size	42 mm
C (mm)	127
D (mm)	80
Distance Between End Shafts	100 mm
E (mm)	160
F (mm)	25
Flange Taper lock bush (TLB) Size	1210
G (mm)	18
H (mm)	15
Items in Pack	1 Piece
J (mm)	14
K (mm)	9
L (mm)	85
M (mm)	25
Maximum Speed	4500 rev/min
Nominal Torque	66 Nm
Notes	Unboxing Video is Mandatory for any Damage or Leakage Product For Class 3 and Class 4 Driven Machine, kindly calculate power rating with an average service factor of 2.5
S (mm)	94
Size	F50 SM16 100
Spacer Taper lock bush (TLB) Size	1615
T (mm)	32
Country of origin	India
Manufacturer Details	J.K. Fenner India Limited, 3, Madurai - Melakkal Road, Kochadai, Madurai - 625 016, India. Tel: +91-0452-4283800. Website - https://jkfenner.com
Packer Details	J.K. Fenner India Limited, 3, Madurai - Melakkal Road, Kochadai, Madurai - 625 016, India. Tel: +91-0452-4283800. Website - https://jkfenner.com
Common/Generic Name	Spacer Coupling
Weight	500 g

Show All Specifications

Product Details

The Fenner Fenaflex Spacer Coupling, Taper Lock, F50 SM16 100 offers hassle-free installation with no need to disturb the motor or machine when changing the tyre. Designed for flexibility, it supports large misalignment with 4Â° angular, up to 6mm parallel, and 8mm axial movement. Featuring a flange taper lock bush size 1210 and a nominal torque of 66 Nm, this coupling accommodates bores up to 42 mm (spacer) and 32 mm (Fenaflex). Its internal load-carrying cords handle reversing drives efficiently. Available in standard and FRAS fire-resistant antistatic tyres, itâ€™s ATEX approved, lubrication-free, and allows simple visual maintenance inspection.
