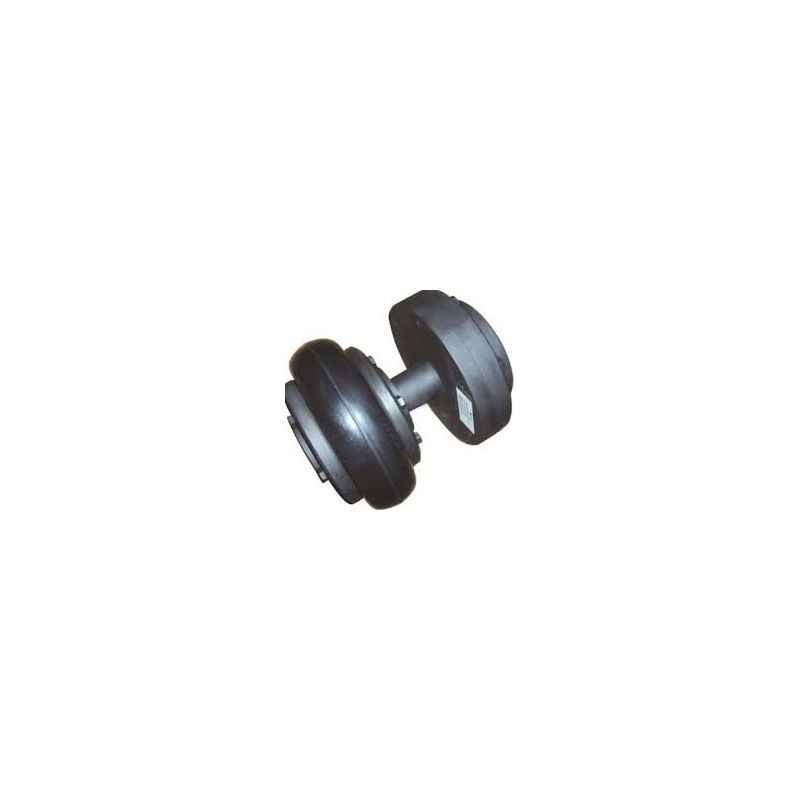

Fenner Fenaflex Spacer Coupling Taper Lock F70 SM25 180

Name: Fenner Fenaflex Spacer Coupling Taper Lock F70 SM25 180
Brand: Fenner
SKU: MSN2QGVQCD2NRX
Price: 9618 INR
Availability: OutOfStock

₹9,618 (Incl. of all taxes)

₹9,162 ₹456 GST

MRP ₹15,269 37% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Simple time saving installation - motor and machine remains undisturbed whilst tyre is changed.
Large misalignment capability, 4 angular, up to 6mm parallel and 8mm axial.
Internal load carrying cords are wound in both directions, so there is no problem on reversing drives.
Tyres are available in standard and FRAS (Fire Resistant Anti Static) construction.
ATEX approved.
Simple visual inspection to aid maintenance.
Lubrication free.

Show All Key Features

Product Specifications

Brand	Fenner
A (mm)	187
B (mm)	80
Bore	Spacer Max Bore: 60 mm Fenaflex Max Bore: 50 mm
Bore Size	60 mm
C (mm)	178
D (mm)	123
Distance Between End Shafts	180 mm
E (mm)	260
F (mm)	45
Flange Taper lock bush (TLB) Size	1610
G (mm)	22
H (mm)	16
Items in Pack	1 Piece
J (mm)	14
K (mm)	9
L (mm)	160
M (mm)	23
Maximum Speed	3600 rev/min
Nominal Torque	250 Nm
Notes	Unboxing Video is Mandatory for any Damage or Leakage Product For Class 3 and Class 4 Driven Machine, kindly calculate power rating with an average service factor of 2.5
S (mm)	174
Size	F70 SM25 180
Spacer Taper lock bush (TLB) Size	2517
T (mm)	48
Country of origin	India
Manufacturer Details	J.K. Fenner India Limited, 3, Madurai - Melakkal Road, Kochadai, Madurai - 625 016, India. Tel: +91-0452-4283800. Website - https://jkfenner.com
Packer Details	J.K. Fenner India Limited, 3, Madurai - Melakkal Road, Kochadai, Madurai - 625 016, India. Tel: +91-0452-4283800. Website - https://jkfenner.com
Common/Generic Name	Spacer Coupling
Weight	500 g

Show All Specifications

Product Details

The Fenner Fenaflex Spacer Coupling with Taper Lock, F70 SM25 180 is a top-of-the-line coupling designed to provide a reliable and efficient connection between motor and machinery. This coupling features a Flange Taper lock bush (TLB) Size of 1610, with a maximum bore of 60 mm for the Spacer and 50 mm for the Fenaflex. The Nominal Torque of 250 Nm ensures smooth operation, while the large misalignment capability of 4 angular, up to 6mm parallel, and 8mm axial allows for flexibility in usage. Additionally, the coupling is ATEX approved and lubrication free, making it a low-maintenance and cost-effective solution for your industrial needs.
