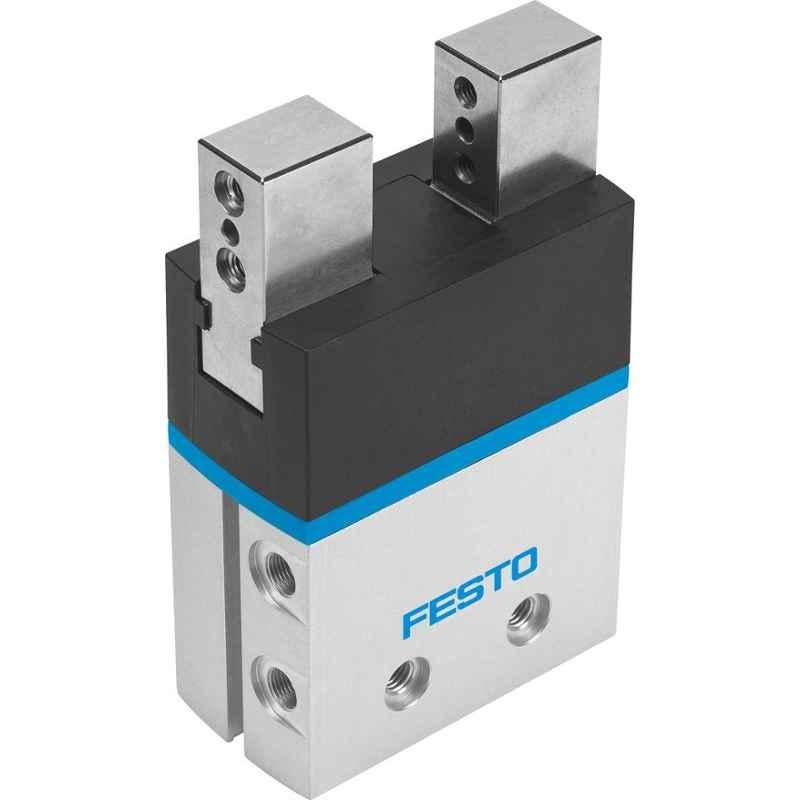

Festo 35mm DHPS-35-A Double Acting Parallel Gripper without Compression Spring, 1254052

Name: Festo 35mm DHPS-35-A Double Acting Parallel Gripper without Compression Spring, 1254052
Brand: Festo
SKU: MSNEKPQW0MVM52
Price: 54068 INR
Availability: OutOfStock

₹54,068 (Incl. of all taxes)

₹45,820 ₹8,248 GST

MRP ₹77,662 30% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Gripper function: Parallel.
Guide: Plain-bearing.
Gripping Force Backup: NO,NC.
Number of Gripper Jaws: 2.
Max. Load per External Gripper Finger: 450 g.
Repetition Accuracy: Greater than equals to 0.02 mm.
Max. Interchangeability: Greater than equals to ±0.2 mm.
Max. Operating Frequency: Greater than equals to 2 Hz.
Rotational Symmetry: Greater than 0.2 mm.
Corrosion Resistance Class: 2.

Show All Key Features

Product Specifications

Brand	Festo
Ambient Temperature	5 to 60 deg C
Connection Size	G1/8
Design	Lever
Housing Material	Hard Anodised Wrought Aluminium Alloy
Mounting type	With through-hole and centring sleeve With female thread and centring sleeve
Notes	Product once sold will not be returned Box Opening Video will be Required for any Type of Exchange
Operating Mode	Double Acting
Operating Pressure	2 to 8 bar
Part Number	1254052
Position	Mounting: Any
Position Sensing	Via proximity switch, position transmitter
Seal Material	NBR
Series	DHPS
Size	35 mm
Stroke	12.5 mm per Gripper Jaw
Type	DHPS-35-A
Weight	1285 g
Working Medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Country of origin	India
Manufacturer Details	Festo India Private Limited, 130, T Block, MIDC, Bhosari, Pune, Maharashtra, 411026-India, Phone: +91 1800 121 0036, Email: festo_didactic@festo.com
Packer Details	Festo India Private Limited, 130, T Block, MIDC, Bhosari, Pune, Maharashtra, 411026-India, Phone: +91 1800 121 0036, Email: festo_didactic@festo.com
Common/Generic Name	Parallel Gripper
Weight	1.285 kg

Show All Specifications

Product Details

Festo 35mm DHPS-35-A Double Acting Parallel Gripper without Compression Spring, 1254052 is a premium quality product from Festo . Moglix is a well-known ecommerce platform for qualitative range of Compressed Air Treatment. All Festo 35mm DHPS-35-A Double Acting Parallel Gripper without Compression Spring, 1254052 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Festo 35mm DHPS-35-A Double Acting Parallel Gripper without Compression Spring, 1254052, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Festo products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Festo Compressed Air Treatment .
