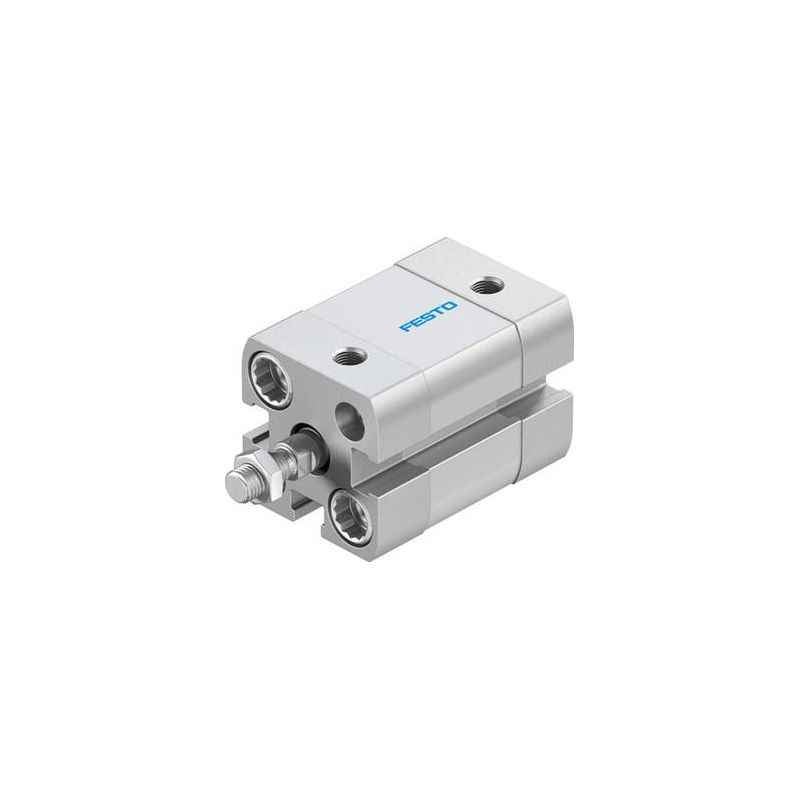

Festo ADN-12-25-A-P-A Double Acting Basic Compact Cylinder, 536208

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Festo
Ambient Temperature	20 to 80 DegC
Connection	M5
Cushioning	Flexible cushioning rings/pads at both ends
Item Code	ADN-12-25-A-P-A
Items in Pack	1 Piece
Mounting type	Via Through-Holes/Female Thread/Accessories
Notes	Box Opening Video will be Required for any Type of Exchange
Operating Mode	Double Acting
Operating Pressure	1-10 bar
Part Number	536208
Piston Diameter	12 mm
Position Sensing	Via proximity sensor
Rod Thread	Male
Series	ADN
Standard	ISO 21287
Stroke	25 mm
Theoretical Force	68 N
Thread Size	M5
Country of origin	India
Manufacturer Details	Festo India Private Limited, 130, T Block, MIDC, Bhosari, Pune, Maharashtra, 411026-India, Phone: +91 1800 121 0036, Email: festo_didactic@festo.com
Packer Details	Festo India Private Limited, 130, T Block, MIDC, Bhosari, Pune, Maharashtra, 411026-India, Phone: +91 1800 121 0036, Email: festo_didactic@festo.com
Common/Generic Name	Pneumatic Cylinders
Dimensions LxWxH	18.2x4.4x4.4 cm
Weight	42 g

Show All Specifications

Product Details

Festo ADN-12-25-A-P-A Double Acting Basic Compact Cylinder, 536208 is a premium quality product from Festo . Moglix is a well-known ecommerce platform for qualitative range of Pneumatic Cylinders. All Festo ADN-12-25-A-P-A Double Acting Basic Compact Cylinder, 536208 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Festo ADN-12-25-A-P-A Double Acting Basic Compact Cylinder, 536208, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Festo products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Festo Pneumatic Cylinders .
