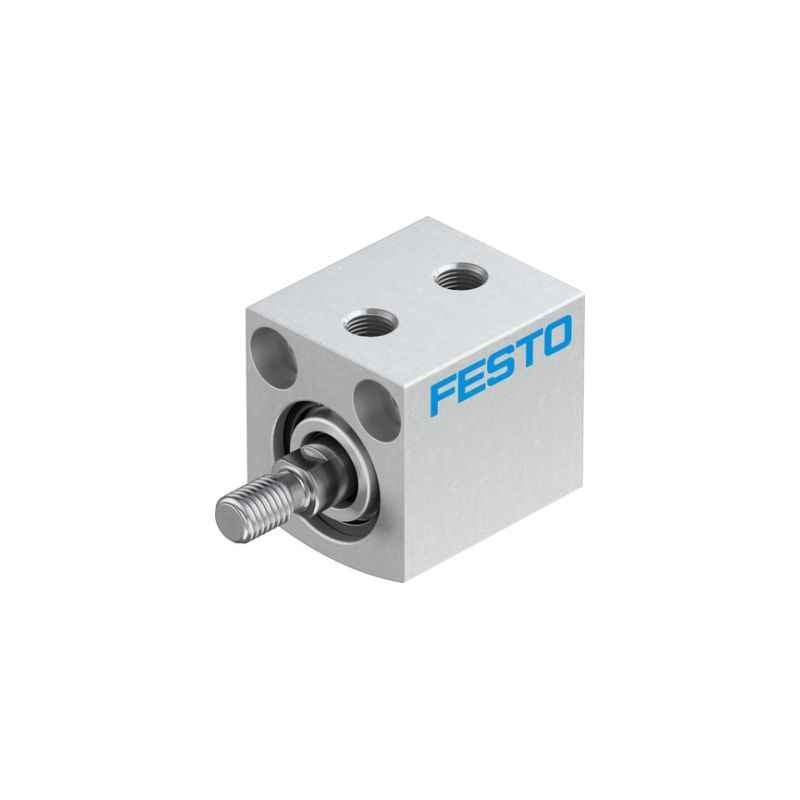

Festo ADVC-20-10-A-P Double Acting Short-Stroke Cylinder, 188156

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Festo
Ambient Temperature	-20 to 80 Deg C
Bore Diameter	20 mm
Cushioning	Elastic cushioning rings/pads at both ends
Item Code	ADVC-20-10-A-P
Items in Pack	1 Piece
Mounting type	Via Through-Holes
Notes	Box Opening Video will be Required for any Type of Exchange
Operating Mode	Double Acting
Operating Pressure	1-10 bar
Part Number	188156
Port Size	M5
Rod Thread	Male Thread
Series	ADVC
Stroke	10 mm
Theoretical Force	189 N
Country of origin	India
Manufacturer Details	Festo India Private Limited, 130, T Block, MIDC, Bhosari, Pune, Maharashtra, 411026-India, Phone: +91 1800 121 0036, Email: festo_didactic@festo.com
Packer Details	Festo India Private Limited, 130, T Block, MIDC, Bhosari, Pune, Maharashtra, 411026-India, Phone: +91 1800 121 0036, Email: festo_didactic@festo.com
Common/Generic Name	Pneumatic Cylinders
Dimensions LxWxH	7x6.6x5.8 cm
Weight	42 g

Show All Specifications

Product Details

Festo ADVC-20-10-A-P Double Acting Short-Stroke Cylinder, 188156 is a premium quality product from Festo . Moglix is a well-known ecommerce platform for qualitative range of Pneumatic Cylinders. All Festo ADVC-20-10-A-P Double Acting Short-Stroke Cylinder, 188156 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Festo ADVC-20-10-A-P Double Acting Short-Stroke Cylinder, 188156, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Festo products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Festo Pneumatic Cylinders .
