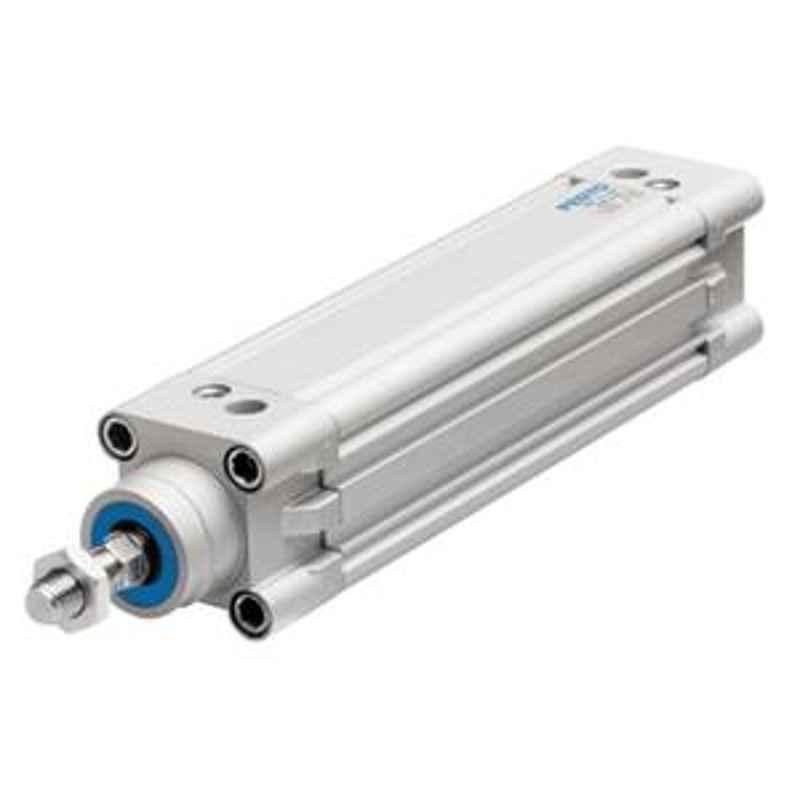

Festo DNC-32-50-PPV-A Pneumatic ISO Cylinder, 163307
₹5,189 (Incl. of all taxes)
₹4,392 ₹797 GST
MRP ₹8,060 35% OFF
About This Product
Product Specifications
Brand | |
Additional Details | Piston-Rod End: Male Thread Position Detection: Via Proximity Switch Symbol: 00991235 Variants: Piston rod at one end |
Ambient Temperature | -20 to 80 deg C |
Conformity | LABS (PWIS): VDMA24364-B1/B2-L |
Connection | Pneumatic: G1/8 |
Cover Material | Die-Cast Aluminium Coated |
Cushioning | Pneumatic Cushioning, Adjustable at Both Ends |
Design | Piston Piston Rod Profile Barrel |
Impact Energy | 0.1 J (End Positions) |
Item Code | DNC-32-50-PPV-A |
Length | Cushioning: 20 mm |
Mass | Moving: 162 g for 0 mm Stroke Additional Moving: 9 g per 10 mm Stroke |
Material | Piston Rod: High-Alloy Steel Cylinder Barrel: Wrought Aluminium Alloy Smooth Anodised |
Mode of Operation | Double-Acting |
Operating Pressure | 0.06-1.2 MPa |
Part Number | 163307 |
Piston Diameter | 32 mm |
Piston Rod Thread | M10x1.25 |
Seal Material | TPE-U(PU) |
Standards | ISO 15552 |
Stroke | 50 mm |
Theoretical Force | 415 N at 0.6 MPa (6 bar, 87 psi), Return Stroke 483 N at at 0.6 MPa (6 bar, 87 psi), Advance Stroke |
Type of Mounting | Via Female Thread with Accessories |
Weight | 517 g for 0 mm Stroke 30 g per 10 mm Stroke |
Working Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
corrosion resistance | Class CRC: 2-Moderate Corrosion Stress |
Country of origin | India |
Manufacturer Details | Festo India Private Limited, 130, T Block, MIDC, Bhosari, Pune, Maharashtra, 411026-India, Phone: +91 1800 121 0036, Email: festo_didactic@festo.com |
Packer Details | Festo India Private Limited, 130, T Block, MIDC, Bhosari, Pune, Maharashtra, 411026-India, Phone: +91 1800 121 0036, Email: festo_didactic@festo.com |
Common/Generic Name | Standard Cylinder |
Dimensions LxWxH | 26.5x7.5x7.5 cm |
Weight | 15 g |
Show All Specifications
Product Details
Introducing the Festo DNC-32-50-PPV-A Pneumatic ISO Cylinder, Part Number 163307. This standard cylinder from the renowned brand Festo operates in a double-acting mode for efficient performance. With a piston design and a piston rod thread of M10x1.25, this cylinder features pneumatic cushioning that is adjustable at both ends. The theoretical force of 483 N at 0.6 MPa ensures reliable operation, while the advanced stroke and piston diameter of 32 mm meet the highest industry standards. Trust Festo for top-quality pneumatic solutions that deliver superior results every time.
Browse through the extensive list of Standard Cylinder at Moglix. Shop online for other Festo Standard Cylinder. available at Moglix in the lowest price range.
