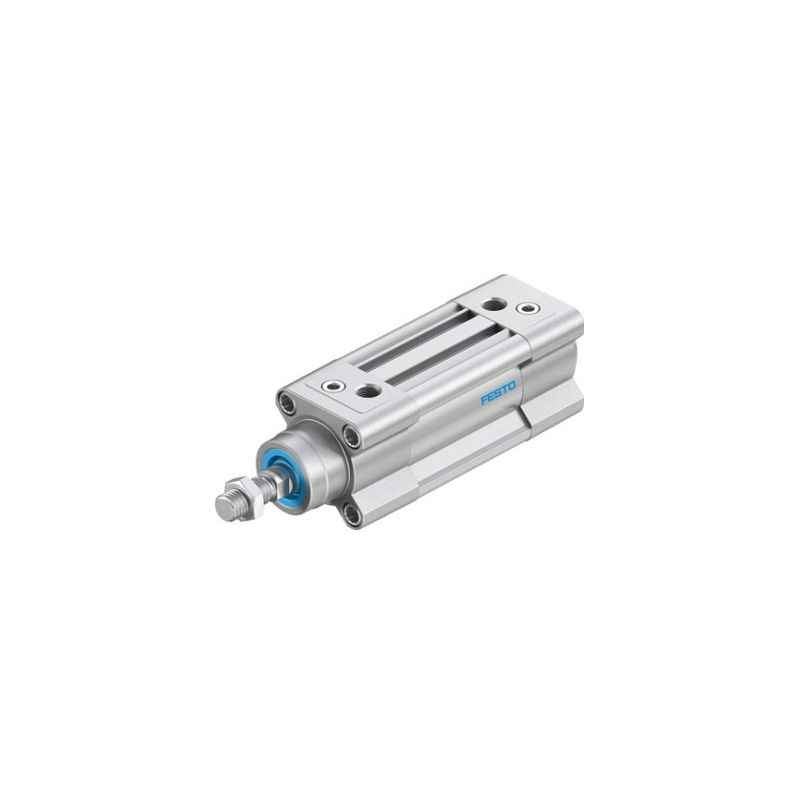

Festo DSBC-50-100-PPV-A-N3 Double Acting Standard-Based Cylinder, 1366952

Name: Festo DSBC-50-100-PPV-A-N3 Double Acting Standard-Based Cylinder, 1366952
Brand: Festo
SKU: MSN2VDXTHZBPXR
Price: 9414 INR
Availability: OutOfStock

₹4,707 (Incl. of all taxes)

₹3,989 + ₹718 GST

MRP ₹8,876 46% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Festo
Ambient Temperature	-20 to 80 Deg C
Bore Diameter	50 mm
Connection Thread	M16x1.5
Cushioning	Pneumatic cushioning, adjustable at both ends
Item Code	DSBC-50-100-PPV-A-N3
Items in Pack	1 Piece
Mounting type	Via Internal Thread/Accessories
Notes	Product once sold will not be returned Box Opening Video will be Required for any Type of Exchange
Operating Mode	Double Acting
Operating Pressure	0.4-12 bar
Part Number	1366952
Port Size	G1/4
Position Sensing	Via Proximity Sensor
Series	DSBC
Standard	ISO 15552 (ISO 6431, VDMA 24562)
Stroke	100 mm
Theoretical Force	1178 N
Country of origin	India
Manufacturer Details	Festo India Private Limited, 130, T Block, MIDC, Bhosari, Pune, Maharashtra, 411026-India, Phone: +91 1800 121 0036, Email: festo_didactic@festo.com
Packer Details	Festo India Private Limited, 130, T Block, MIDC, Bhosari, Pune, Maharashtra, 411026-India, Phone: +91 1800 121 0036, Email: festo_didactic@festo.com
Common/Generic Name	Pneumatic Cylinders
Dimensions LxWxH	243.1x75x75 mm
Weight	42 g

Show All Specifications

Product Details

Introducing the Festo DSBC-50-100-PPV-A-N3 Double Acting Standard-Based Cylinder, a top-of-the-line pneumatic cylinder designed for efficiency and reliability. This cylinder operates in a double-acting mode, conforming to Standard ISO 15552 (ISO 6431, VDMA 24562). With a convenient Via Internal Thread/Accessories mounting type and a Part Number of 1366952, this cylinder is a must-have for any industrial application. The Port Size is G1/4, with Pneumatic cushioning that is adjustable at both ends for smooth operation. Please note that once the product is sold, it cannot be returned. Upgrade your pneumatic system with the Festo DSBC-50-100-PPV-A-N3 today.
