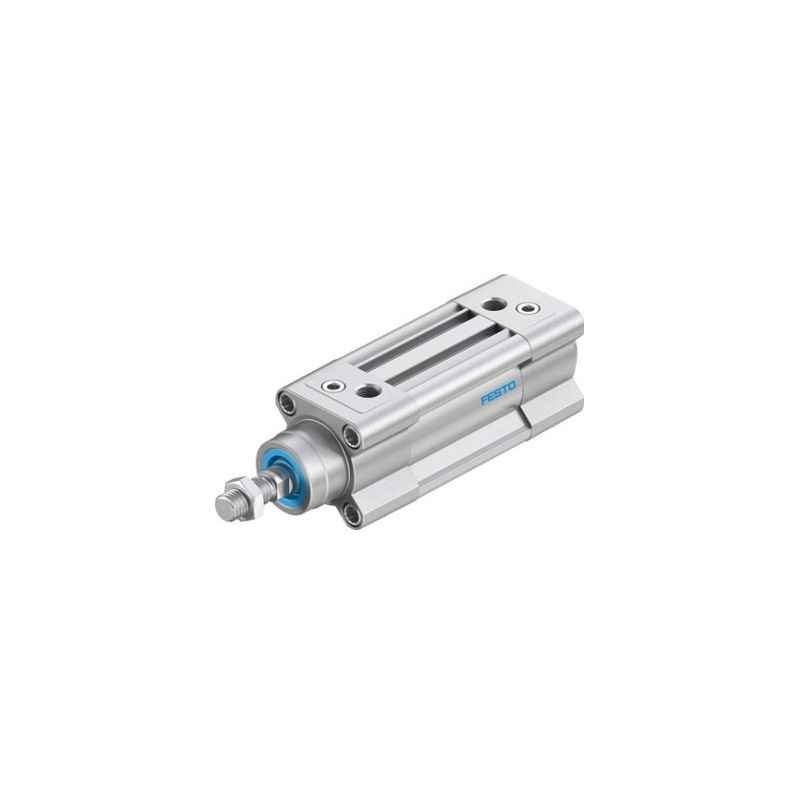

Festo DSBC-50-25-PPV-A-N3 Double Acting Standard-Based Cylinder, 1366948

Name: Festo DSBC-50-25-PPV-A-N3 Double Acting Standard-Based Cylinder, 1366948
Brand: Festo
SKU: MSN2VE9AXU867L
Price: 9798 INR
Availability: OutOfStock

₹4,899 (Incl. of all taxes)

₹4,152 ₹747 GST

MRP ₹8,466 42% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Festo
Ambient Temperature	-20 to 80 Deg C
Bore Diameter	50 mm
Connection Thread	M16x1.5
Cushioning	Pneumatic cushioning, adjustable at both ends
Item Code	DSBC-50-25-PPV-A-N3
Items in Pack	1 Piece
Mounting type	Via Internal Thread/Accessories
Notes	Product once sold will not be returned Box Opening Video will be Required for any Type of Exchange
Operating Mode	Double Acting
Operating Pressure	0.4-12 bar
Part Number	1366948
Port Size	G1/4
Position Sensing	Via Proximity Sensor
Series	DSBC
Standard	ISO 15552 (ISO 6431, VDMA 24562)
Stroke	25 mm
Theoretical Force	1178 N
Country of origin	India
Manufacturer Details	Festo India Private Limited, 130, T Block, MIDC, Bhosari, Pune, Maharashtra, 411026-India, Phone: +91 1800 121 0036, Email: festo_didactic@festo.com
Packer Details	Festo India Private Limited, 130, T Block, MIDC, Bhosari, Pune, Maharashtra, 411026-India, Phone: +91 1800 121 0036, Email: festo_didactic@festo.com
Common/Generic Name	Pneumatic Cylinders
Dimensions LxWxH	40x12.8x12.6 cm
Weight	42 g

Show All Specifications

Product Details

Festo DSBC-50-25-PPV-A-N3 Double Acting Standard-Based Cylinder, 1366948 is a premium quality product from Festo . Moglix is a well-known ecommerce platform for qualitative range of Pneumatic Cylinders. All Festo DSBC-50-25-PPV-A-N3 Double Acting Standard-Based Cylinder, 1366948 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Festo DSBC-50-25-PPV-A-N3 Double Acting Standard-Based Cylinder, 1366948, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Festo products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Festo Pneumatic Cylinders .
