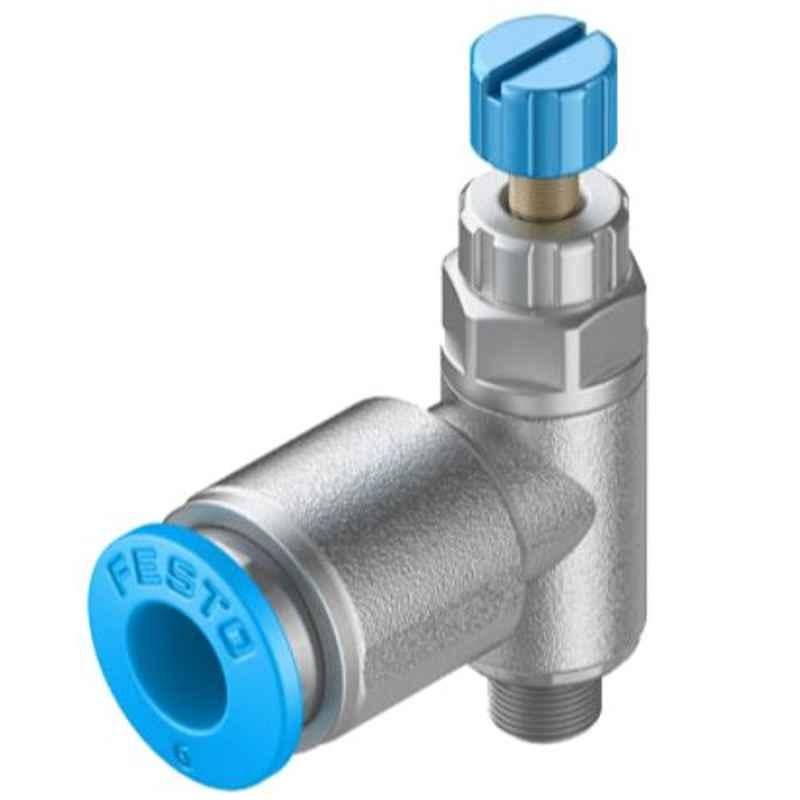

Festo GRLA-M5-QS-6-RS-D One-Way Flow Control Valve, 197578

AVAILABLE ON REQUEST

About This Product

Key Features

Adjusting Element: Knurled Screw.
Operating Medium: Compressed Air in Accordance with ISO8573-1:2010 [7:4:4].
Note on Operating & Pilot Medium: Lubricated Operation Possible (Subsequently Required for Further Operation).

Product Specifications

Brand	Festo
Ambient Temperature	-10 to 60 deg C
Connection	Pneumatic Port 1: QS-6 Pneumatic Port 2: M5
Flow Rate	Standard Nominal: 115 L/min (Flow Control Direction) Standard Nominal: 70-110 L/min (Non-Return Direction) Direction of Flow Control: 6 -> 0 bar: 185 L/min (Standard) Blocked Direction: 6->0 bar: 145-170 L/min (Standard)
Function	Valve: One-Way Flow Control Function for Exhaust Air
Items in Pack	1 Piece
Material	Threaded Plug: Brass Seals: NBR Release Ring: POM Adjusting Screw: High Alloy Steel & Non-corrosive Swivel Fitting: Zinc Die-Casting Chromed
Model	GRLA-M5-QS-6-RS-D
Mounting type	Threaded
Notes	Product once sold will not be returned
Operating Pressure	0.2 to 10 bar
Part Number	197578
Standards	Conforms to RoHS
Temperature	Medium: -10-60 deg C
Torque	Nominal Tightening: 0.8 Nm
Weight	14 g
Weight	14 g

Show All Specifications

Product Details

Festo GRLA-M5-QS-6-RS-D One-Way Flow Control Valve, 197578 is a premium quality product from Festo . Moglix is a well-known ecommerce platform for qualitative range of Pneumatic Control Valve. All Festo GRLA-M5-QS-6-RS-D One-Way Flow Control Valve, 197578 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Festo GRLA-M5-QS-6-RS-D One-Way Flow Control Valve, 197578, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Festo products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Festo Pneumatic Control Valve .
