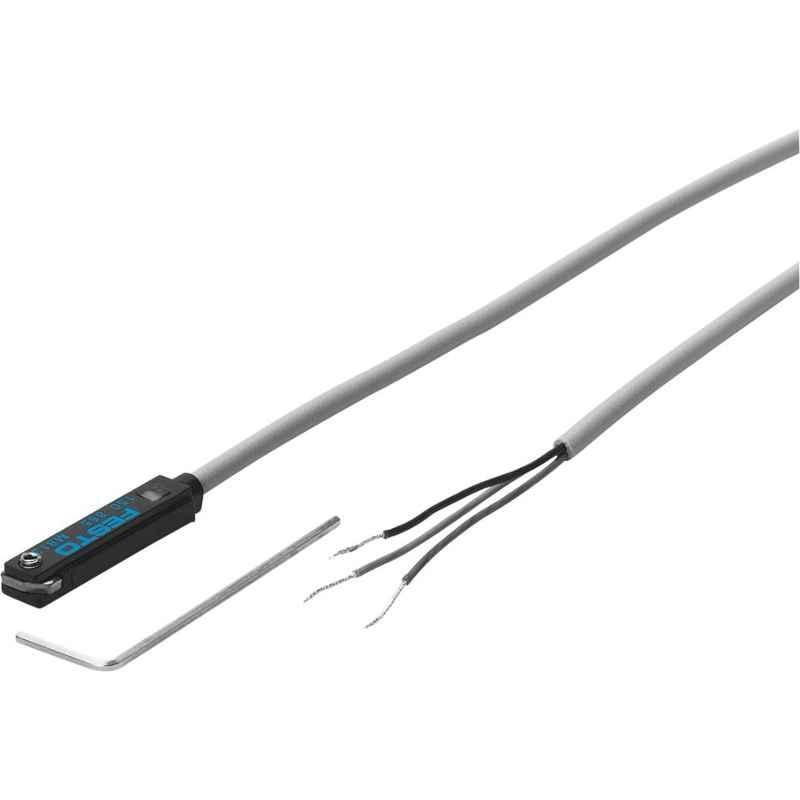

Festo SME-8-K-LED-24 N/O Contact Proximity Sensor for T-Slot, 150855, Cable Length: 2.5 m

Name: Festo SME-8-K-LED-24 N/O Contact Proximity Sensor for T-Slot, 150855, Cable Length: 2.5 m
Brand: Festo
SKU: MSN2QREQBLKJ73
Price: 2229 INR
Availability: OutOfStock

₹2,229 (Incl. of all taxes)

₹1,888 ₹341 GST

MRP ₹3,142 29% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Reproducibility of Switching Value: ±0.1 mm.
Switch-on Time: Greater than equals to 0.5 ms.
Switch-off Time: Greater than equals to 0.03 ms.
Max. Switching Frequency: 800 Hz.
Max. Switching Capacity (AC): 10 VA.
Max. Switching Capacity (DC): 10 W.
Voltage Drop: 0 V.
Protection Against Short Circuit: No.
Reverse Polarity Protection: No.
Connection Direction: In-line.
Cable Sheath Materials: TPE-U (PUR).
Insulation Voltage: 50 V.
Surge Resistance: 3 kV.
Degree of Contamination: 3.

Show All Key Features

Product Specifications

Brand	Festo
Ambient Temperature	-40 to 60 deg C with Flexible Cable Installation: -5 to 60 deg C
Cable Length	2.5 m
Degree of Protection	IP65 IP67
Design	For T-Slot
Housing Material	Epoxy Resin PC PET High-alloy Stainless Steel
Item Code	SME-8-K-LED-24
LED Indicator Display	Yellow
Measuring Principle	Magnetic Reed
Mounting type	Clamped in T-slot Insertable in the slot lengthwise
Notes	Product once sold will not be returned
Number of Wires	3
Operating Voltage Range	12-30 V AC/DC
Output	Switching: Contacting, Bipolar
Output Current	Max: 500 mA
Overload Protection	No
Part Number	150855
Series	SME-8
Standard	EN 60947-5-2
Country of origin	India
Manufacturer Details	Festo India Private Limited, 130, T Block, MIDC, Bhosari, Pune, Maharashtra, 411026-India, Phone: +91 1800 121 0036, Email: festo_didactic@festo.com
Packer Details	Festo India Private Limited, 130, T Block, MIDC, Bhosari, Pune, Maharashtra, 411026-India, Phone: +91 1800 121 0036, Email: festo_didactic@festo.com
Common/Generic Name	Proximity Sensor
Weight	8.9 g

Show All Specifications

Product Details

The Festo SME-8-K-LED-24 N/O Contact Proximity Sensor is a high-quality sensor designed for use in the Proximity Sensors category. Manufactured by Festo, a trusted brand in the industry, this sensor offers reliable operation and excellent performance. With a switching output that allows for contacting and bipolar functionality, it ensures precise detection and control of objects. The sensor features a cable length of 2.5 m, providing flexibility in installation. With three wires, it offers advanced functionality and compatibility. Built to meet the standard EN 60947-5-2, this sensor guarantees safety and compliance. The maximum output current of 500 mA ensures optimal operation. With its clamped-in T-slot mounting type, the sensor can be easily installed in a variety of applications. Its part number is 150855, making identification and ordering hassle-free.
