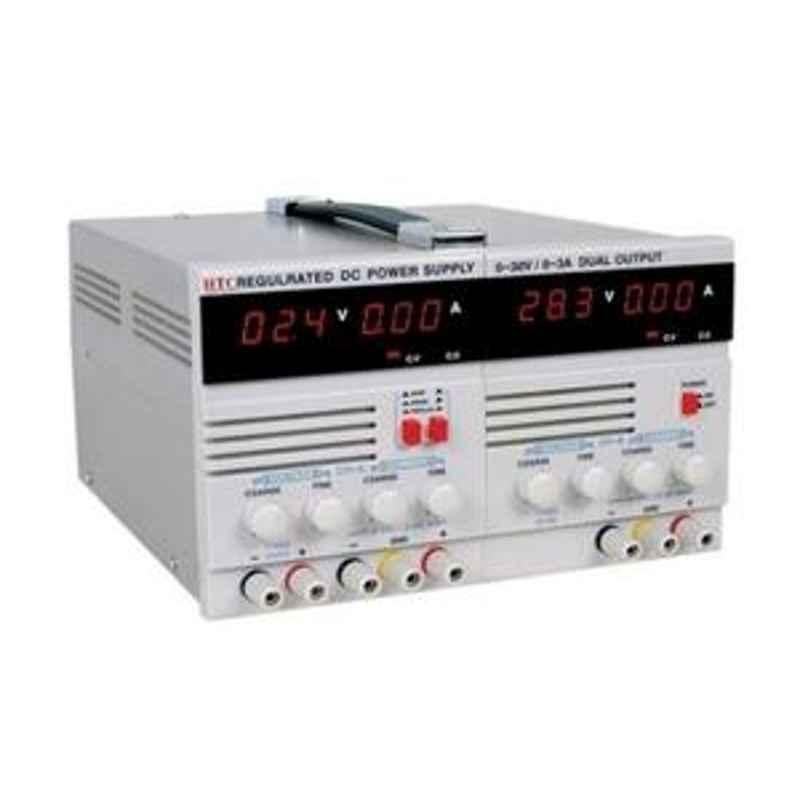

HTC 30 V 3 A Dual Output DC Regulated Power Supply DC-3003-II

₹8,369 (Incl. of all taxes)

₹7,092 ₹1,277 GST

MRP ₹10,838 22% OFF

AVAILABLE ON REQUEST

Moglix Insights

HTC is top brand in dc power supply, preferred by 68% of the users

38% of the users prefer dc power supply in ₹8000-9000 price range

About This Product

Key Features

DC Regulated Power Supply is an easy to use, low ripple high regulation precision instrument..
It is particularly suitable for experimental development and low voltage applications..
Its unique feature is over load protection, which makes it a safe power source for testing of electronic equipment..
The power supply's output is floating i.e., either the positive or negative output is connected to the chasis or ground..
Thus the power supply may be used as a positive or negative DC source by grounding -ve or +ve terminal respectively..

Show All Key Features

Product Specifications

Brand	HTC
Accuracy	≤0.5% +1 Digit
Customer Care Number	2222 01 6969
Dimensions	240x150x270 mm
Fixed Output	5 V / 2 A
Includes	Power Cord, Instruction Manual, Test Cord
Line Regulation CC	≤0.2% +3 mA
Line Regulation CV	≤0.01% +3 mV
Load Regulation CC	≤0.2% +3 mA
Load Regulation CV	≤0.01% +3 mV
Max. Output Current Range	0-3 A
Max. Output Voltage Range	16-30 V
Model No	DC-3003-II
No. of Output	Dual Output
Output Current	0-3 A
Output Voltage	0-30 V
Power Supply	220 V ± 10% AC , 50Hz ± 2Hz
Protection	Constant current and Short-circuit protection
Ripple And Noise	≤1 mV(RMS) / ≤3 mA(RMS)
Type of Product	DC Regulated Power Supply
Common/Generic Name	Regulated Power Supply
Dimensions LxWxH	240x150x270 mm
Weight	13 g

Show All Specifications

Product Details

HTC 30 V 3 A Dual Output DC Regulated Power Supply DC-3003-II is a premium quality product from HTC . Moglix is a well-known ecommerce platform for qualitative range of DC Power Supply. All HTC 30 V 3 A Dual Output DC Regulated Power Supply DC-3003-II are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture HTC 30 V 3 A Dual Output DC Regulated Power Supply DC-3003-II, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. HTC products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of HTC DC Power Supply .
