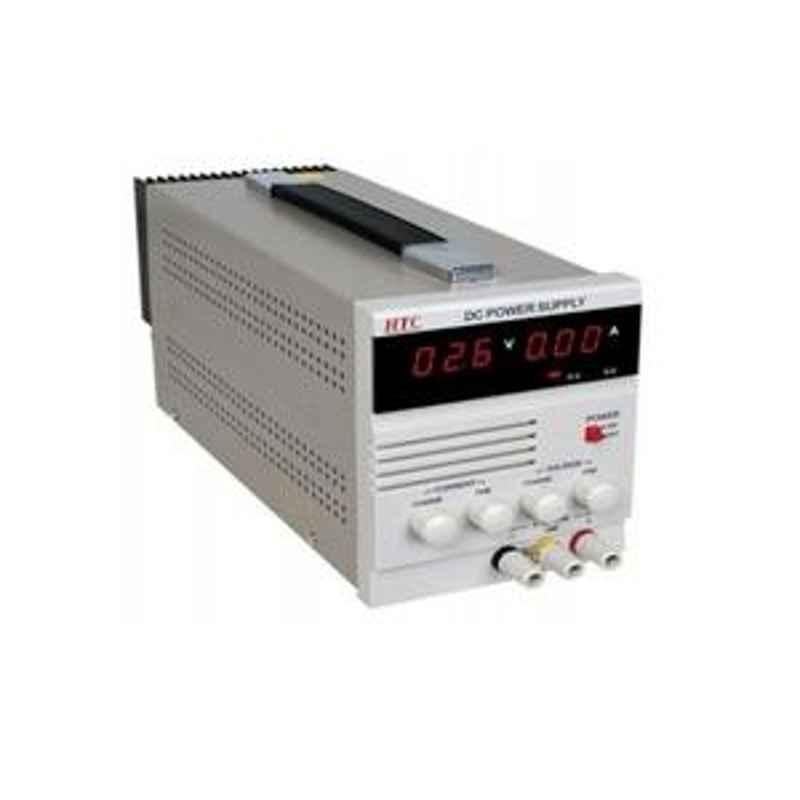

HTC 30 V 3 A Single Output DC Regulated Power Supply DC-3003

₹4,719 (Incl. of all taxes)

₹3,999 ₹720 GST

MRP ₹5,906 20% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

DC Regulated Power Supply is an easy to use, low ripple high regulation precision instrument..
It is particularly suitable for experimental development and low voltage applications..
Its unique feature is over load protection, which makes it a safe power source for testing of electronic equipment..
The power supply's output is floating i.e., either the positive or negative output is connected to the chasis or ground..
Thus the power supply may be used as a positive or negative DC source by grounding -ve or +ve terminal respectively..

Show All Key Features

Product Specifications

Brand	HTC
Accuracy	≤0.5% +1 Digit
Customer Care Number	2222 01 6969
Dimensions	120x150x270 mm
Includes	Power Cord, Instruction Manual, Test Cord
Line Regulation CV	≤0.01% +3 mV
Load Regulation CV	≤0.001% +3 mV
Max. Output Current Range	0-3 A
Max. Output Voltage Range	16-30 V
Model No	DC-3003
No. of Output	Single Output
Output Current	0-3 A
Output Voltage	0-30 V
Power Supply	220 V ± 10% AC , 50Hz ± 2Hz
Protection	Constant current and Short-circuit protection
Ripple And Noise	≤1 mV(RMS)
Type of Product	DC Regulated Power Supply
Common/Generic Name	Regulated Power Supply
Dimensions LxWxH	150x111x88 mm
Weight	400 g

Show All Specifications

Product Details

HTC 30 V 3 A Single Output DC Regulated Power Supply DC-3003 is a premium quality product from HTC . Moglix is a well-known ecommerce platform for qualitative range of DC Power Supply. All HTC 30 V 3 A Single Output DC Regulated Power Supply DC-3003 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture HTC 30 V 3 A Single Output DC Regulated Power Supply DC-3003, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. HTC products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of HTC DC Power Supply .
