HTC DM-87 Digital Multimeter AC Voltage Range 0.1mV to 750V DM to 87

₹7,289 (Incl. of all taxes)

₹6,177 ₹1,112 GST

MRP ₹7,723 5% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

4½ Digital Multimeter.
VSD & diode Test..
Large LCD display makes reading clear.
No Power-OFF under natural operation.
Data Hold, Max. / Min. Value Hold.
Capacitance, Frequency / Duty Cycle,Temperature and Transistor Test.
750 V (± 2 % + 10).
Diode Test.
Continuity Buzzer.
Anti Shock Protection .
hFE Test.
10 Ω.
3 times per second.
Low Battery Display .
Auto Power OFF.
Function Protection .
40-400 Hz.

Show All Key Features

Product Specifications

Brand	HTC
AC Current Accuracy	±(1.5% + 20digit)
AC Current Range	0.1µA - 20 A
AC Voltage Accuracy	±(0.8%+10)
AC Voltage Range	0.1mV to 750 V
Capacitance Accuracy	±(2.5% + 5digit)
Capacitance Range (F)	10pF - 2000 µF
Continuity Buzzer	Approx. < 30Ω ±10Ω
Customer Care Number	2222 01 6969
DC Current Accuracy	±(1.0% + 10digit)
DC Current Range (Amp)	0.1µA - 20 A
DC Voltage Accuracy	±(0.5% + 4digit)
DC Voltage Range	0.1mV - 1000 V
Dimensions	185X93X35 mm
Display	4½ digit LCD Display
Frequency Accuracy	±(0.5% + 4digit)
Frequency Range (Hz)	0-30 MHz

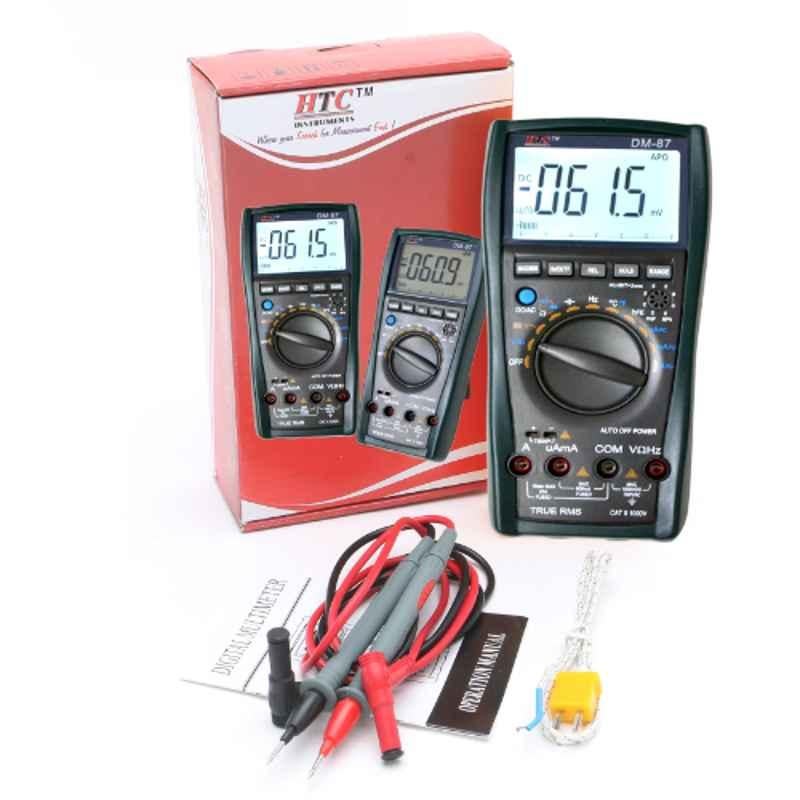

Includes	Tests Leads , Battery , Manual , TP 01 Temperature Probe , Crocodile Clip
Model No	DM-87
Power Input	9V (6F22)
Resistance Accuracy	±(0.8% + 3digit)
Resistance Range (Ohm)	0.1Ω - 30 MΩ
Sensing	True RMS
Temperature Accuracy	±(0.8% + 4digit)
Temperature Range(C)	-40°- 1000°C
Type	Digital
Type of Product	Digital Multimeter
Common/Generic Name	Digital Multimeter
Dimensions LxWxH	185x93x35 mm
Weight	217 g

Show All Specifications

Product Details

The HTC DM-87 Digital Multimeter AC Voltage Range 0.1mV to 750V DM to 87 is one of the best selling products in the market. This device gives you accurate reading, helping you measure the electric supply. Well with this product you can measure voltage, current, and resistance of a circuit. The other name for this device is volt-ohm-milliammeter. This multimeter can be used to measure batteries, household wirings, electric motors and power supplies.
