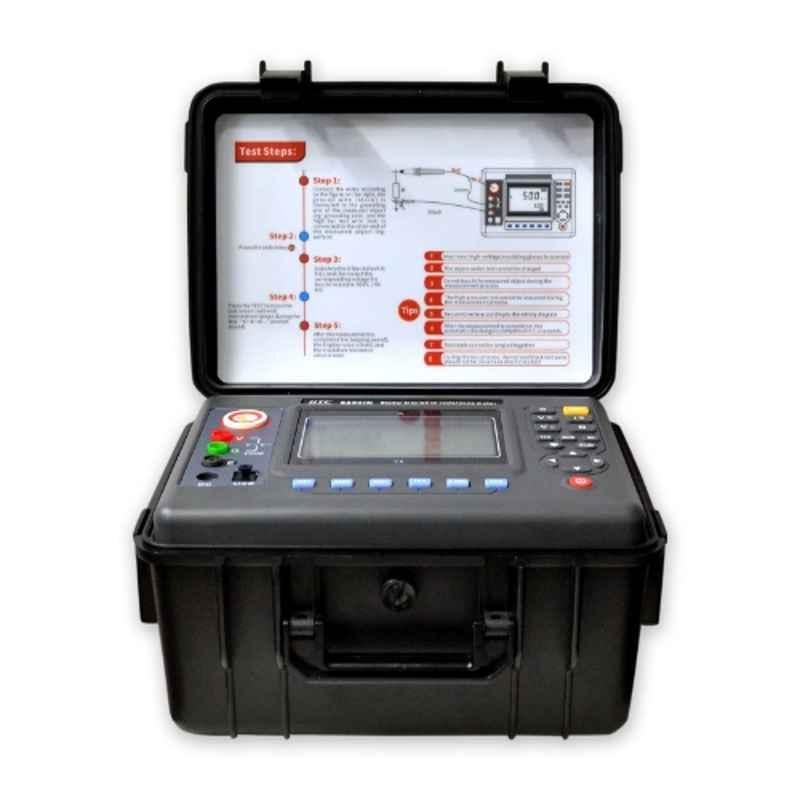

HTC HTC-8251 5-10kV Digital Insulation Resistance Meter

HTC HTC-8251 5-10kV Digital Insulation Resistance Meter

Hover to Zoom

HTC HTC-8251 5-10kV Digital Insulation Resistance Meter

₹62,999 (Incl. of all taxes)

₹53,388 + ₹9,611 GST

MRP ₹66,199 4% OFF

Buy More & Save More

Qty 2

₹62,526 /pc

5% OFF

Qty 3

₹62,290 /pc

5% OFF

Qty 4 - 5

₹62,054 /pc

6% OFF

Qty 6 - 7

₹61,581 /pc

6% OFF

Qty 8+

₹61,109 /pc

7% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.

Get at

₹62,899

with Coupon & Offers

Extra ₹100 OFF

All Coupons & Offers

India’s Leading B2B Online Store

4.7

google_logo Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

Money Back

Genuine Product

Easy Return

Get GST Invoice

Secure Payments

365 Days Help Desk

About This Product

Key Features

High Voltage Indication.
Polarization Index & Dielectric Absorption.
Auto Power Off (APO 15 min) & USB Interface.
Function: Insulation Resistance Test, Voltage Test, Current Test & Capacitance Test.

Show All Key Features

Product Specifications

Brand	HTC
Accuracy	±3%rdg±5dgt
Insulation Resistance	≥50 MΩ (between Measuring Line and Housing)
Model	HTC-8251
Package Contents	Meter, Red High Voltage Bar, Black High Voltage Test Line, Green High Voltage Test Line, Monitoring Software CD, USB Communication Line USB, Charger, Manual, Certificate & Instrument Box
Power Consumption	Standby: 30 mA Max (Backlight off) Turn on Backlight: 42 mA Max Measure: 200 mA Max (Backlight off)
Rated Voltage	5-10 kV
Resolution	0.01 MΩ
Standards	IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529(IP54) Pollution Grade 2 & CAT IV 600V
Storage Temperature	-10 to 55 deg C
Working Temperature	-10 to 50 deg C
Country of origin	India
Manufacturer Details	Hazari Tech Connect Pvt Ltd, Hazari House, 197-201 Cowasji Hormusji Street, Dhobi Talao, Kalbadevi, Mumbai - 400002
Packer Details	Hazari Tech Connect Pvt Ltd, Hazari House, 197-201 Cowasji Hormusji Street, Dhobi Talao, Kalbadevi, Mumbai - 400002
Common/Generic Name	Resistance Meter
Dimensions LxWxH	50.5x34.5x34.5 cm
Weight	2.72 kg

Show All Specifications

Product Details

Introducing the HTC HTC-8251 5-10kV Digital Insulation Resistance Meter, the perfect tool for all your insulation testing needs. This high-quality instrument falls under the category of Insulation Testers, ensuring accurate and reliable results for your electrical insulation testing requirements.

With the working temperature range of -10 to 50 degrees Celsius, the HTC HTC-8251 is suitable for use in various environments. Its power consumption on standby is a mere 30 mA, making it energy-efficient when the backlight is turned off.

The model HTC-8251 complies with international standards IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529(IP54) Pollution Grade 2, and CAT IV 600V. Feel confident in its precision and safety features.

For convenient storage and transportation, the storage temperature range is -10 to 55 degrees Celsius. This insulation resistance meter boasts an impressive insulation resistance of ≥50 MΩ between the measuring line and housing.

The package includes the meter itself, a red high voltage bar, a black high voltage test line, a green high voltage test line, monitoring software CD, a USB communication line, a charger, a comprehensive manual, a certificate, and an instrument box.

Invest in the HTC HTC-8251 5-10kV Digital Insulation Resistance Meter from the trusted brand HTC, and experience reliable and accurate insulation testing like never before.

Browse through the extensive list of Insulation Testers at Moglix. Shop online for other HTC Insulation Testers. available at Moglix in the lowest price range.
